[NKBassman]

That's kind of the idea behind the input level control, you can dial it in for either one. It definitely sounds better with a preamp in front, just the power amp sim and IR without a preamp feels a little lacking.

Also, further to my question above, your pedal preamps all seem capable of providing a nice sounding instrument level output (ie. unity level with the input signal), with enough volume on tap to hit line level if you wanted. Some of my standalone preamps (Broughton P15 for example) are limited to line level output only and can't be brought down to unity input level (instrument level) without affecting the tone (it's master volume only with no gain control). It would be great if the Gondwana could accept a hot line level signal without overdriving. Maybe a switchable pad on the input wouldn't be a bad thing.

Another example of this would be if you wanted to run an output from an amp FX loop send into the Gondwana, then out to a DI and to the board.



[SemiDriven]

Also, further to my question above, your pedal preamps all seem capable of providing a nice instrument level output (ie. unity level with the input signal), with enough volume on tap to hit line level if you wanted. Some of my standalone preamps (Broughton P15 for example) are limited to line level output only and can't be brought down to unity input level (instrument level) without affecting the tone (it's master volume only with no gain control). It would be great if the Gondwana could accept a hot line level signal without overdriving. Maybe a switchable pad on the input wouldn't be a bad thing.

Another example of this would be if you wanted to run an output from an amp FX loop send into the Gondwana, then out to a DI and to the board.

Good idea.

[start of digression]

I can't imagine what part of the kitchen sink Nathan has to leave out of his designs so that the appeal to the masses fits within said masses' budget constraints.

Pullin' for Sushi Box! May you be wise in your decisions!

Here's to the budget conscious kitchen sink designs!

[/end of digression]



[kevmac]

Reading this makes me very happy. I have a Sunnday Drive incoming, and I cannot wait to hear what it does with my darkstar.

The longer I've had it the more it's grown on me



[4Mal]

@Sushi Box FX said "6L6 tube IR" or words to that effect ... whose ? where ? that sounds interesting as does every other post is this thread...



[Sushi Box FX]

@Sushi Box FX said "6L6 tube IR" or words to that effect ... whose ? where ? that sounds interesting as does every other post is this thread...

The IR loader has built-in power amp emulation with selectable tube (6L6 or EL34) and configuration (single ended or push pull). It's all configurable in the software when it's plugged into USB, along with EQ, compressor, HPF, LPF.



[4Mal]

The IR loader has built-in power amp emulation with selectable tube (6L6 or EL34) and configuration (single ended or push pull). It's all configurable in the software when it's plugged into USB, along with EQ, compressor, HPF, LPF.

oh good lord.. I was joking in a Seattle bass players thread about you having my bank on speed dial... I'm not so sure if that was fiction or fact now...



[Mr. Business]

The IR loader has built-in power amp emulation with selectable tube (6L6 or EL34) and configuration (single ended or push pull). It's all configurable in the software when it's plugged into USB, along with EQ, compressor, HPF, LPF.

DANG!!! Very impressive!



[Sushi Box FX]

DANG!!! Very impressive!

Well I mean, I didn't write the software The IR module itself and the software to configure it is made by AMT Electronics, I just designed the input/output tube stages and the microcontroller that controls the screen and the patch switching. The AMT module plugs into the board I designed.



[Sushi Box FX]

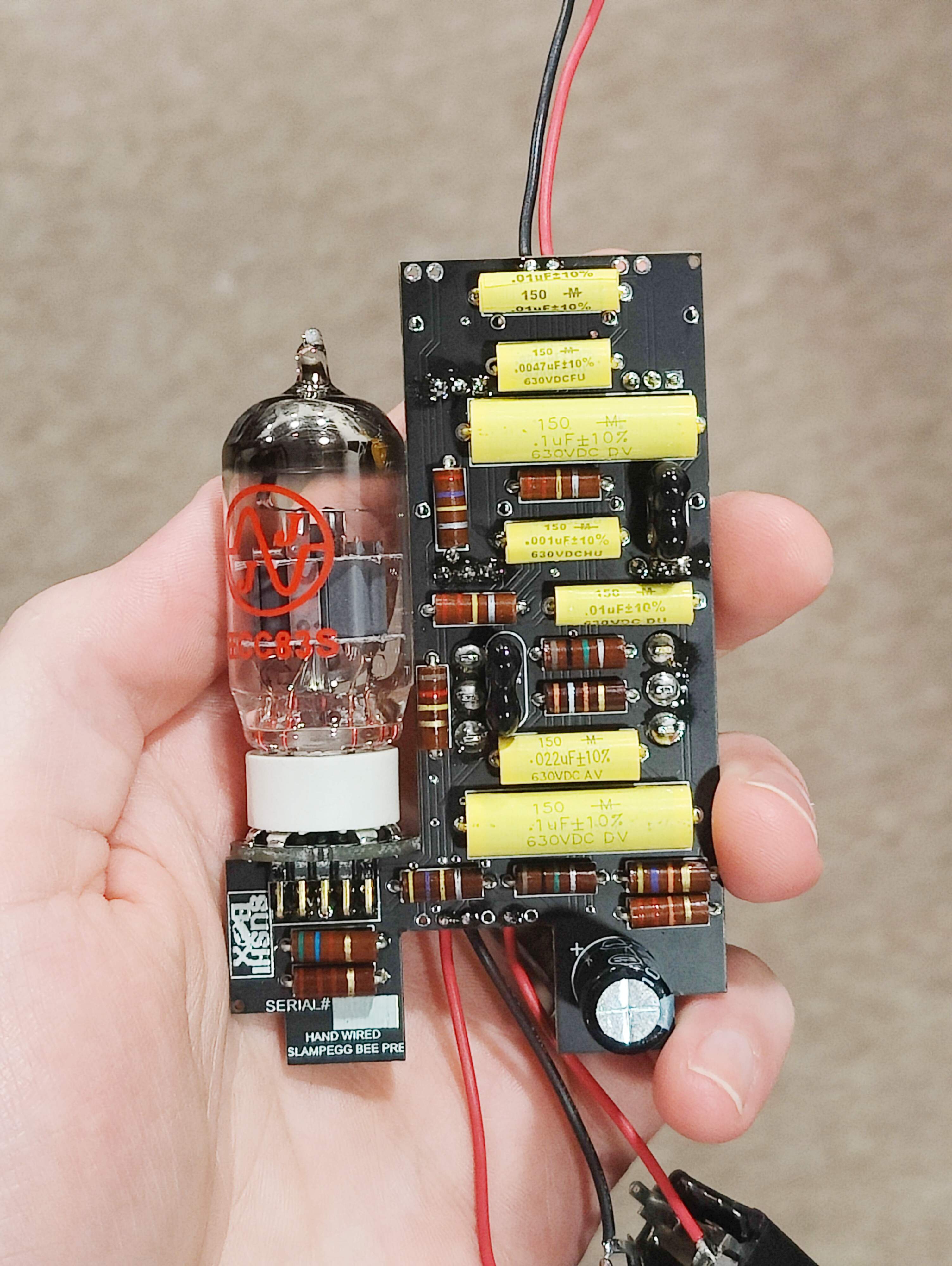

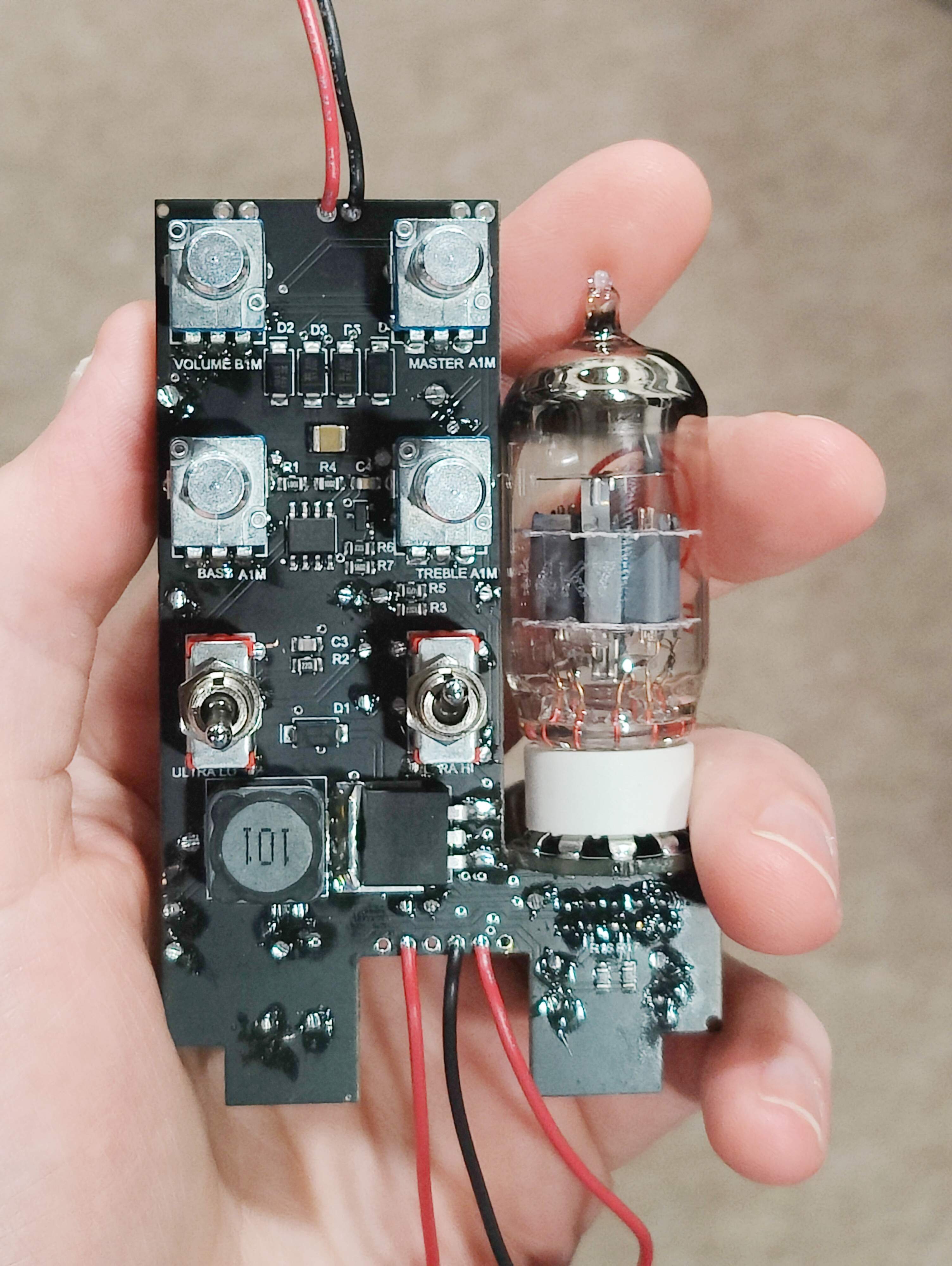

Still waiting on parts to finish up the handwired UA and Finally, but got the Slampegg wired up last night. Sounds freaking incredible, now I want to try a 5751 in it.



[macmanlou]

Still waiting on parts to finish up the handwired UA and Finally, but got the Slampegg wired up last night. Sounds freaking incredible, now I want to try a 5751 in it.

View attachment 4531311 View attachment 4531312

Nice! Does it have the same tone stack as the Slampegg Bee X?



[NKBassman]

Still waiting on parts to finish up the handwired UA and Finally, but got the Slampegg wired up last night. Sounds freaking incredible, now I want to try a 5751 in it.

View attachment 4531311 View attachment 4531312

I haven't tried the Slampegg yet so I have no basis for comparison, but would you say the new handwired version sounds noticeably better?



[Ethereal Thorn]

Still waiting on parts to finish up the handwired UA and Finally, but got the Slampegg wired up last night. Sounds freaking incredible, now I want to try a 5751 in it.

View attachment 4531311 View attachment 4531312

Now just you just need a full blown version with the transformer and tube power stage di



[4Mal]

Hand wired Slampegg X... That looks to be a thing of beauty and I can order one of these when ?



[Sushi Box FX]

Nice! Does it have the same tone stack as the Slampegg Bee X?

Yup, exact same circuit, just different components and higher voltage.

I haven't tried the Slampegg yet so I have no basis for comparison, but would you say the new handwired version sounds noticeably better?

I haven't A/B'd them yet, that will come once I get it in a box, but it sounded very very good to my obviously biased ears.

Now just you just need a full blown version with the transformer and tube power stage di

Yeah, that will take some work and a very big box.

Hand wired Slampegg X... That looks to be a thing of beauty and I can order one of these when ?

I have absolutely no idea. Definitely no sooner than March. I'll get back to you on that one.



[macmanlou]

Yup, exact same circuit, just different components and higher voltage.

Nice! That'll be on my list for '22 for sure.



[jbybj]

“Hand wired Lab Rat!!”
“Hand wired Lab Rat!!”
“Hand wired Lab Rat!!”
“Hand wired Lab Rat!!”



[dedpool1052]

I haven't tried the Slampegg yet so I have no basis for comparison, but would you say the new handwired version sounds noticeably better?

Comparing V1.0 and the hand-wired versions of the Space Heater, the HW is noticeably different.
It sounds bigger, and more articulate.
There's also more available clean gain before it reaches break-up territory.



[Sushi Box FX]

“Hand wired Lab Rat!!”
“Hand wired Lab Rat!!”
“Hand wired Lab Rat!!”
“Hand wired Lab Rat!!”

I'll think about it. No promises.

But I'll think about it.



[Sushi Box FX]

Just finished a tentative layout for handwired Dr. Wattson. It was not very fun, but the ends justify the means.

I'm really glad I'm not rushing to release these new handwired versions as I'm finding mistakes and better ways of doing things, so there will be revisions to at least a couple boards. I think the handwired UA design is good so far, DW is (hopefully) good, Slampegg has 2 things I want to change to be better, and Finally has about 6 I think.

So anyway, thanks everyone for continuing to fund my pedal building addiction



[bonin in the boneyard]

I'd be all over a hand-wired Dr. Wattson!
