It's hard for me to tell the versions apart in the pictures. Possibly there could also be more variations, e.g. cloth with three small rolls, cloth with two small rolls, and cloth with two larger rolls. (In addition most Hi-Fi-type drivers (2231, 2234, 2235 etc) of course used a single roll foam surround).

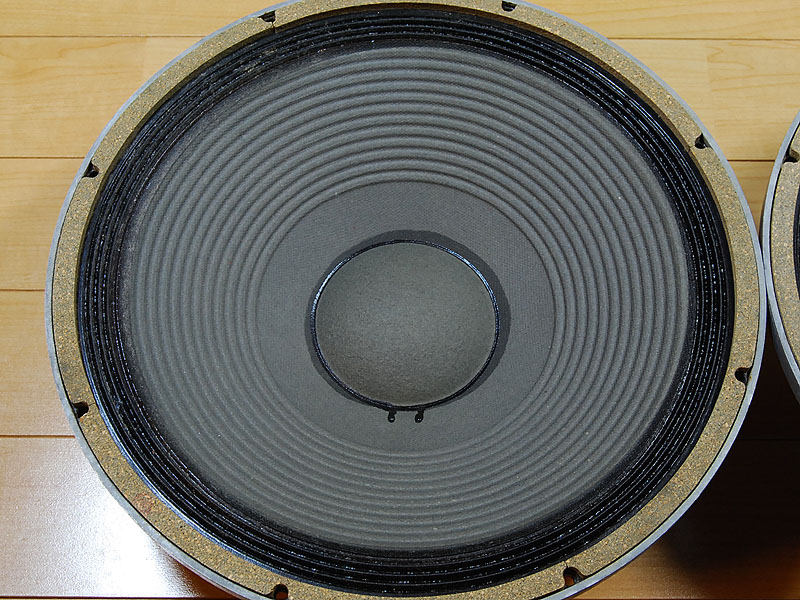

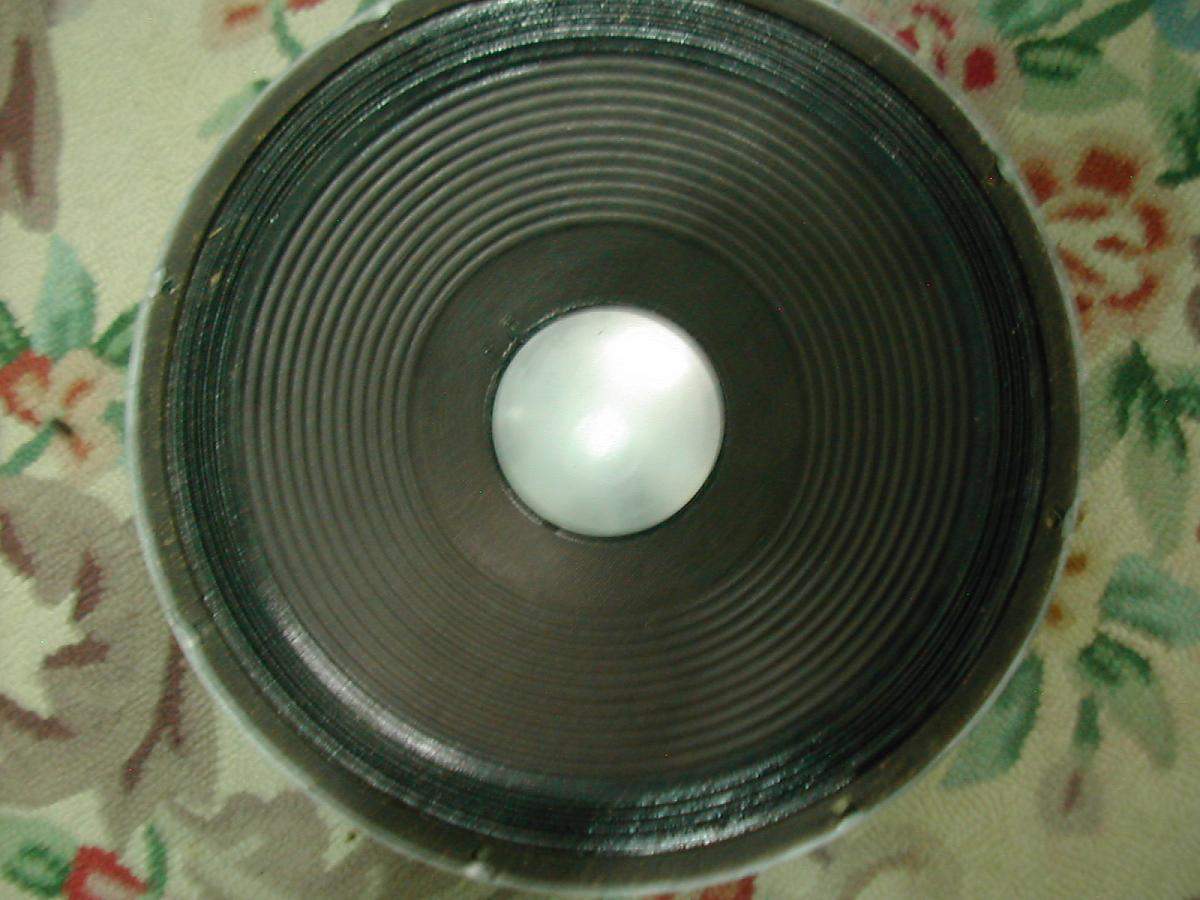

Here's a good pic of what I call "triple-roll" (I don't know the official terminology, if any), since it to my eyes appears to be three peaks in the cloth cross section between the cone edge and the frame rim (most easily seen about 3 o'clock):
I could be wrong, but the drivers in the nice Sunn cab look more like the E140-style (large) dual roll to me, whereas the K140 you show in the opening post looks more like the above. If you find some time to inspect the drivers more closely, possibly even shooting a couple of closeups, it'd be highly appreciated!
Now when you got me all excited about K140:s, I'm going to pay uttermost attention to even the smallest details.
Interesting! That looks close to the one John has and to the pic I posted above AFAICT.

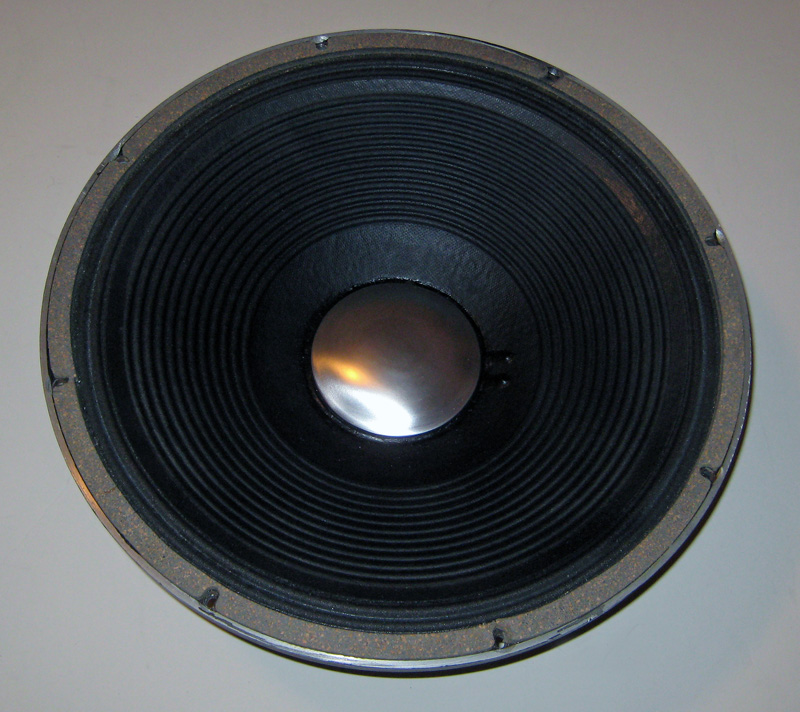

As a contrast, here's the (large) "dual-roll" E140 Google just found for me (guess where -- drumroll -- John's site!):
Ok, I've checked this with an expert, and here's the scope:
The first production years they used the triple pleated accordion style cloth surround in the K:s. However, in 1973 they gradually moved a number of drivers to the type we find in the E:s, the reason being "improved reliability in high power applications". Hence John's nice reference unit is an early sample of the K:s.
Around the same time, they also raised fs for a number of drivers for the same reason. E.g. early 2205:s had fs = 25 Hz but later ones 30 Hz, early 2202:s had 40 Hz, but later 50 Hz. I have no info on the K140:s, but perhaps they were originally as low as 25 Hz, like the 2205:s? It's interesting to note that this trend continued. The successors had even higher fs (2225: 40 Hz, E140: 32 Hz). They traded low end for mid band SPL...
The first production years they used the triple pleated accordion style cloth surround in the K:s. However, in 1973 they gradually moved a number of drivers to the type we find in the E:s, the reason being "improved reliability in high power applications". Hence John's nice reference unit is an early sample of the K:s.
Around the same time, they also raised fs for a number of drivers for the same reason. E.g. early 2205:s had fs = 25 Hz but later ones 30 Hz, early 2202:s had 40 Hz, but later 50 Hz. I have no info on the K140:s, but perhaps they were originally as low as 25 Hz, like the 2205:s? It's interesting to note that this trend continued. The successors had even higher fs (2225: 40 Hz, E140: 32 Hz). They traded low end for mid band SPL...
- Feb 16, 2008
- 21,240
- 23,638
- Disclosures
- John K Custom Basses

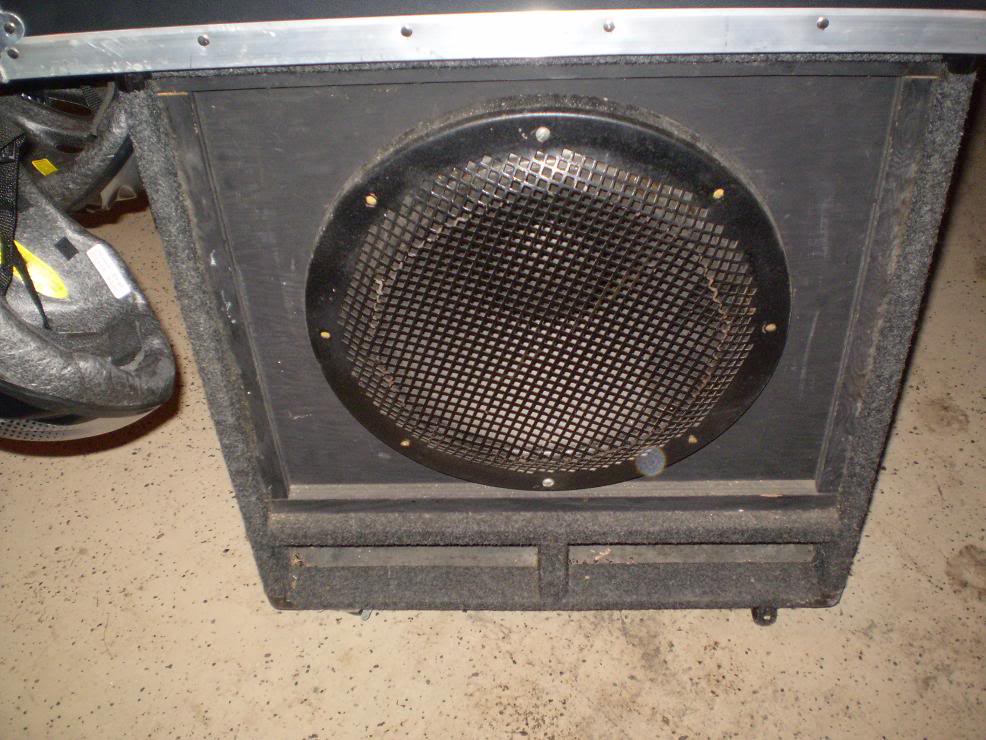

i have one in a sonic cab and it rocks the house down. lip is so big i had to remove the cloth and go with a metal cover....i have had it since early 80's a lower end of my GK 800 RB rig. still sounds great especially with my new svt7 so it may come out of retirement..after a good clean up. with that lip.... Wonder if it would fit in one of my 15s cabs with a blown cts.. right now i have a JBL 2225 in it
If I remember correctly my old black tuck and roll Kustom 2-15 cabinet had JBLs in it. Don't recall the speaker model number but it kicked major butt. That cabinet used to fit in the trunk of my dad's '68 Impala with room left to spare. Ah...the good ole' days.
You guys don't know how badly I want a 215 with two D140's in it. I loved my E140 TL606 cab but from John's samples, I think I'd prefer the D140 by a slim margin. The K is sweet, but not the tone I'm looking for in my head. I like mids.
Yup...back when bass cabs were bass cabs, cars were real cars and could haul them, men were men, and sheep were scared...
- Feb 16, 2008
- 21,240
- 23,638
- Disclosures
- John K Custom Basses
You guys don't know how badly I want a 215 with two D140's in it. I loved my E140 TL606 cab but from John's samples, I think I'd prefer the D140 by a slim margin. The K is sweet, but not the tone I'm looking for in my head. I like mids.
IME, the D's and K's sound nearly identical but the K's have the advantage of handling more power.
Here is one for you. When I first started gigging I was playing keys. I believe I could fit a Fender Rhodes AND a Peavey 215 cab in the trunk of my grandparents' 1965 (I think... the big square one) Buick Electra 225. Hilarious when you think about it.
The K sounded a wee bit darker to my ear the other day I thought... oh well! I'll trust your ears and experience on your amp!
- Feb 16, 2008
- 21,240
- 23,638
- Disclosures
- John K Custom Basses

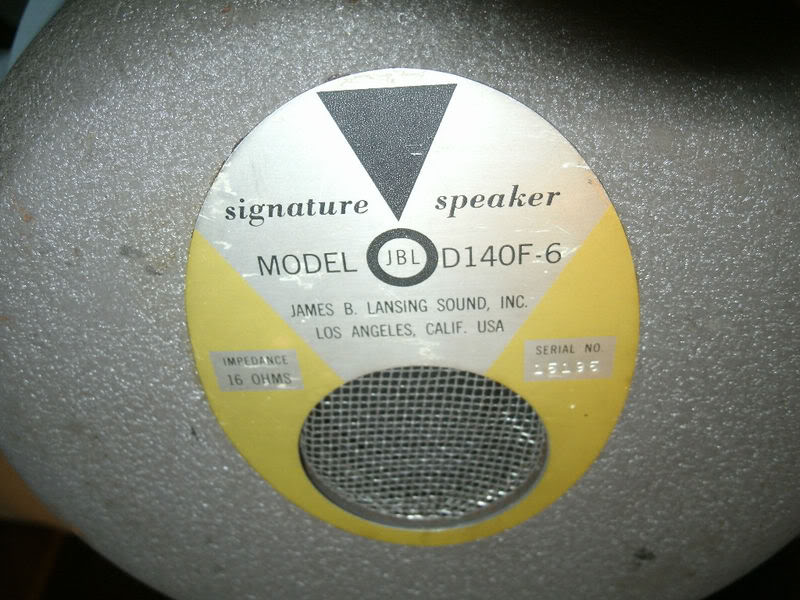

The "F" series were modifications to the venerable all purpose D series driver to help them hold up better to the stresses and varied environmental conditions imposed upon the drivers when manufacturers (mainly Fender) started putting them in guitar amps.
