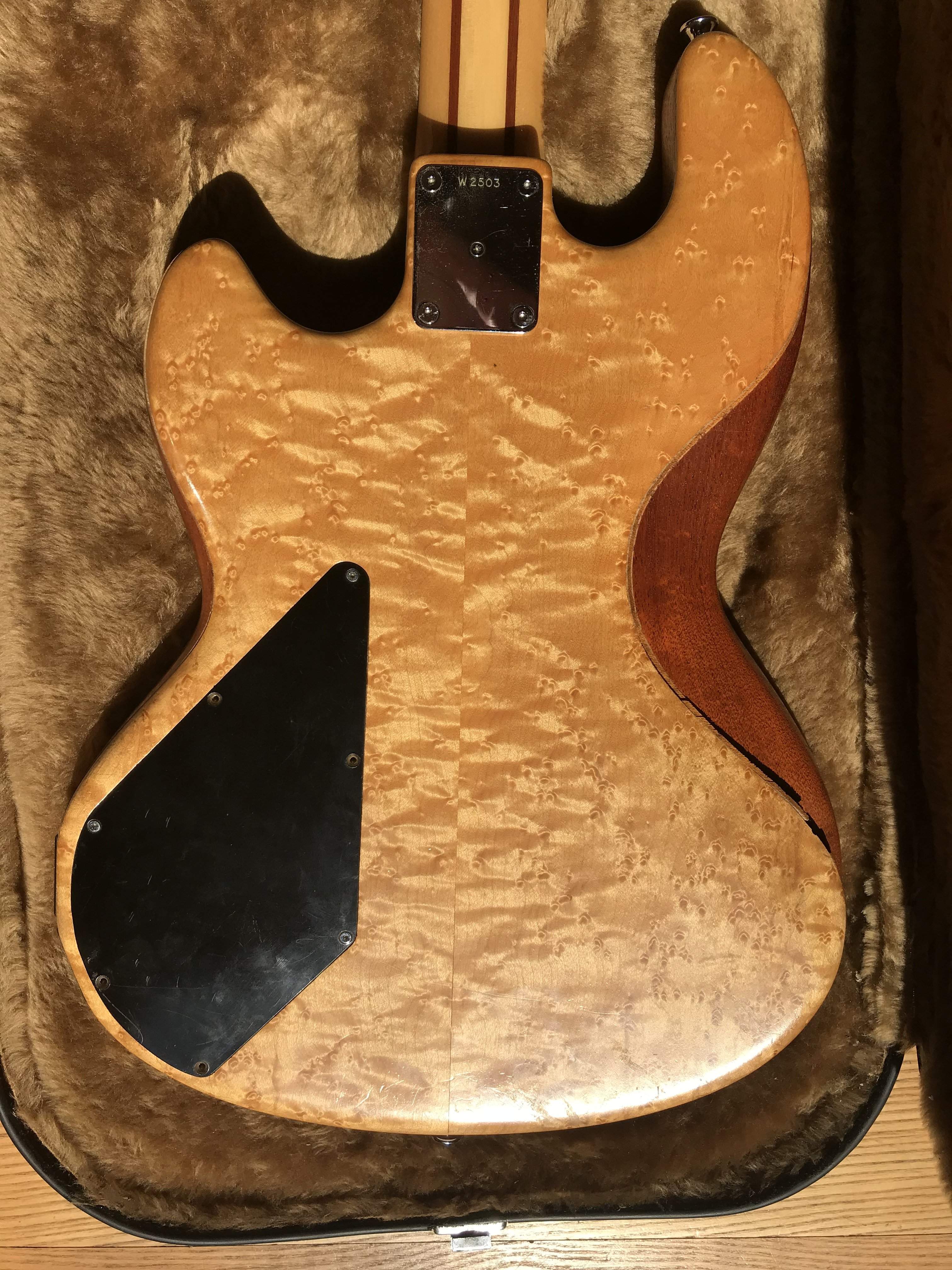

Hello gents, I thought I’d share some pics of my new (to me) Mk. 1 - meet W2503 from good ol’ 1985. Brazilian mahogany core, birdseye maple (Canadian) facings, and Indian rosewood fingerboard. She’s going to require some serious work, to be sure, but if the facings can be salvaged (and I think they can), this will be a project well worth undertaking.

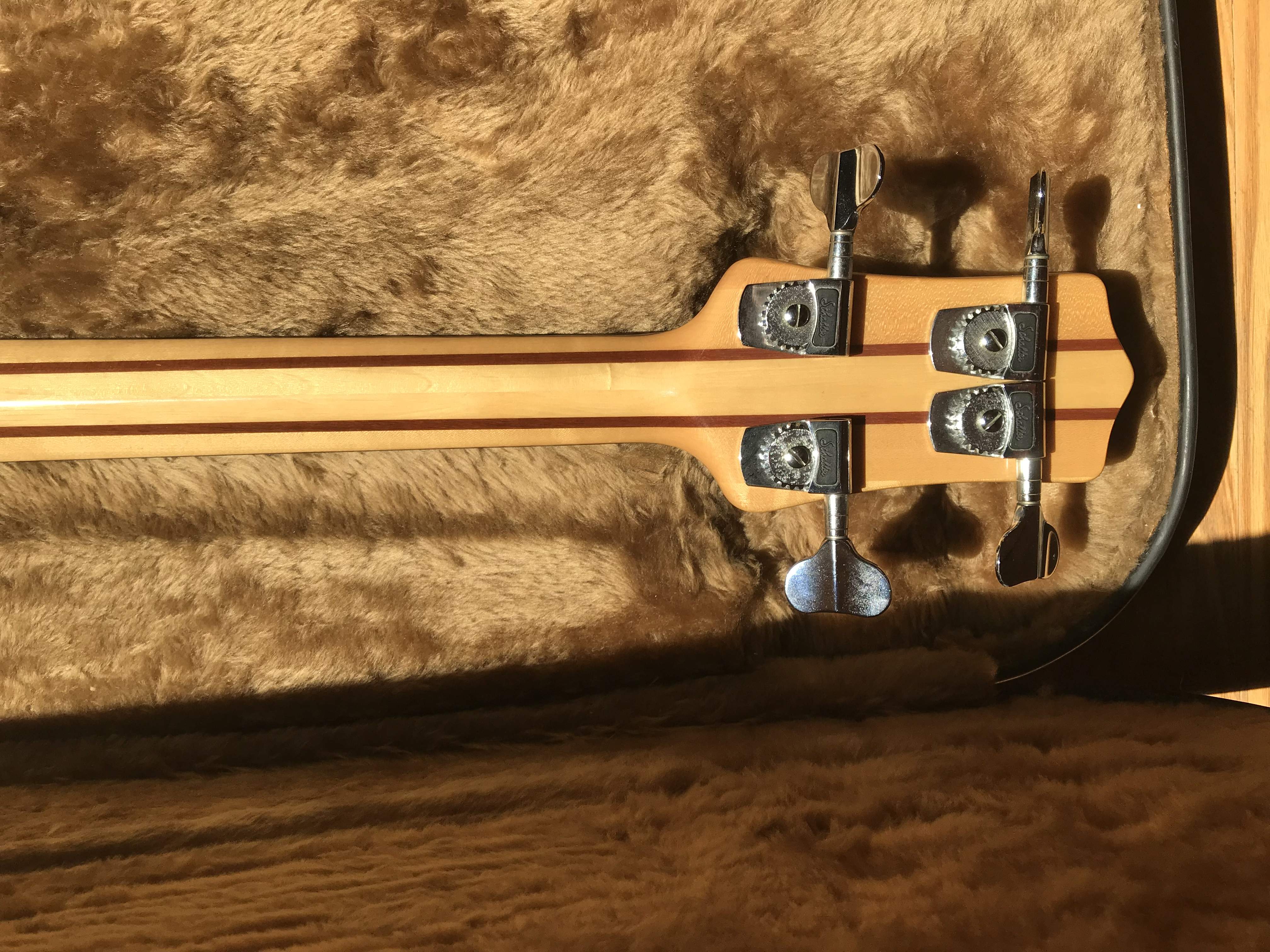

The good: the neck is straight, the trussrod works properly, electronics operate as they should, and all of the hardware is clean with the exception of the control knobs, which I will replace. The original brown case is in decent shape, latches work, hinge and leather handle are solid (though one of the little rubber feet is missing).

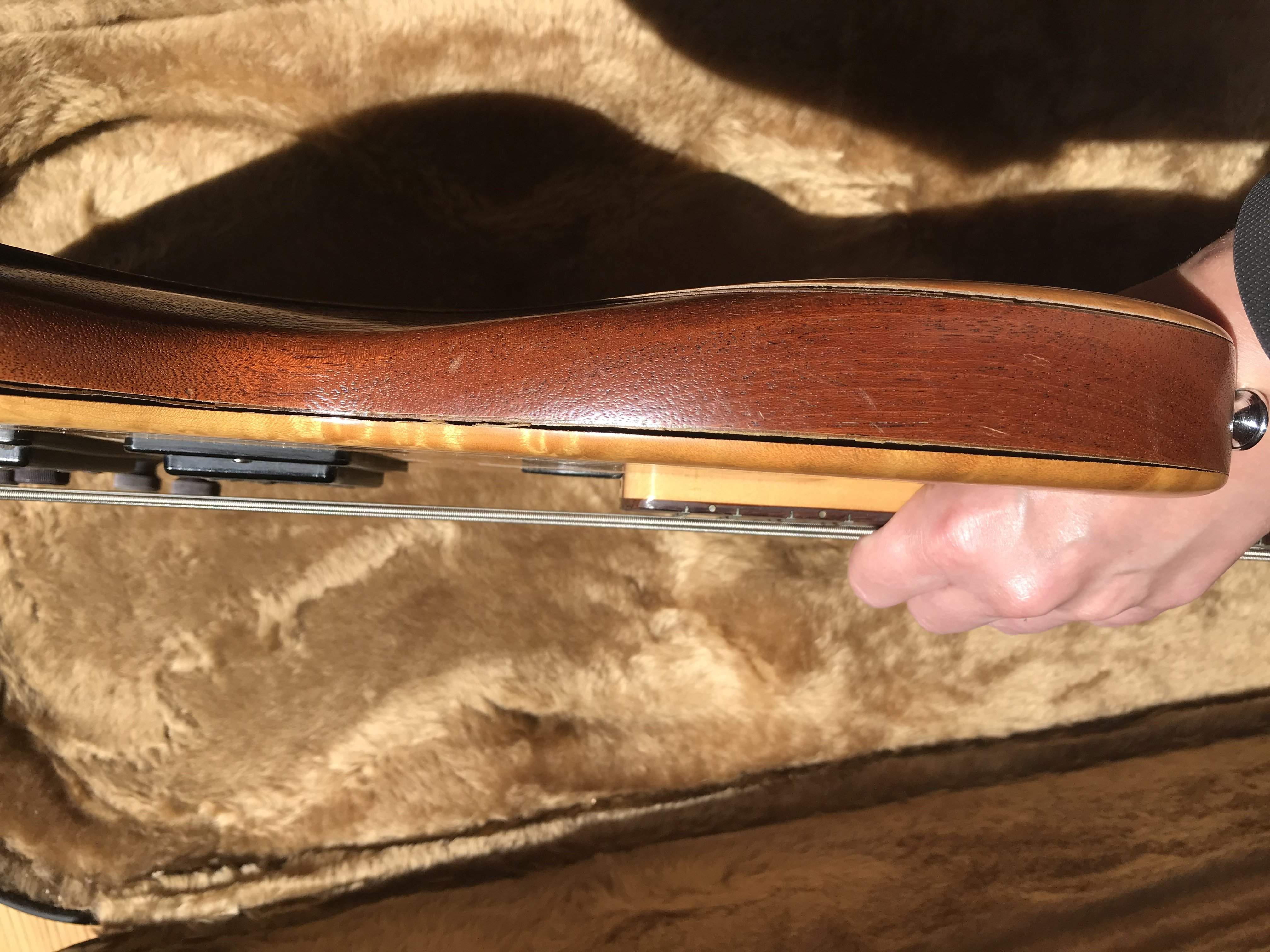

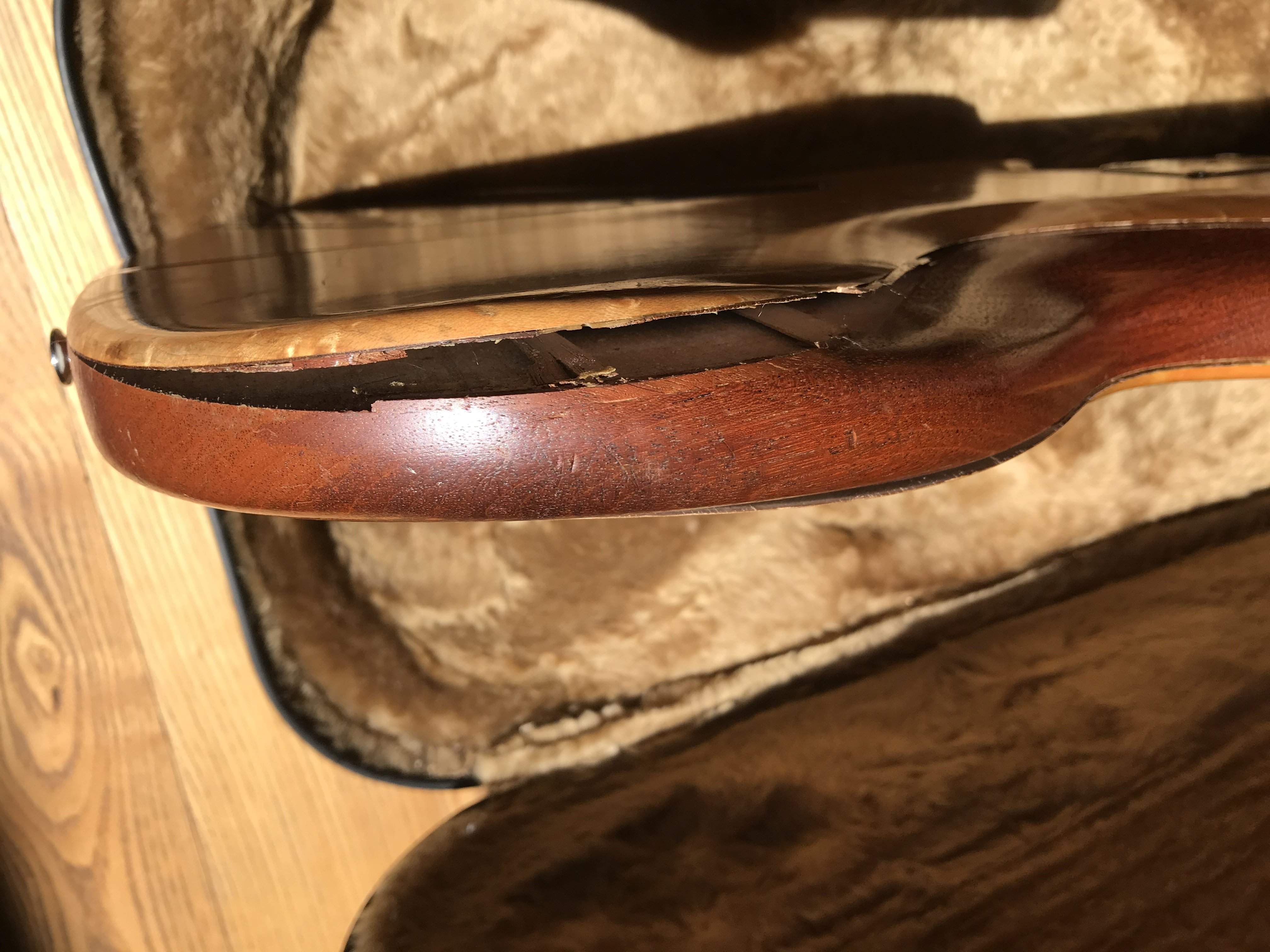

The bad: the front and rear facings are delaminating at both the top and bottom of the rear bout (I was told the prior owner had left the bass in storage for five months and it was like this when he retrieved the instrument - obviously it was not a climate-controlled facility).

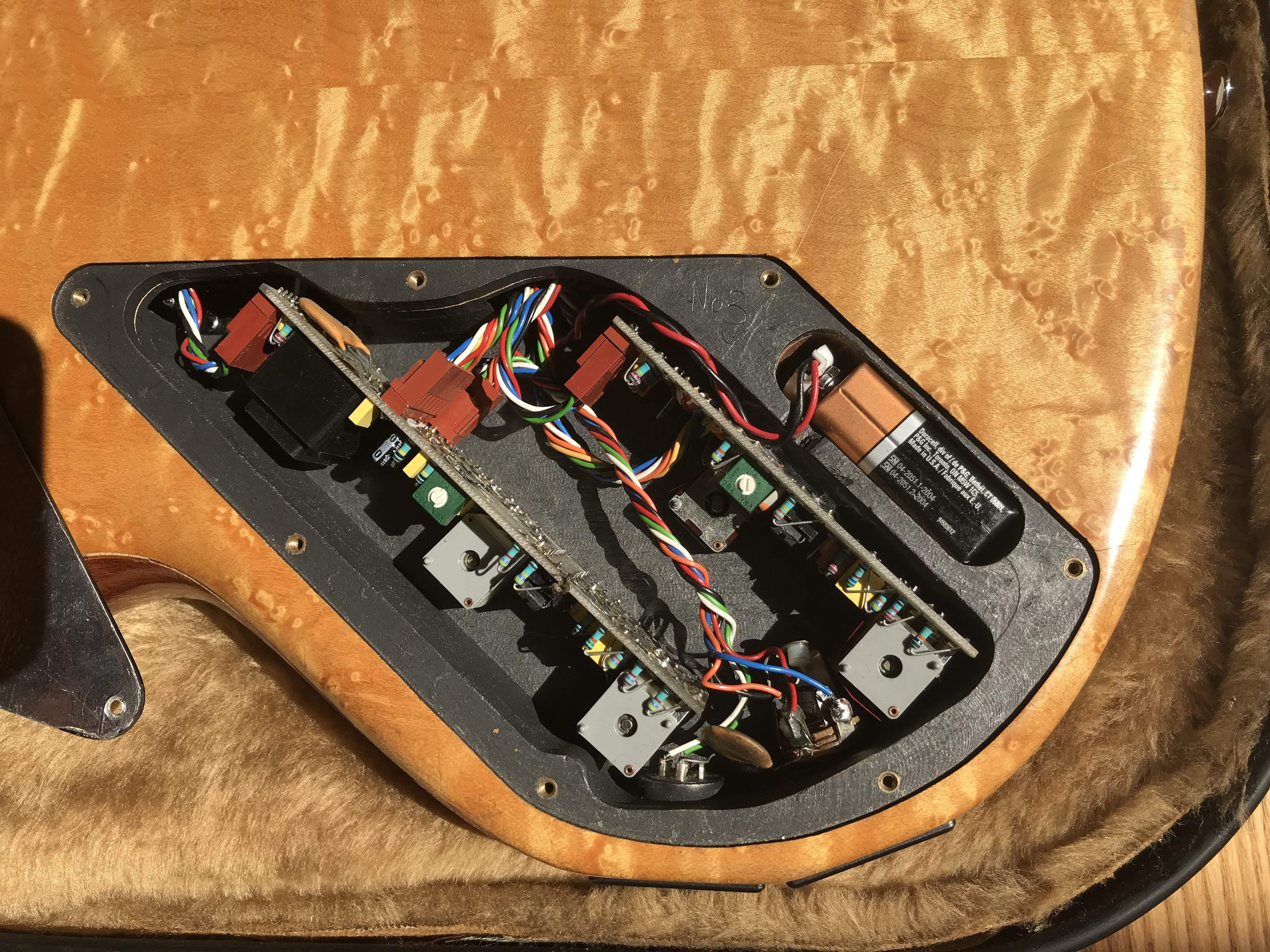

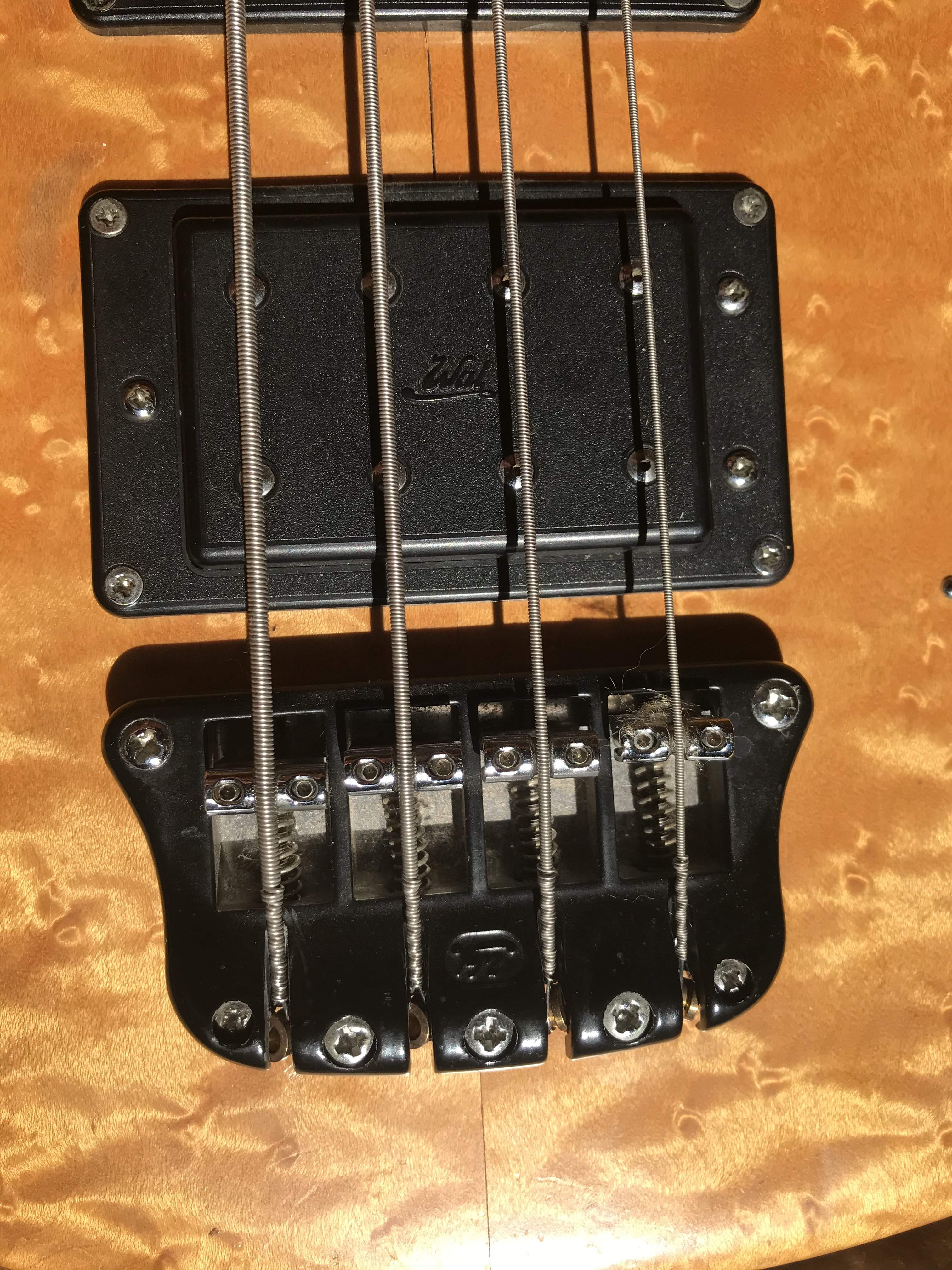

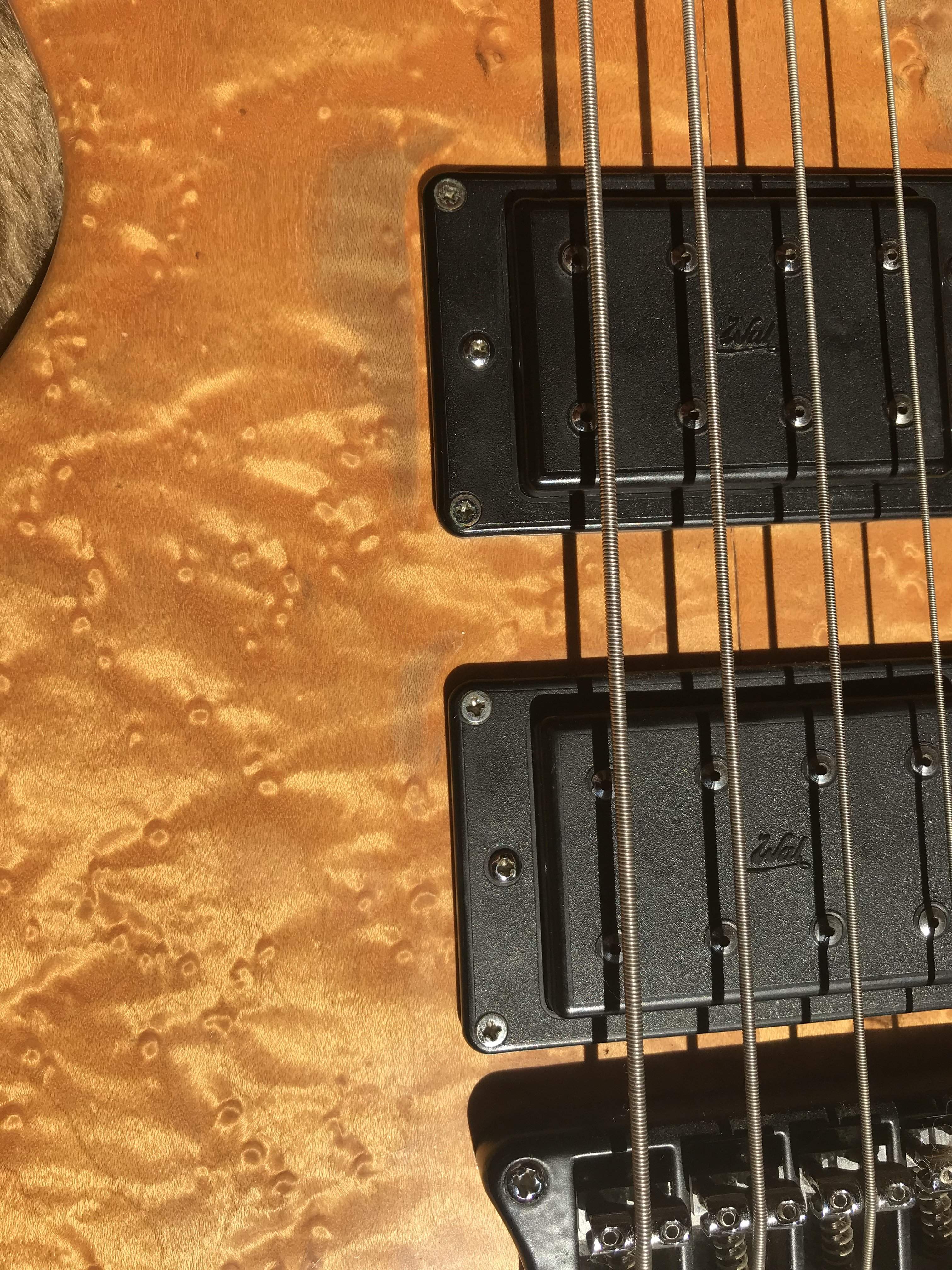

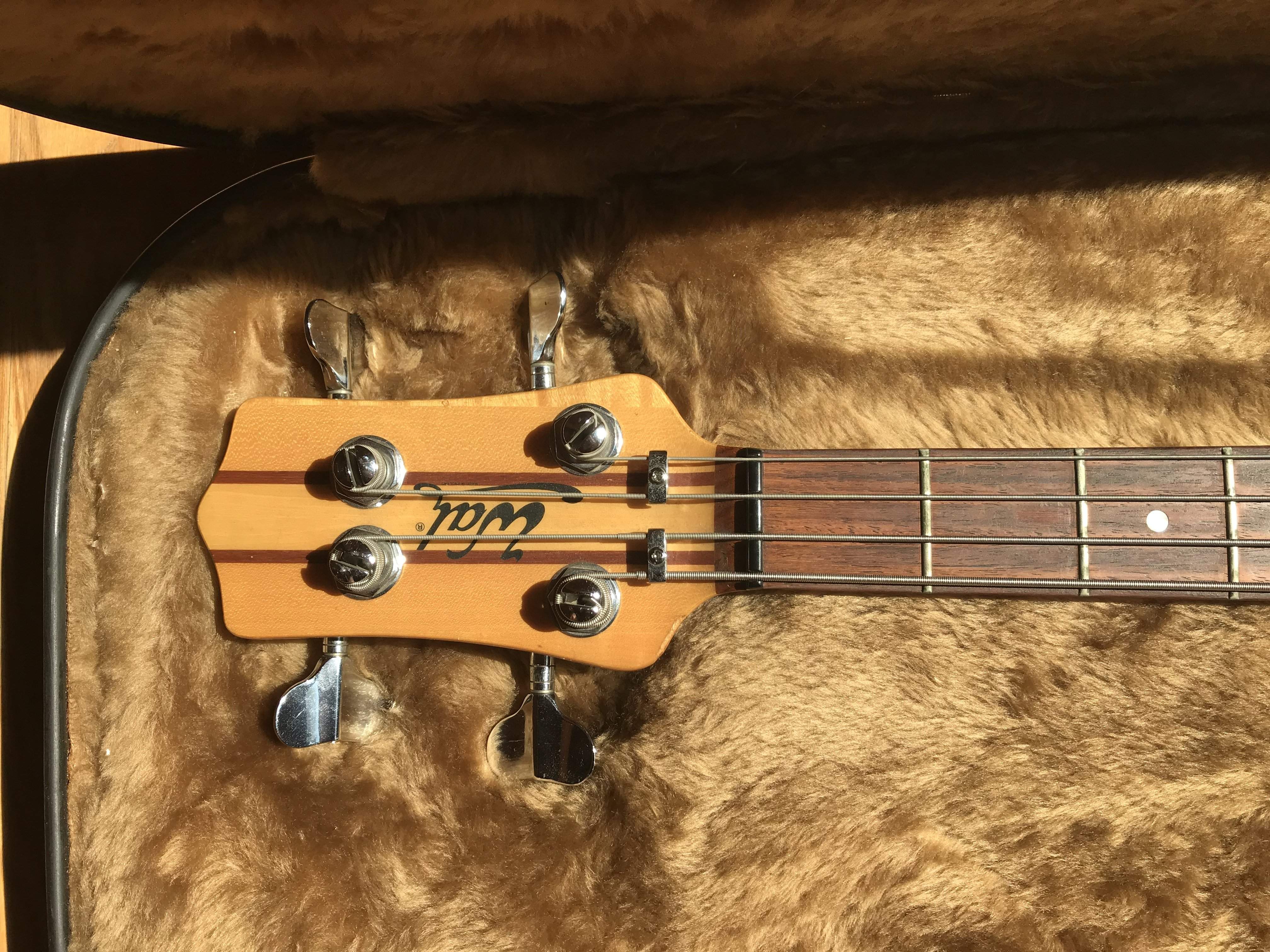

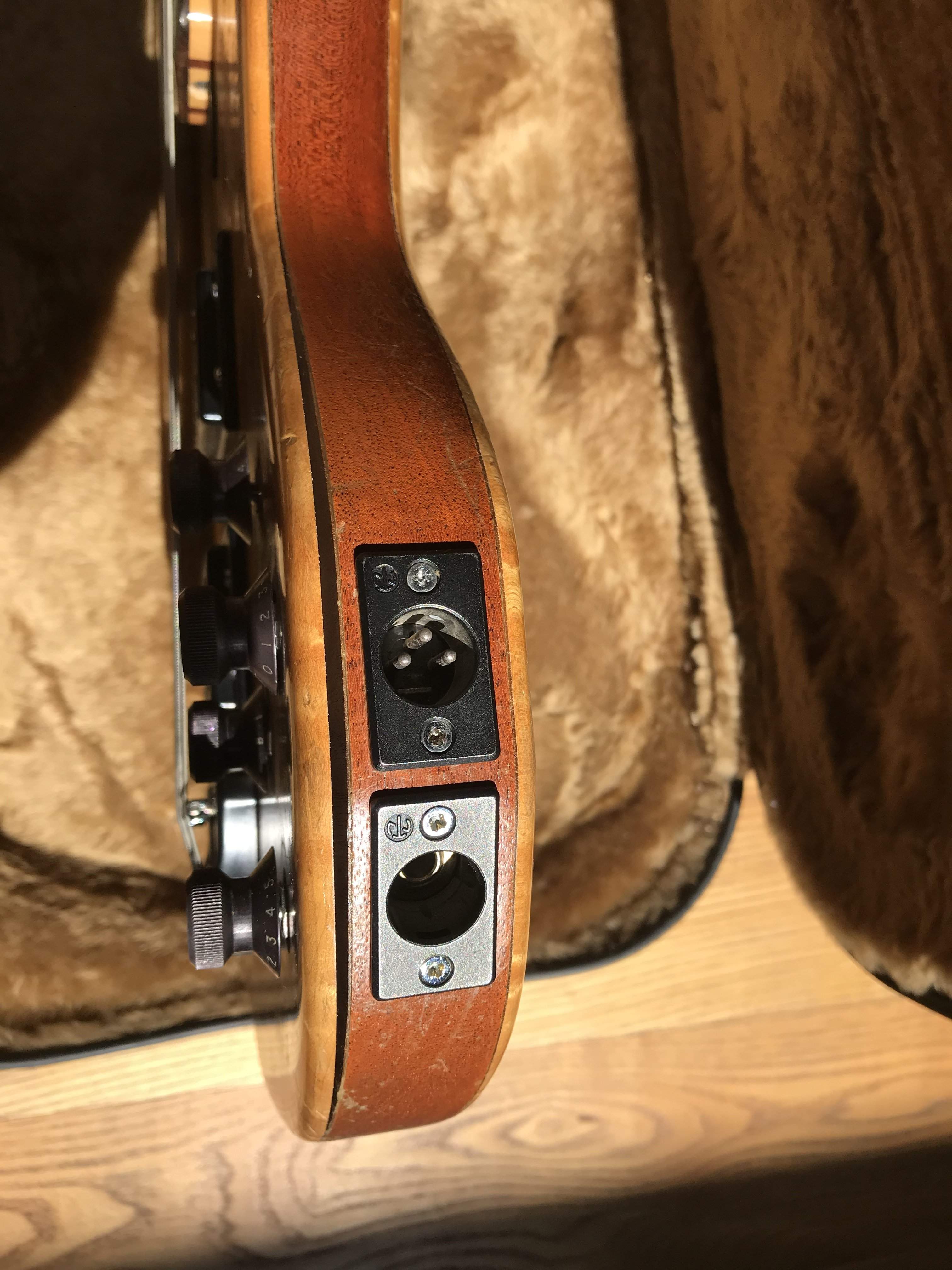

There are also a variety of other minor issues, but I believe they can all be fixed without much trouble: some missing screws, non-original screws (see bridge and pick-up height adjustment, for example), and nearly all of the remaining Pozidriv screws have been cammed out by someone using the wrong screwdriver (my pet peeve); I believe the preamp has the old capacitors that are prone to leakage/failure; the 1/4” jack is a little loose, and that fingerboard is mighty gunky.
So, I’m thinking that after cleaning the fingerboard I’ll start with the facings, and if they can be reattached with steam, glue, and clamps (a job for a luthier, not me!), I’ll have the body sanded and refinished (satin, as original), and then move on to the other stuff, replacing screws, upgrading electronics (via Electric Wood), etc.
Has anyone else dealt with this type of delamination on a Wal? Were you able to get it repaired to your satisfaction? I’m concerned that the slight gap in the seam between the two front facings (in the center of the instrument) is not going to disappear, even if the facings are able to be fully reattached. If so, would it be sacrilege to, perhaps, cut out a 1/2” strip along that seam and pop in an accent strip (maybe rosewood) - kinda’ like the red Geddy?

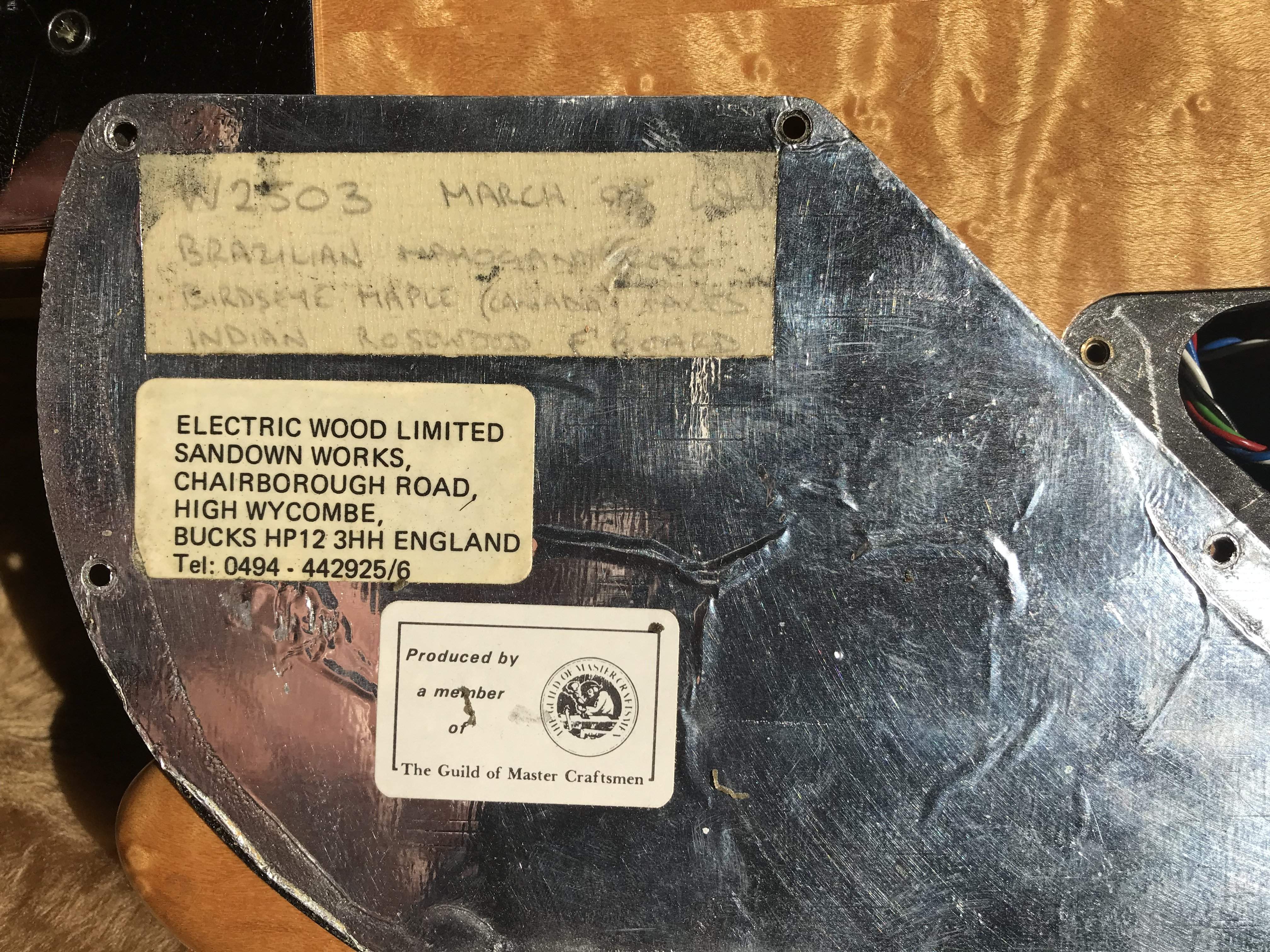

I’m also curious if anyone can make out the name of the builder from the back of the cavity control cover.
One last question (and I know this is a long-shot), has anyone ever catalogued the gauges of the various screws on a Wal?
... and here are the pics:
