Any DIY pedal builders on TB? Strut your stuff!

[cosmicevan]

Yeah, they are...how does one do that?



[johnk_10]

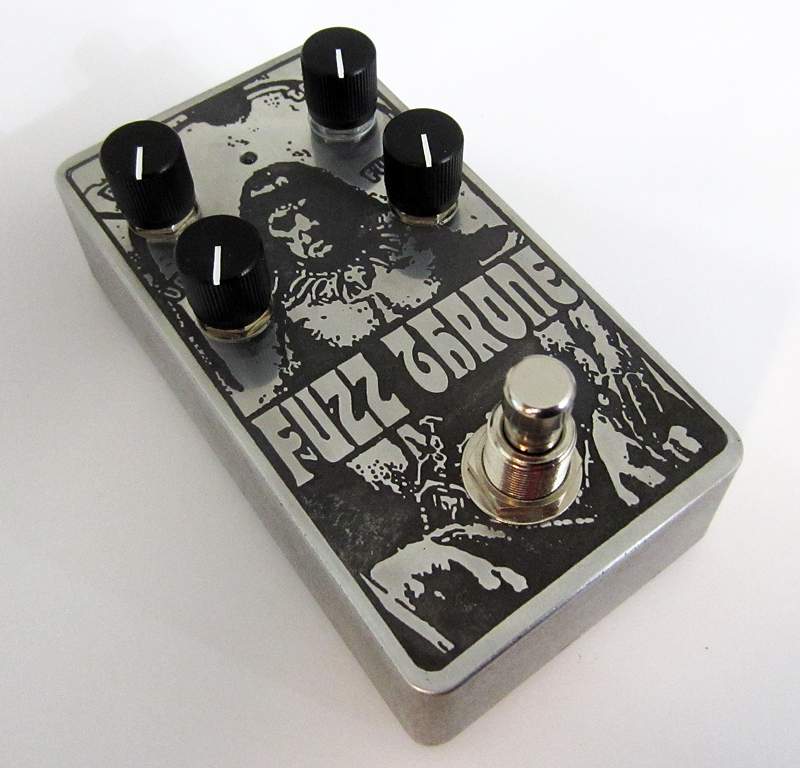

here's another etched Fuzz Throne. this time in a 1590B with a relayed true bypass:



[mdalamond]

here's another etched Fuzz Throne. this time in a 1590B with a relayed true bypass:

View attachment 4323785

And you still managed to put top Jack's on it. They both look great.



[Feral Feline]

1590B with top jacks rules!

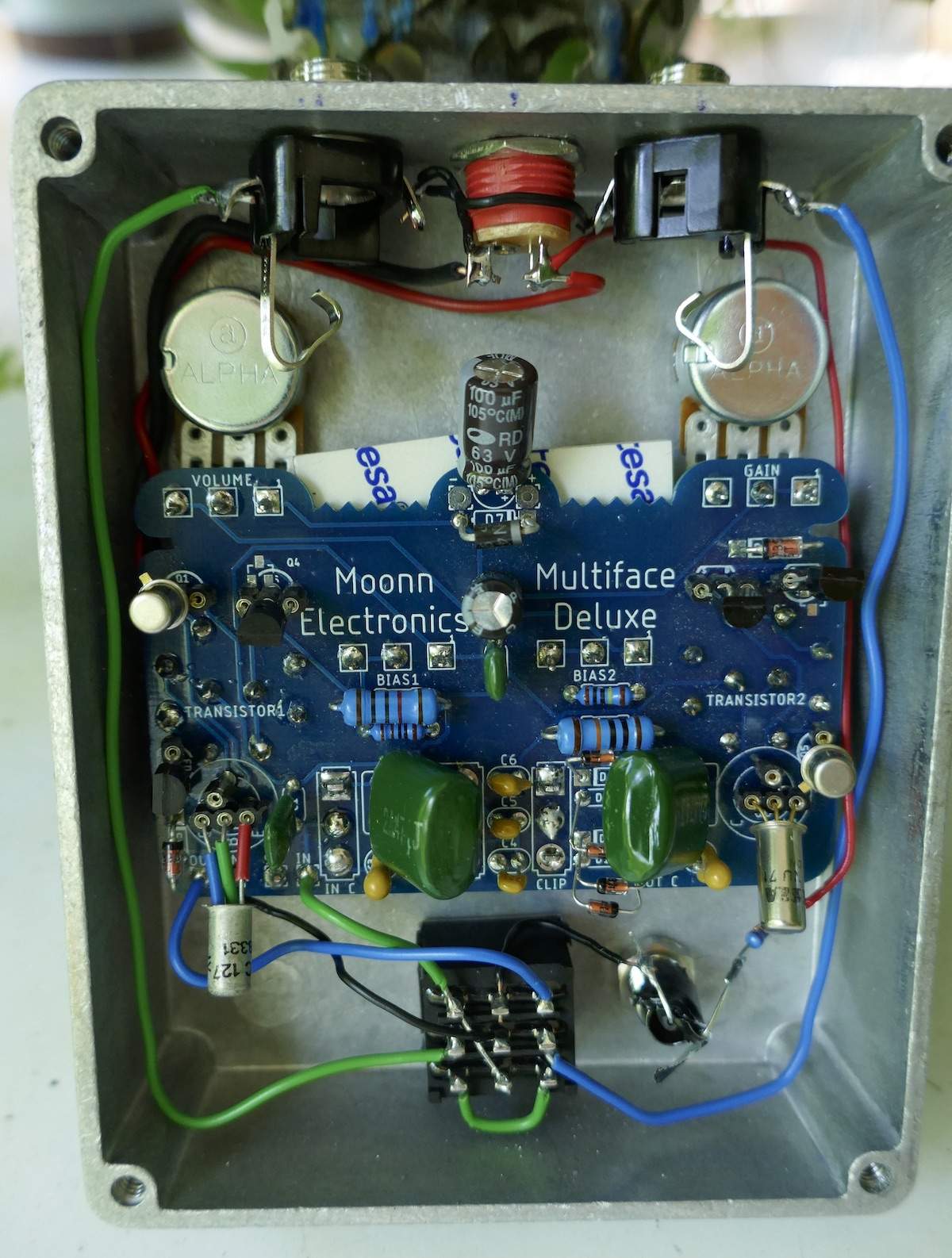

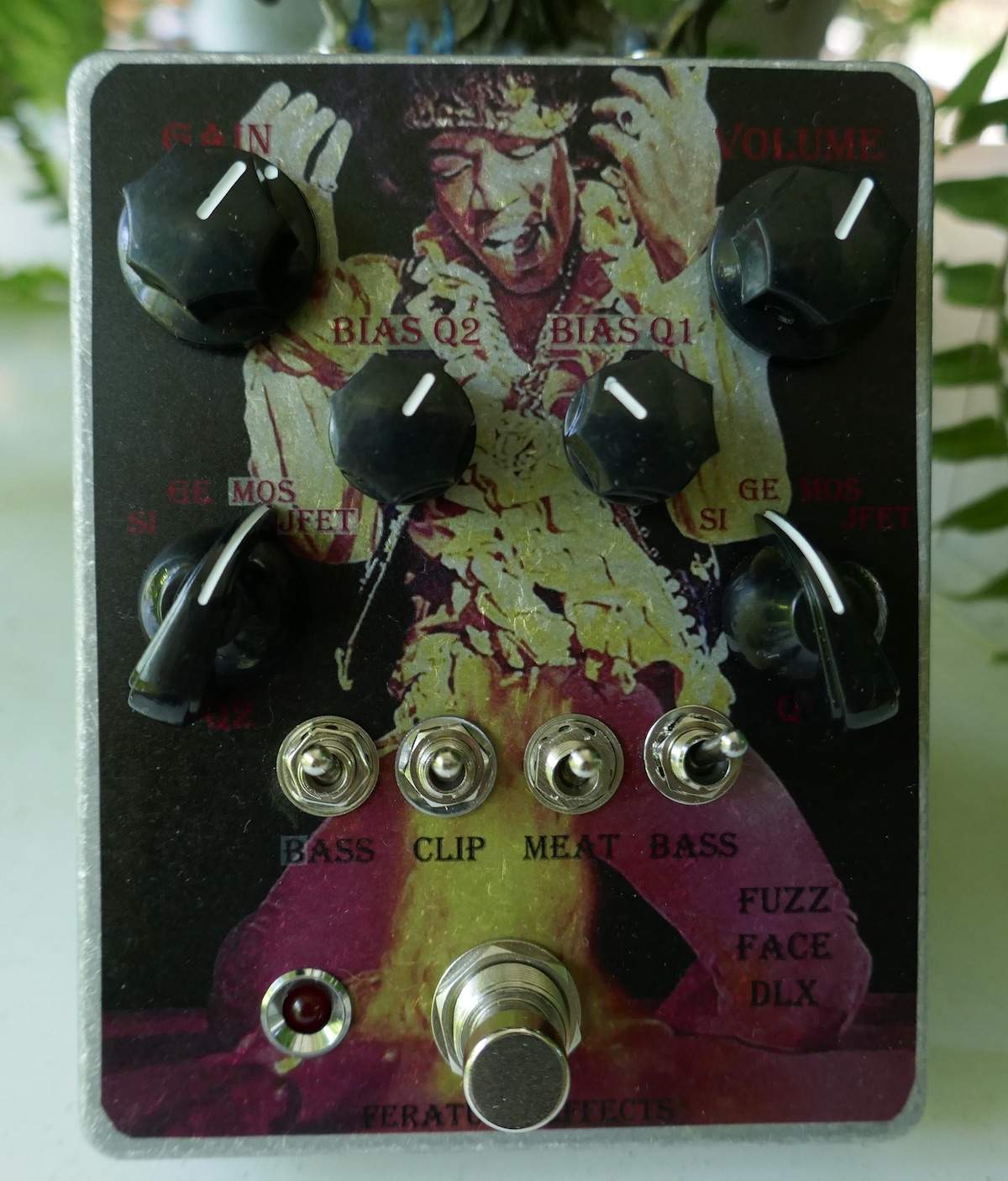

I've got another one, kinda silly, but very cool. A Fuzz Face with a lot of options, I mean: a lot.

There's your Gain and Volume.
Then each transistor is on a 4-way rotary (GE, SI, Mosfet, JFet) with its Bias pot. All 8 transistors are in sockets.

And switches:
2x BASS: gives you 3 different caps on the input and the output.
CLIP: 2-way, switches feedback resistor for clipping diodes (à la Bazz Face)
MEAT: 3-way, adding caps. middle is classic Fuzz Face, up Colorsound One knob Fuzz, down DAM Meathead.

View attachment 4320953 View attachment 4320954

Fantastic!

I thought that's gotta be a Moonn even before I scrolled down for the Gutshot — just spent a chunk of change on Aion & PPCB... Moonn will eventually have it's day in the ... moonnlight.



[Fuzzonaut]

Yeah, they are...how does one do that?

like this, for example



[cosmicevan]

like this, for example

Thank you!!!



[Passinwind]

The more DIY-friendly open source variable resonance low pass filter is very close to release now, the first test board is working just as modeled and I only see one very simple layout tweak I want to take care of before I put it up for share on OSHpark.



[G.Bisson]

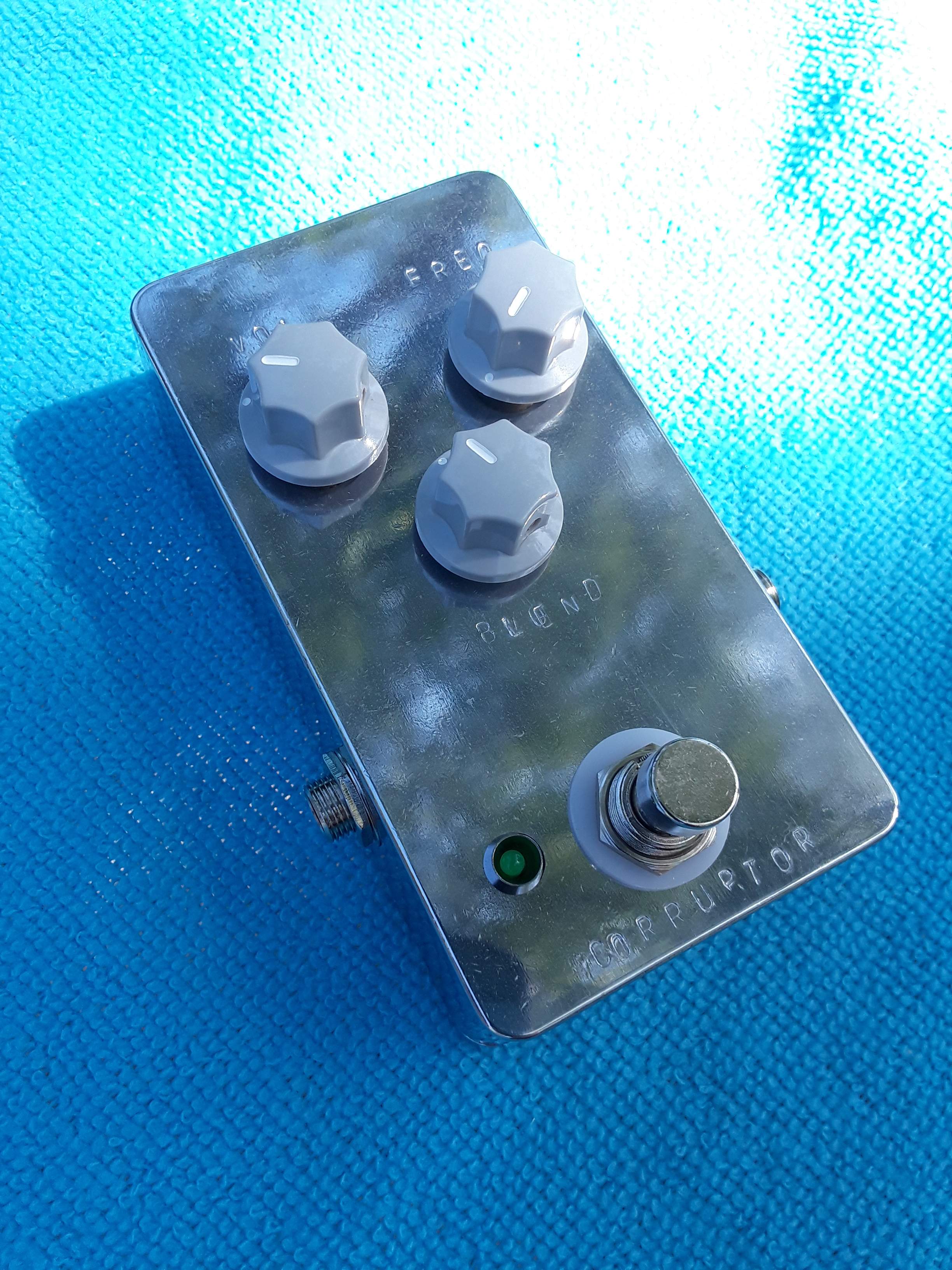

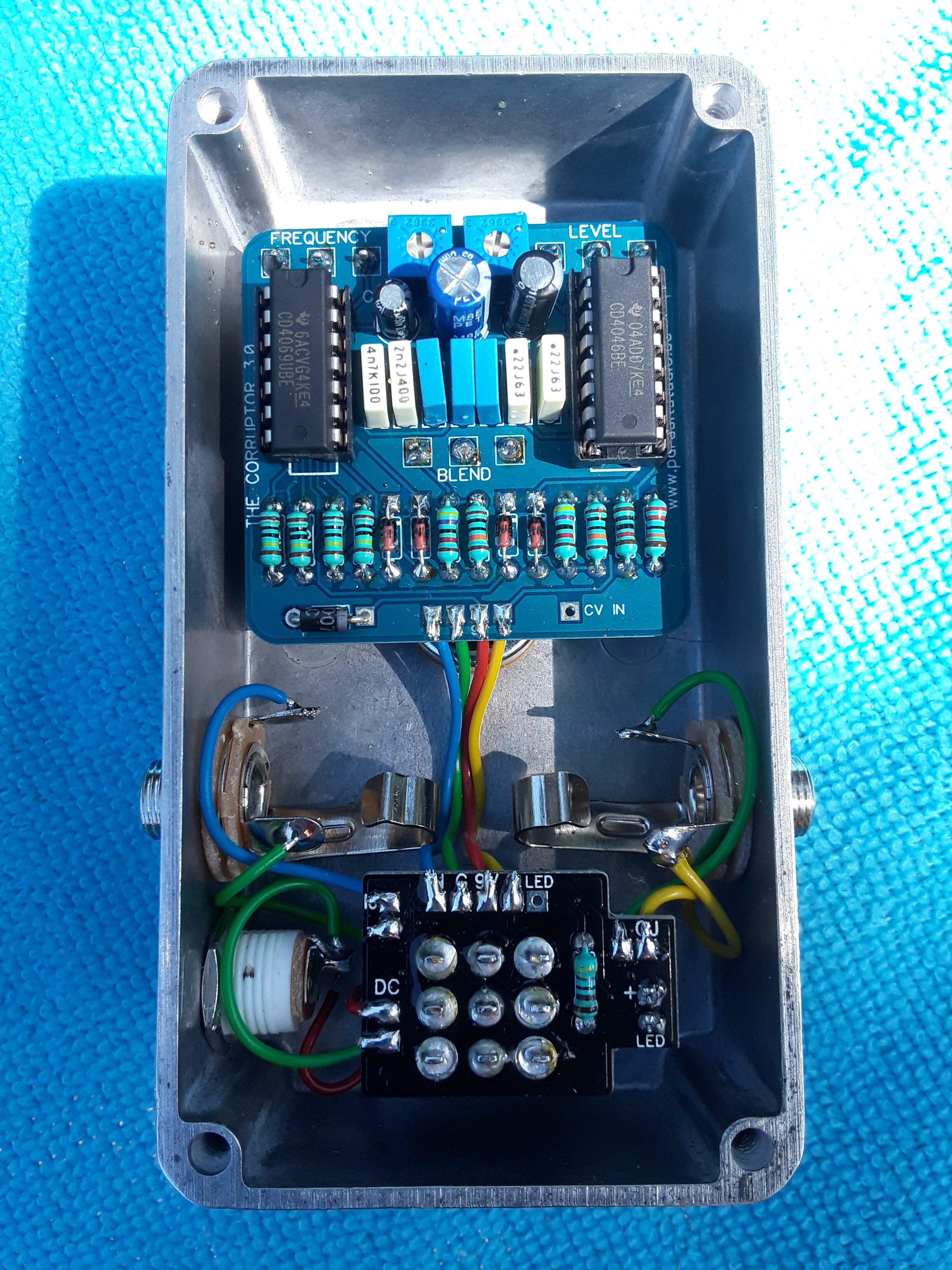

Parasit Studio The Corrupter v.3 ring mod fuzz
Like many ring mods, this thing is difficult to dial in and there are many ugly inbetween spots on the freq control. I'm tempted to drill another hole to mount the Gate trimmer externally. There is a sweet spot on the gate trimmer where the smallest turn makes a big difference in the sound of the fuzz and ringer. I do not recommend this effect and will be keeping a eye out for more DIY ring mod builds.
Polished bare metal enclosure with my first attempt at punched letters.



[Passinwind]

Just spitballing an open source DIY variable HPF board design last night, might be a few weeks until I can get around to building a tester though:

Nothing smaller than 1206 and SOIC-8 parts, and all caps are through hole format. I could use some schooling on appropriate tiny enclosures, but any feedback would be welcome, as usual.



[mdalamond]

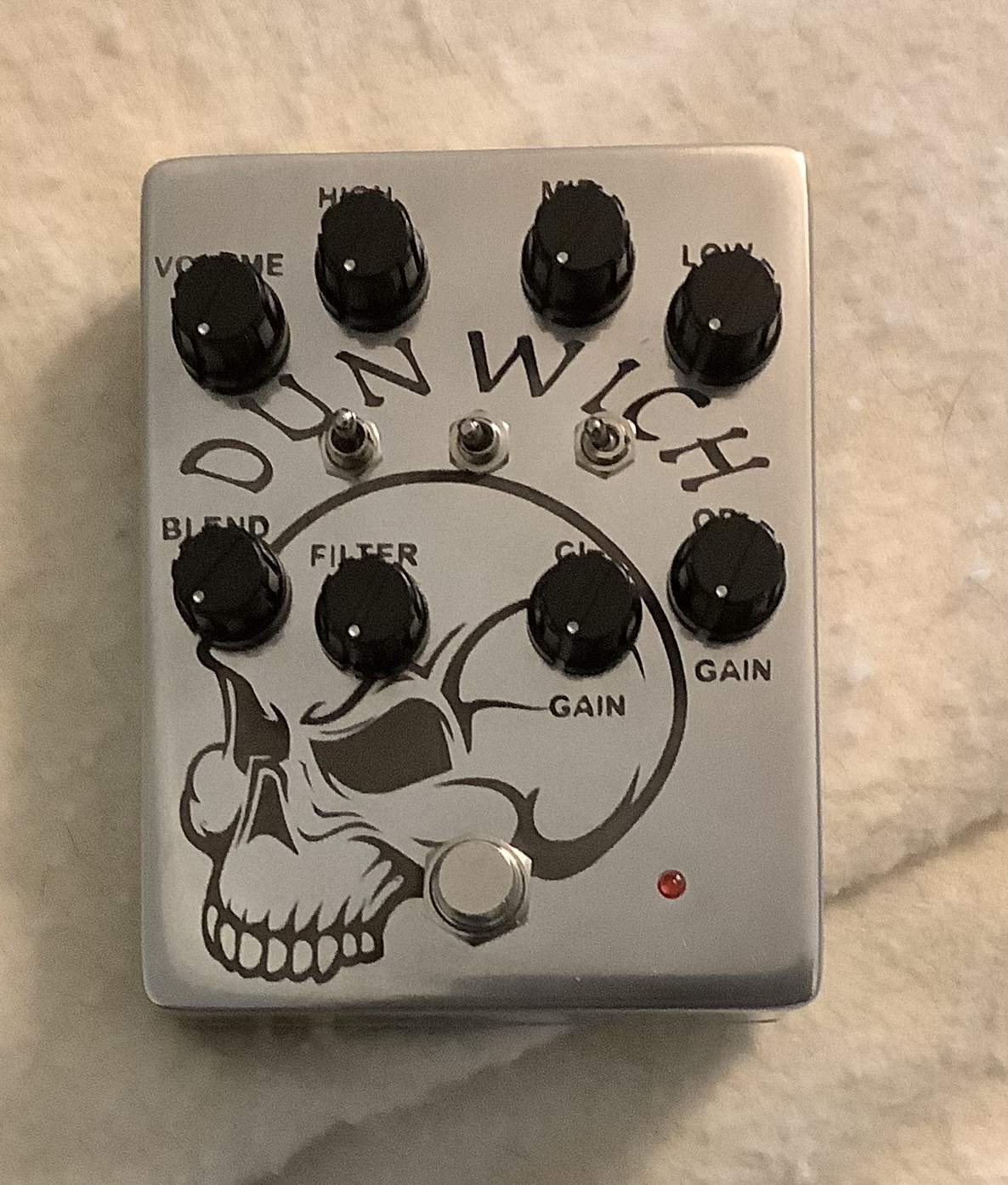

Finally got around to boxing this one up. This is the Dunwich ODB-3 DIY that’s been on my bench for a few weeks. Please ignore the one bigger toggle switch. I need to place an order. Love the sound that come out of this one. The filter section is quite unique.



[Feral Feline]

Leave the toggle as is, a conversation starter for people who notice it. People who don't notice it... you don't want to talk to them.

Just spitballing an open source DIY variable HPF board design last night, might be a few weeks until I can get around to building a tester though:

View attachment 4327896

Nothing smaller than 1206 and SOIC-8 parts, and all caps are through hole format. I could use some schooling on appropriate tiny enclosures, but any feedback would be welcome, as usual.

The PCB's 51mm is about the limit for 1590A length:
TOP Length of the 1590A internally is 87.8mm (3.4"), but you need enough room for 3PDT or whatever bypass system you choose.

PCB's width at 25.6 is well narrow enough for 1590A.
TOP Width internally is 33.7mm (1.3").


I'm a masochist, I hate side jacks but love 1590A builds and somehow manage to curse my way through to a completed pedal.

If I was smart, I'd just build into 1590B2 (or 1590TRPB) with top jacks and have effectively the same footprint as a 1590A but with more room for the build and related mods/controls etc and a let less cursing. Going up the Hammond ladder, after a 1590B/B2 would be 1590B3 (a 1590B that's a bit wider) and then 1590N1. PLENTY of room for jacks, knobs and switches inside these latter suggestions.

For such a small board, alternatives could be 1590Y (like two 1590As side by side, making it square); other less conventional options such as sloping tops from various manufacturers such as Heeger and extruded Rosa Bopla including folded sheet-metal options, medical control-boxes (hand-held) etc...



[Passinwind]

The PCB's 51mm is about the limit for 1590A length:
TOP Length of the 1590A internally is 87.8mm (3.4"), but you need enough room for 3PDT or whatever bypass system you choose.

PCB's width at 25.6 is well narrow enough for 1590A.
TOP Width internally is 33.7mm (1.3").


I'm a masochist, I hate side jacks but love 1590A builds and somehow manage to curse my way through to a completed pedal.

If I was smart, I'd just build into 1590B2 (or 1590TRPB) with top jacks and have effectively the same footprint as a 1590A but with more room for the build and related mods/controls etc and a let less cursing. Going up the Hammond ladder, after a 1590B/B2 would be 1590B3 (a 1590B that's a bit wider) and then 1590N1. PLENTY of room for jacks, knobs and switches inside these latter suggestions.

For such a small board, alternatives could be 1590Y (like two 1590As side by side, making it square); other less conventional options such as sloping tops from various manufacturers such as Heeger and extruded Rosa Bopla including folded sheet-metal options, medical control-boxes (hand-held) etc...

Thanks, plenty to sort through there. I can change the board shape no problem if I have a compelling reason to do so, but I already sharnk it a little more to 50.8 x 25.4 mm (2 x 1 inches even). I could also mount the board to the enclosure side, it won't be over 9mm thick or so and many of my onboard preamps already end up going sideways into Fender jazz routes and the like.

I see this as an always on pedal for the most part, but since I already have HPFs built into all three of my current amps it's not all about me. My new tube amp build may or may not end up getting one, but using pedals with it is definitely in the plans in any case. And of course since I have all these prototype LPF boards kicking around now, an HPF/LPF combo pedal is bound to happen sooner than later.



[Feral Feline]

Passinwind, do you like hard-candy or pastilles?

The little round tins they come in, if deep enough, make great little fun enclosures.

Or drive the vintage-tin collectors nuts...

Not all around are round...

My Granny had a sweet tooth. I wish I had all her accumulated tins, except she didn't accumulate — she tossed them out when the candies were gone. If only I'd known as a wee duffer what future use they'd've been, she would've gladly hoarded them for me...


All pics above are gleebed online, I'm too lazy to put up a photo of my modest modern collection.



[Passinwind]

Passinwind, do you like hard-candy or pastilles?

The little round tins they come in, if deep enough, make great little fun enclosures.

View attachment 4328830


Or drive the vintage-tin collectors nuts...
View attachment 4328831

Not all around are round...
View attachment 4328832


My Granny had a sweet tooth. I wish I had all her accumulated tins, except she didn't accumulate — she tossed them out when the candies were gone. If only I'd known as a wee duffer what future use they'd've been, she would've gladly hoarded them for me...


All pics above are gleebed online, I'm too lazy to put up a photo of my modest modern collection.

I love all of that! I was actually leaning towards something like the 1590H, which would probably take just a little board layout tweaking, but 1590A looks like no problem at all for my purposes for the first tester. Or I may just do a 1590BB build with the HPF, LPF, and maybe the parametric EQ module that will likely come next.



[_sky_]

Hello!

For a european fella, what is the Best diy big muff russian kit I can get? The one from musikding seems to be good but I would like to hear some sugestions.

Cheers



[mdalamond]

Hello!

For a european fella, what is the Best diy big muff russian kit I can get? The one from musikding seems to be good but I would like to hear some sugestions.

Cheers

There are many. Check out GGG, Aion effects, Dead end effects, BYOC, just to name a few. I'm sure others will add to the list.



[Feral Feline]

There are many. Check out GGG, Aion effects, Dead end effects, BYOC, just to name a few. I'm sure others will add to the list.

None of those are Euro-based, but at least Aion is on Musikding.

Hello!

For a european fella, what is the Best diy big muff russian kit I can get? The one from musikding seems to be good but I would like to hear some sugestions.

Cheers

There is no "BEST". There is only what you like and what you think is best for YOU — totally subjective.

Which Musikding kit did you look at? Musikding itself or one of the many other PCB suppliers Musikding hosts kits for — such as Aion, PedalPCB, Lectric-FX, JMK, Delyk or GuitarPCB? (I can recommend any of those suppliers as I've had PCBs from each of them.)

Other kits/PCB suppliers to check out (in whatever order):
Fuzzdog UK,
Jeds Peds UK,
BitsBox UK (counterpart to MKLEK in the US I think, maybe),
uk-electronics.de,
PCBGuitarmania CZ,
Carcharias (maybe) ES?,
Moody Sounds SE (may have some BYOC left, maybe not — has plenty other kits),
TH Custom DE,
NucleonFX NL...

Some of the above may only offer PCBs, you'd have to source the parts yourself, but a good number of the aforementioned do full kits as well.


What are your goals? A straight ahead Russian Muff can be built on pretty much any standard Muff PCB. If you want compact go for TH Customs' 1590A-sized Muff clone (Or BYOC from Moody Sounds if there's any left). If you want lots of customising with diode-switching and tone bypass and modded tone stack etc then go with GuitarPCB, or Aion, if you want it straight up in 1590N1 go with PedalPCB...

I don't know if Musikding has a Muff kit from all the suppliers mentioned above, because I order PCBs direct from those suppliers and source the parts myself.


Caveat emptor — I've got a boat-load of Muff PCBs but none are built yet! So maybe I'm not the best person to get advice from...


Good luck with your hunt!



[_sky_]

None of those are Euro-based, but at least Aion is on Musikding.
Man so much but great information! Thanks!



There is no "BEST". There is only what you like and what you think is best for YOU — totally subjective.

Which Musikding kit did you look at? Musikding itself or one of the many other PCB suppliers Musikding hosts kits for — such as Aion, PedalPCB, Lectric-FX, JMK, Delyk or GuitarPCB? (I can recommend any of those suppliers as I've had PCBs from each of them.)

Other kits/PCB suppliers to check out (in whatever order):
Fuzzdog UK,
Jeds Peds UK,
BitsBox UK (counterpart to MKLEK in the US I think, maybe),
uk-electronics.de,
PCBGuitarmania CZ,
Carcharias (maybe) ES?,
Moody Sounds SE (may have some BYOC left, maybe not — has plenty other kits),
TH Custom DE,
NucleonFX NL...

Some of the above may only offer PCBs, you'd have to source the parts yourself, but a good number of the aforementioned do full kits as well.


What are your goals? A straight ahead Russian Muff can be built on pretty much any standard Muff PCB. If you want compact go for TH Customs' 1590A-sized Muff clone (Or BYOC from Moody Sounds if there's any left). If you want lots of customising with diode-switching and tone bypass and modded tone stack etc then go with GuitarPCB, or Aion, if you want it straight up in 1590N1 go with PedalPCB...

I don't know if Musikding has a Muff kit from all the suppliers mentioned above, because I order PCBs direct from those suppliers and source the parts myself.


Caveat emptor — I've got a boat-load of Muff PCBs but none are built yet! So maybe I'm not the best person to get advice from...


Good luck with your hunt!



[G.Bisson]

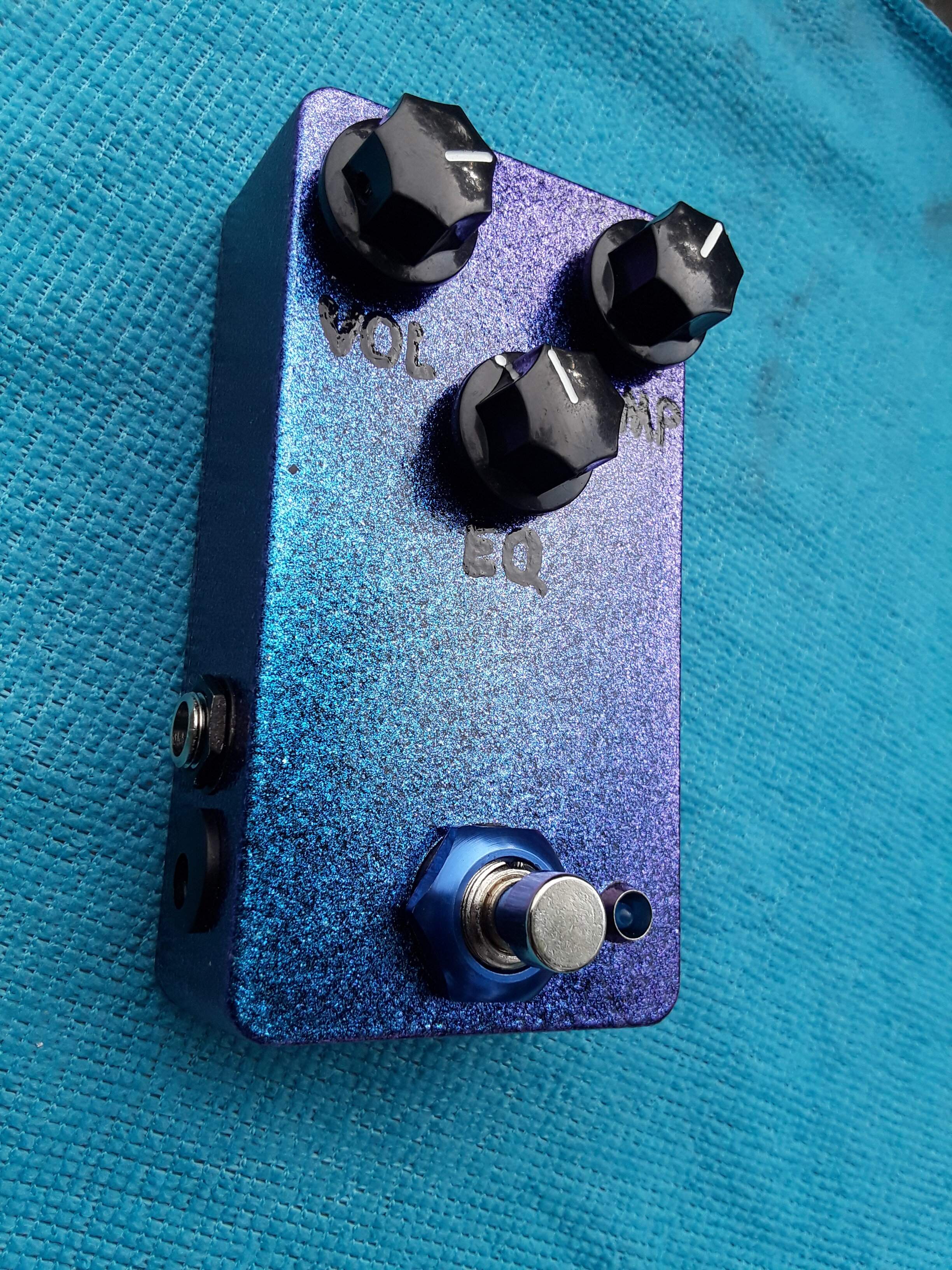

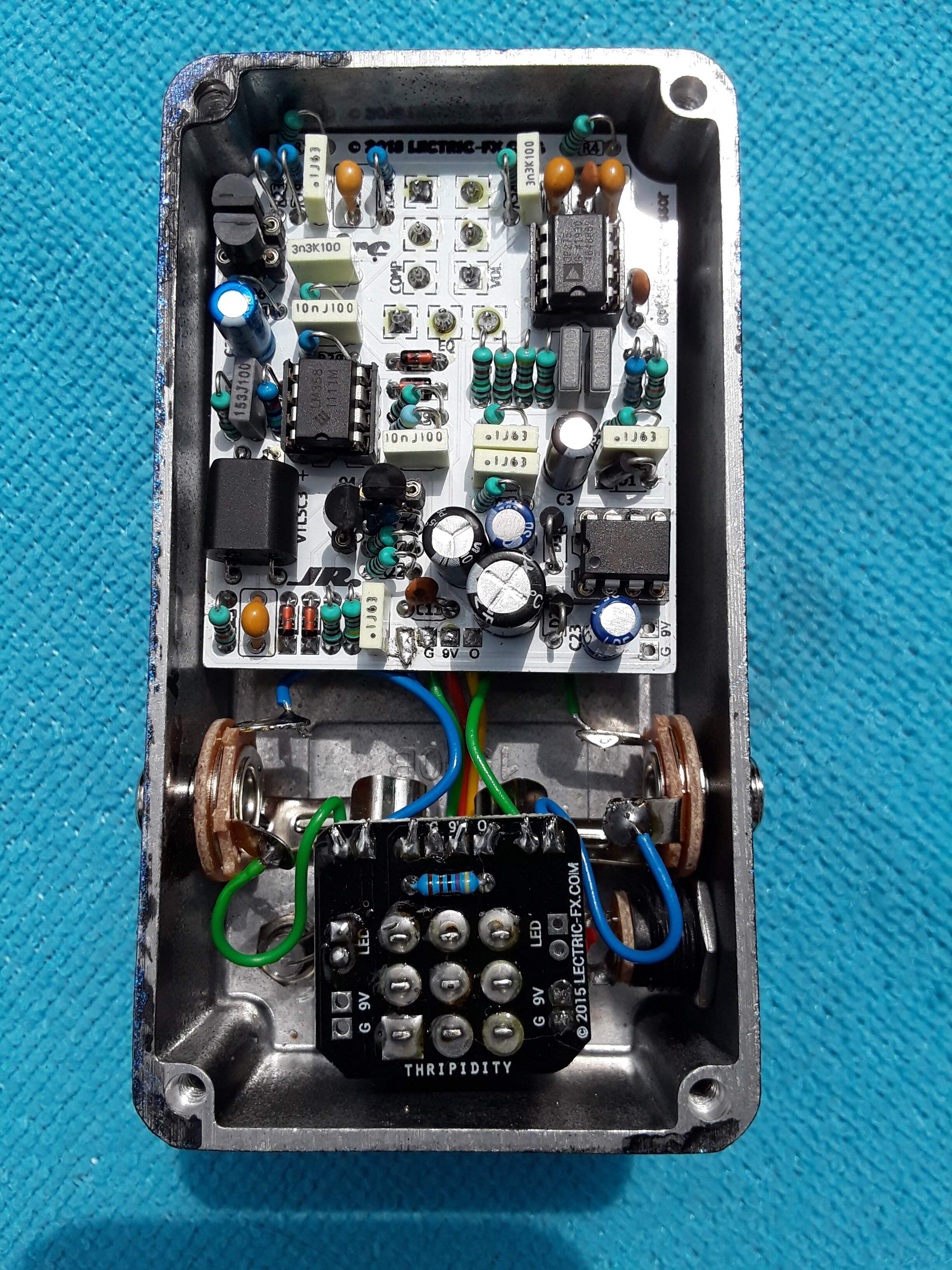

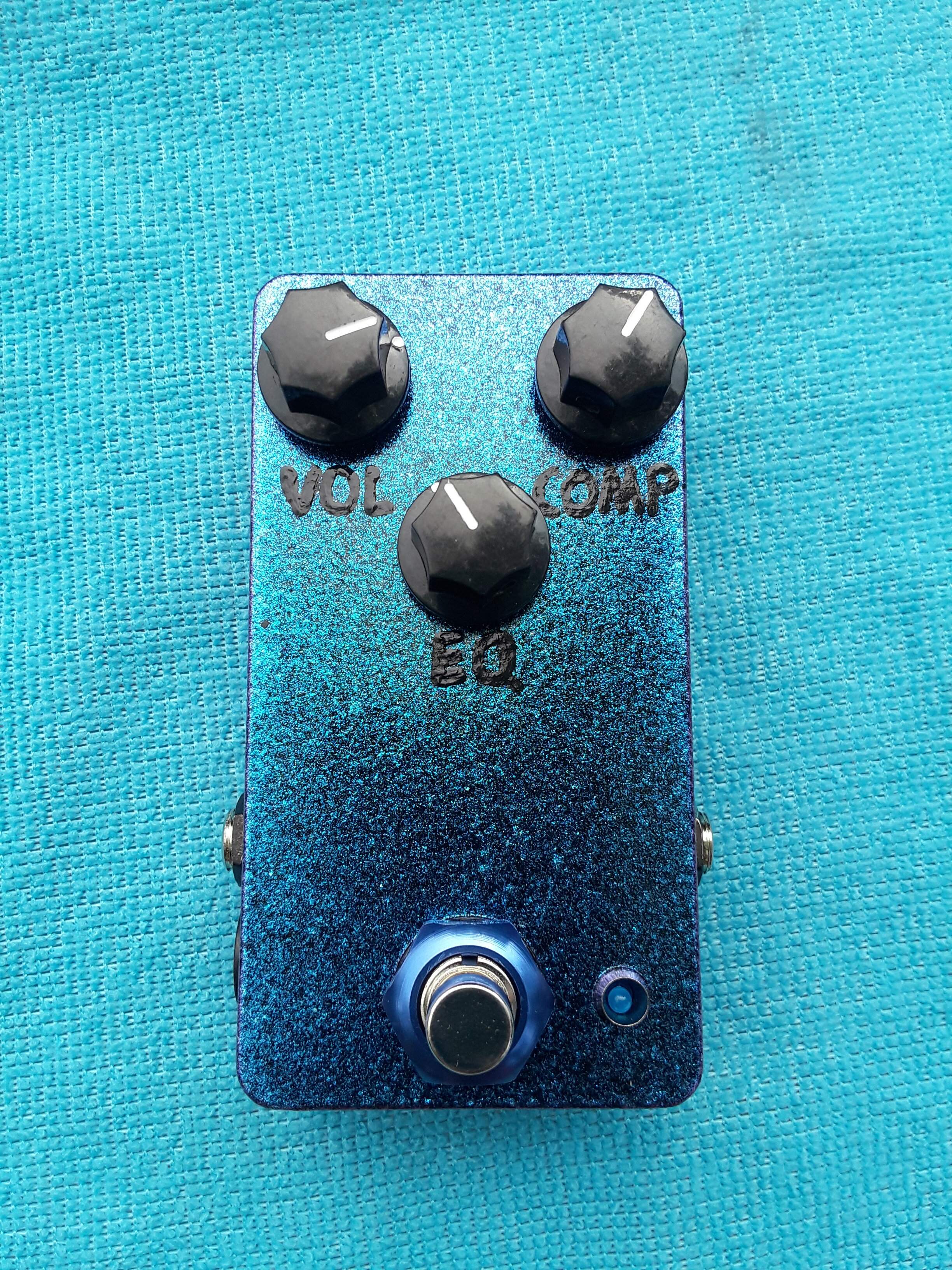

LectricFX ZircJR using bass part values from the Zirconia (Diamond Bass Comp clone).
This is a simple and highly effective tone massager. I get the hype now.
Painted with "Dragonfly glaze". Looks blue/green from straight on and violet/red from side angles.



[G.Bisson]

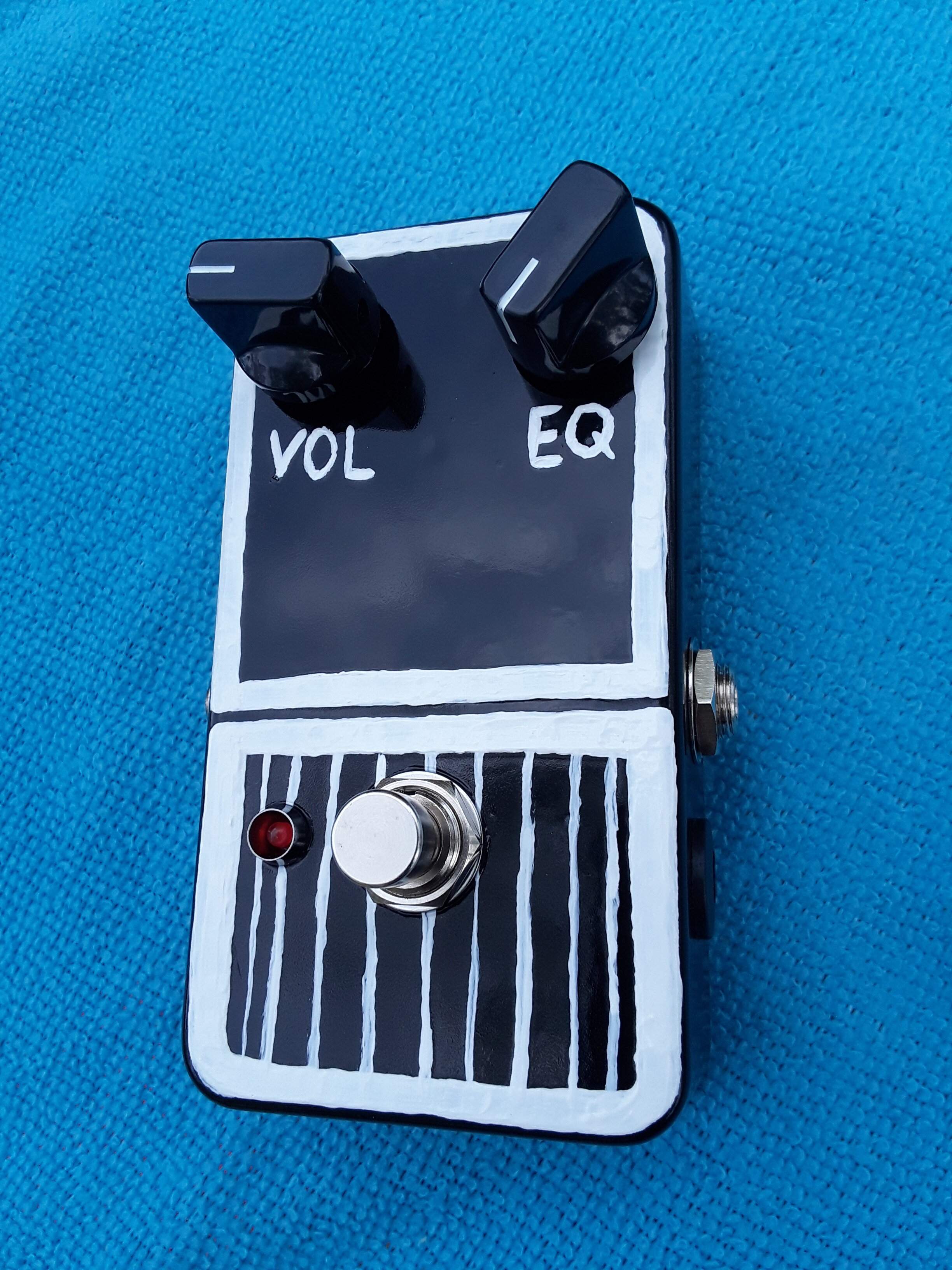

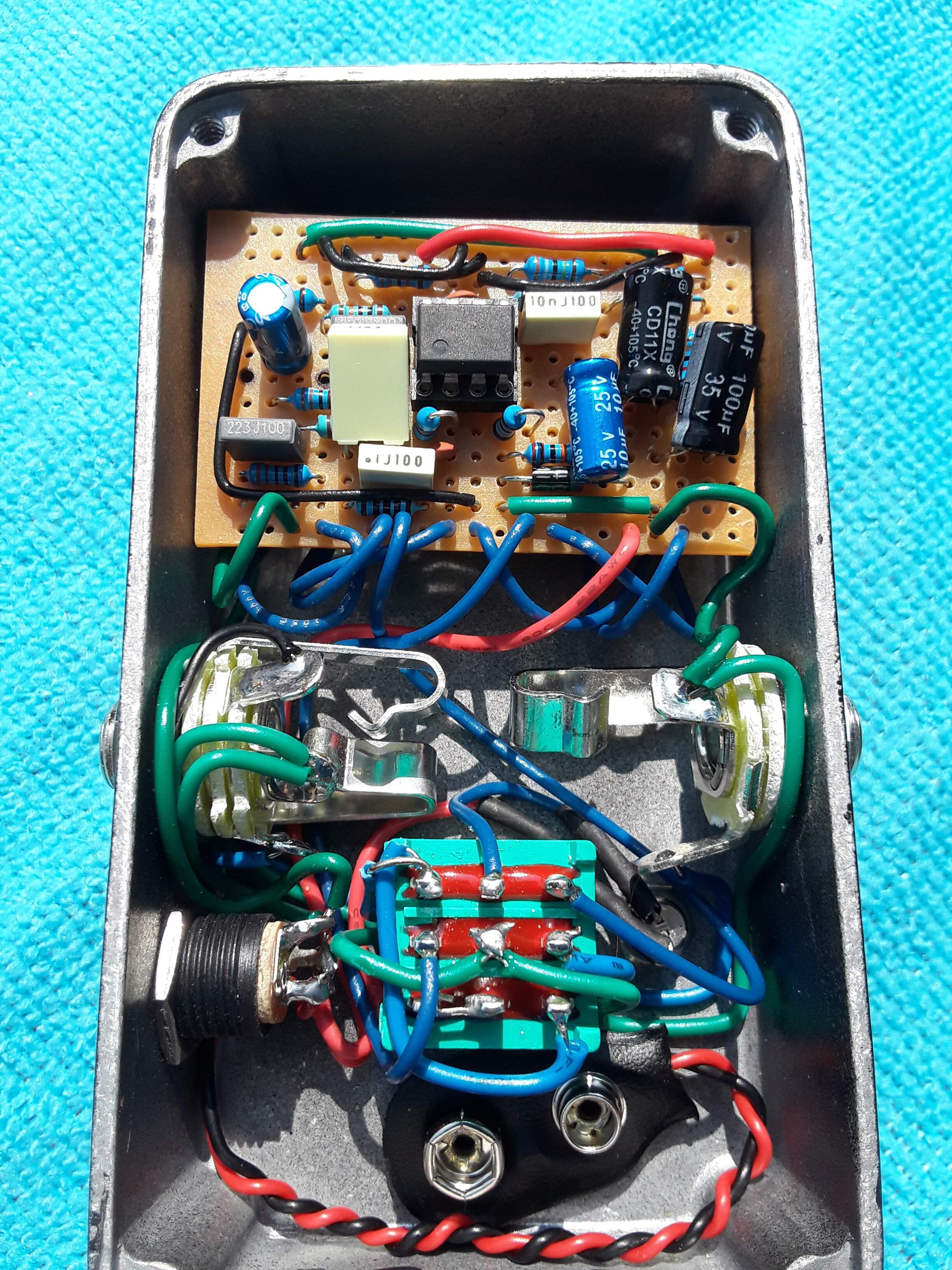

DOD FX10 BiFET Preamp built on stripboard.
Another simple and effective tone shaper. Offers more bass boost and more volume than the ZircJR.
