#941
If anyone is anywhere near Western NC, a buddy is selling a pair of S15BD's for a SONG. Lord I wish I had the space or the need for them, I love those big 15 boxes. pm me if you want me to put you in touch.

  • Like
Reactions: wave rider, John D Harris, fivestringdan and 1 other person
#942
Kind of an odd, unforeseen situation happened last night... I'm hoping this is an easily resolved polarity/cabling issue.

So, because I had two gigs yesterday, I had two cabs and an amp I wouldn't ordinarily use all together.

Amp: Acoustic Image Clarus 2, has two SpeakON outputs, can handle a 2 ohm load.

Cabs: Bag End S10-D with a SpeakON and two 1/4" jacks. Also has banana plug. I usually use this cab with this amp for upright or small room acoustic gigs, practice etc. I connect it with a SpeakON-to-SpeakON. Works great.

Other Cab: Bag End S15X-D, with two SpeakON and two 1/4" jacks, of course the banana plugs too. I usually use this cab with a different rig, connecting it to a Mesa D-800 using a 1/4" speaker cable and SpeakON adapter. (I know...) When used in tandem wiith my S15-D it's absolutely devastating.

So I planned to just hook both of these cabs to the Acoustic Image amp yesterday evening... the S10-D was fine, but the S15X-D would not work using the SpeakON plugs, and I can't imagine why.

Bear in mind, I didn't have time to fiddle around with it last night... I simply daisy-chained from the S10-D to the S15X-D with a 1/4 speaker cable and ran offa' one channel with no problem. Still, I need to figure this one out for future modular purposes.

Anyone got an idea? Admittedly, I haven't ever used the SpeakONs on that S15X-D before... so it could be they are unhooked for some reason, but why? I'll play with it all some more, do some testing and report back, but any advice appreciated. :thumbsup:


*I did verify both channels on the amp are good.

*Also checked both SpeakON cables against knowns.

Last edited:
#943
The speakons on your s15xd use the 2+/2- instead of the usual 1+/1- terminals.

Some jack plates are selectable inside but most I've seen are not. It will say selectable on the plate if it is.

Otherwise you need to rewire a 4 pole speakon end or bag end does sell new jack plates with the combo speakon inputs with the usual 1+/1- wiring.

  • Like
Reactions: wave rider
#949
Wild Rice Chris said:
Just daisy chain it. You do not have two channels on the Clarus 2, you have two parallel output jacks. Electrically identical to daisy chaining the cabs.
Click to expand...

I did, to get through the gig, but it was a hincky-looking mess of cobbled together pieces I was lucky enough to have in the bag. :laugh:

Sorry about the terminology incorrectness. ;)

  • Like
Reactions: BasturdBlaster
#950
Having read through the thread BB linked, it looks like my best option is to avail myself of the advice the OP got and just have a cable made up especially for using this cab whenever I specifically want to use it this certain way. Simple enough... if I keep it marked.

Low Key said:
"...make yourself a custom speaker cable. This would have a standard 1-pins connector on one end that would go to your amp. On the cab end, you would have to have a 4 conductor speak-on connector (NL4) connected to the number 2 pins. This option would be the cheaper way to go."
Click to expand...

I wonder; if it would be possible to just modify a 4-pole?

  • Like
Reactions: BasturdBlaster
#952
EdwardofHuncote said:
Having read through the thread BB linked, it looks like my best option is to avail myself of the advice the OP got and just have a cable made up especially for using this cab whenever I specifically want to use it this certain way. Simple enough... if I keep it marked.



I wonder; if it would be possible to just modify a 4-pole?
Click to expand...


Oh yea, if the speakon that you used is a 4 pole, you can easily rewire it to 2+/2- , just be sure to mark it so it's easy to identify:thumbsup:

  • Like
Reactions: EdwardofHuncote
#953
BasturdBlaster said:
Oh yea, if the speakon that you used is a 4 pole, you can easily rewire it to 2+/2- , just be sure to mark it so it's easy to identify:thumbsup:
Click to expand...

Second time today BB, 'preciate it! We got a pretty good pro audio shop here in Roanoke Invalid Link Removed ...they can fix me up with one.

  • Like
Reactions: BasturdBlaster
#954

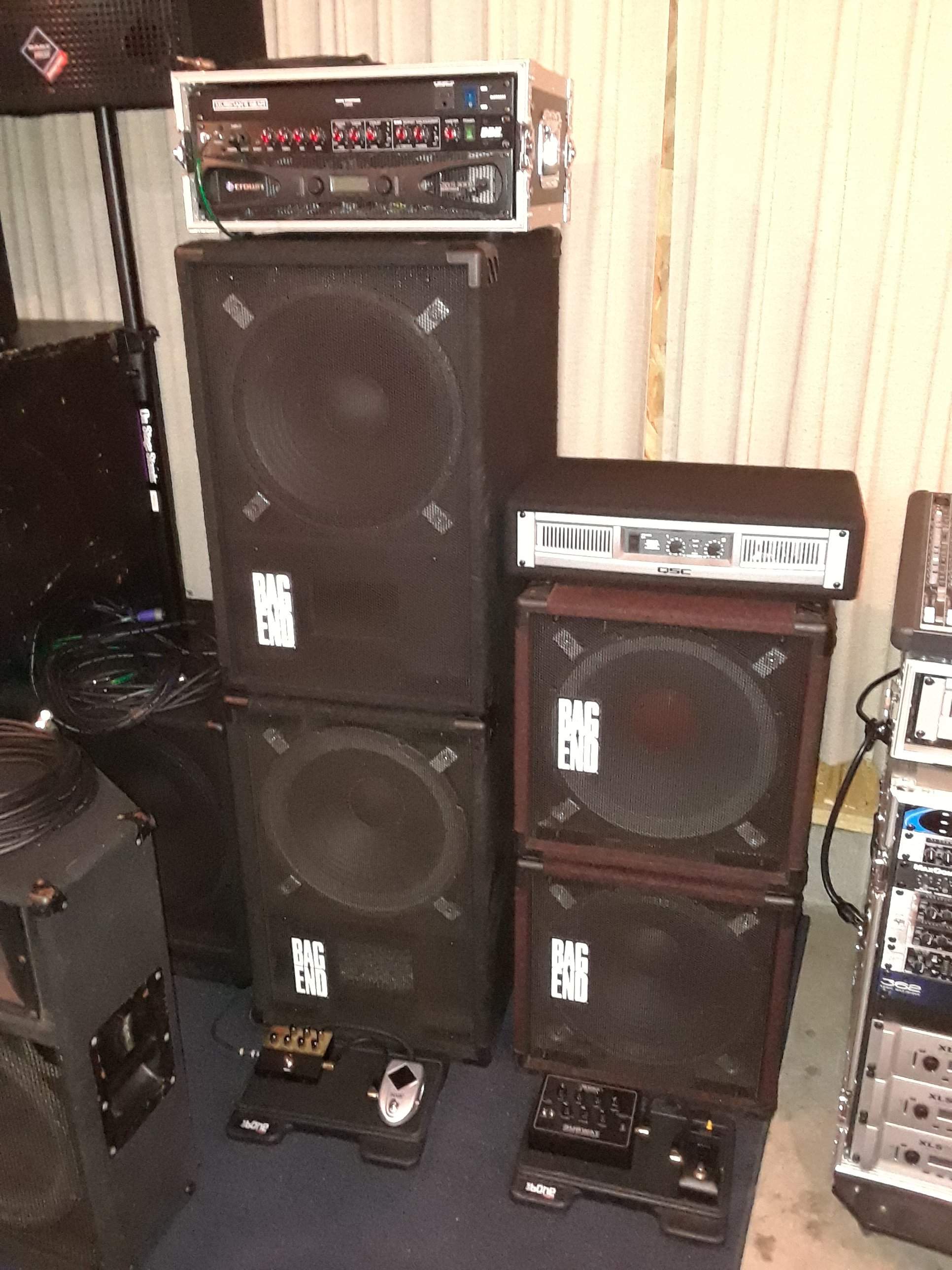

Family portrait, hehe

  • Like
Reactions: Murch, wave rider, winston and 5 others
#955
  • Like
Reactions: Jaco Pastashoot and BasturdBlaster
#958
John D Harris said:
Sorry if this has already been addressed, but seems like with the efficiency of the BE cabs, they would match up well with lower wattage tube heads (like Ampeg V4B) & probably the Mesa Walkabout.
How many of you have gigged BE cabs with those?
Click to expand...
Ok, did a quick search on walkabout in this thread - apparently lots of love for the S15-D pair with the WA!

#959
John D Harris said:
Ok, did a quick search on walkabout in this thread - apparently lots of love for the S15-D pair with the WA!
Click to expand...

Hmm. Never tried my old WalkAbout with the Bag Ends... I need to do that. I prefer to keep it docked in the Scout 15 combo-cab, but it'd be fun to try. Most of the time I'm using either a Mesa D-800 or an Acoustic Image Clarus II with the Baggies.
