Show me your compact pedalboard setup

[kevk]

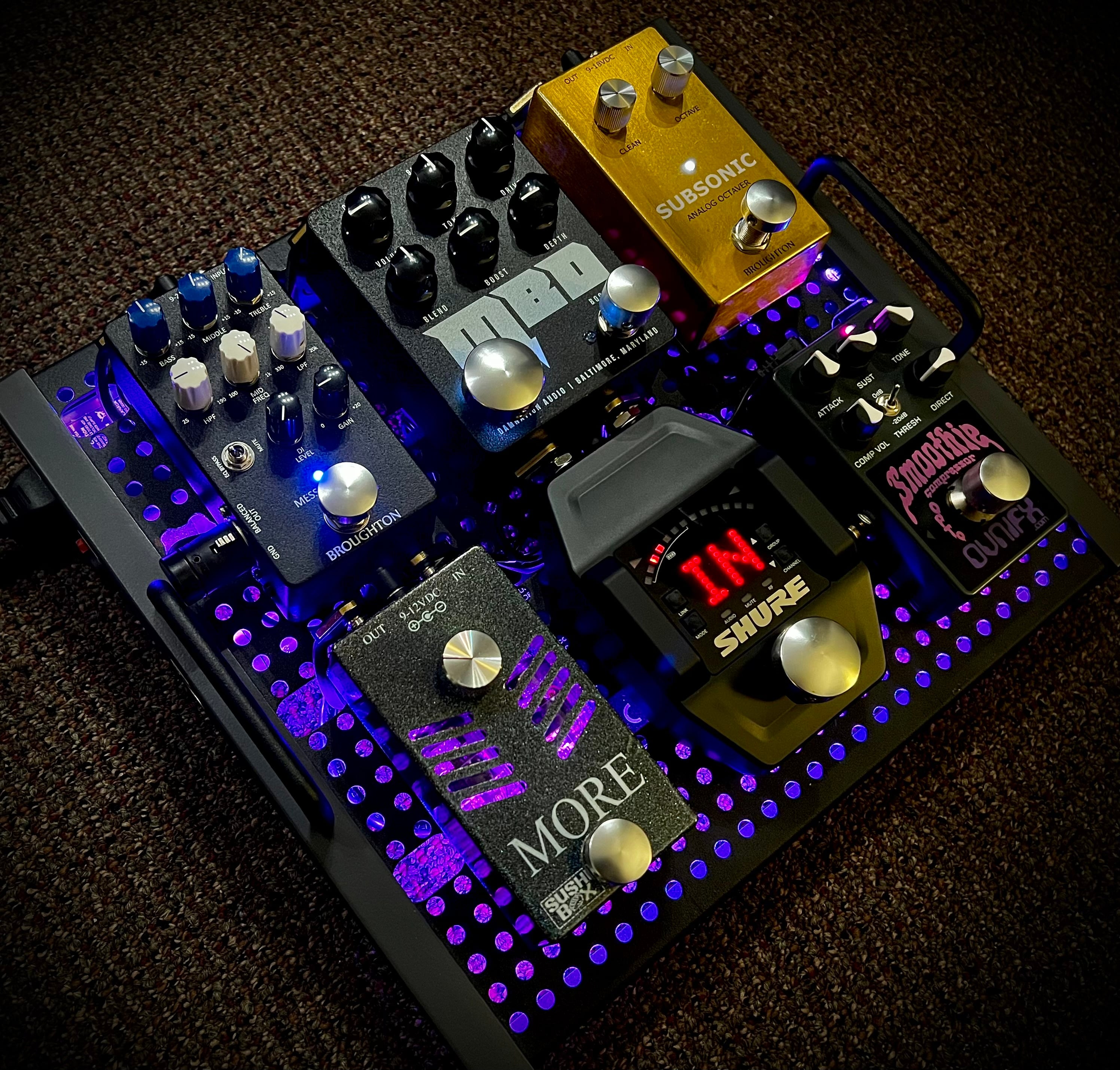

Updated TA Duo13 pb—Broughton Messenger Jr and Shure GLXD+ added…

GLXD+>Smoothie>MORE>Subsonic>MBD3>mThumpinator>Messenger Jr



[MascisMan]

Updated TA Duo13 pb—Broughton Messenger Jr and Shure GLXD+ added…View attachment 5272829View attachment 5272830
GLXD+>Smoothie>MORE>Subsonic>MBD3>mThumpinator>Messenger Jr

This looks great!

Quick question. Did you custom order your TA Duo 13 (back when they were offering this option) or did you chop down a Duo 17?



[kevk]

This looks great!

Quick question. Did you custom order your TA Duo 13 (back when they were offering this option) or did you chop down a Duo 17?

I actually chopped down my Duo24…I like/still use my Duo17, but the Duo24 was just too large for my taste/need.

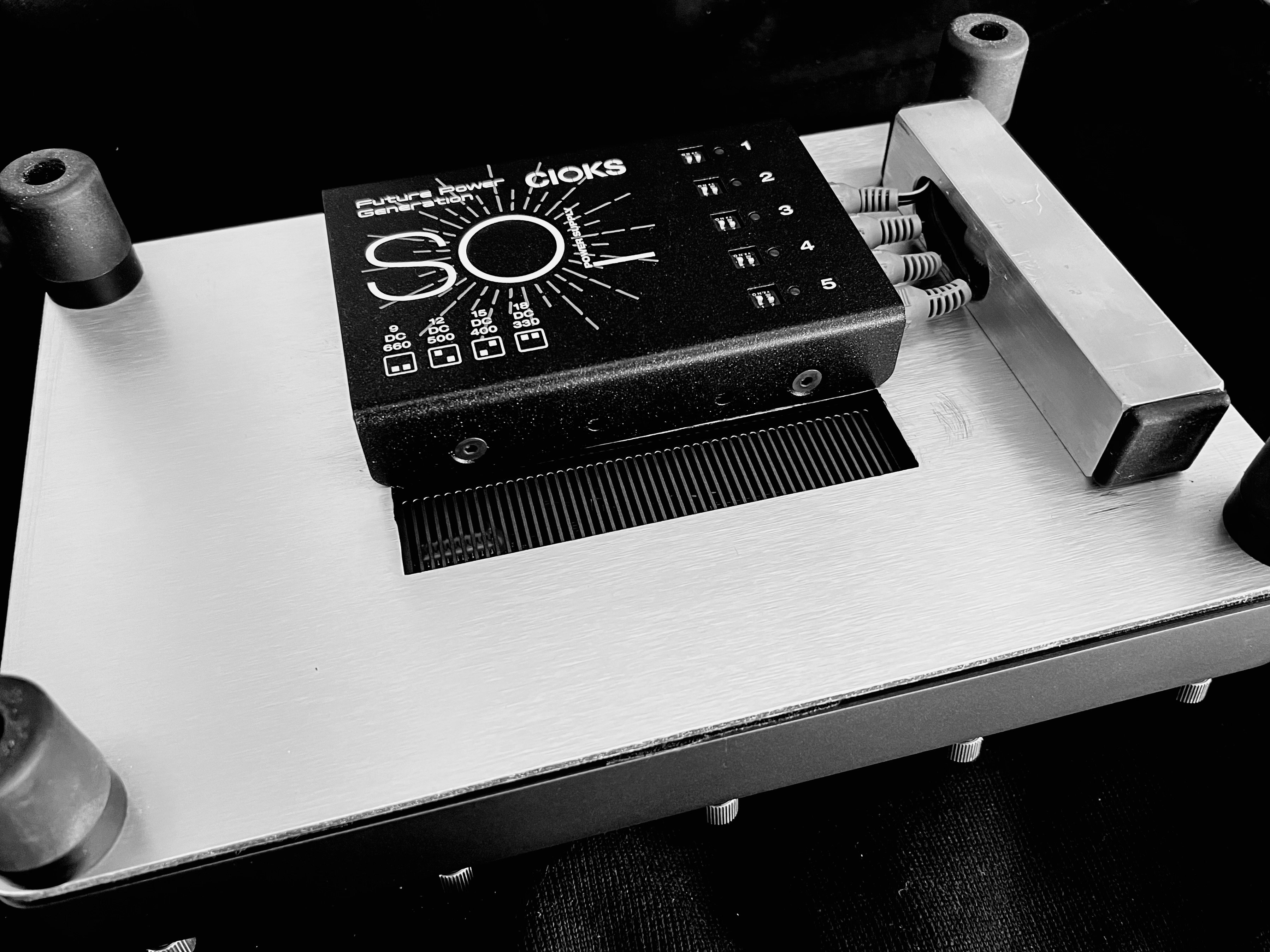

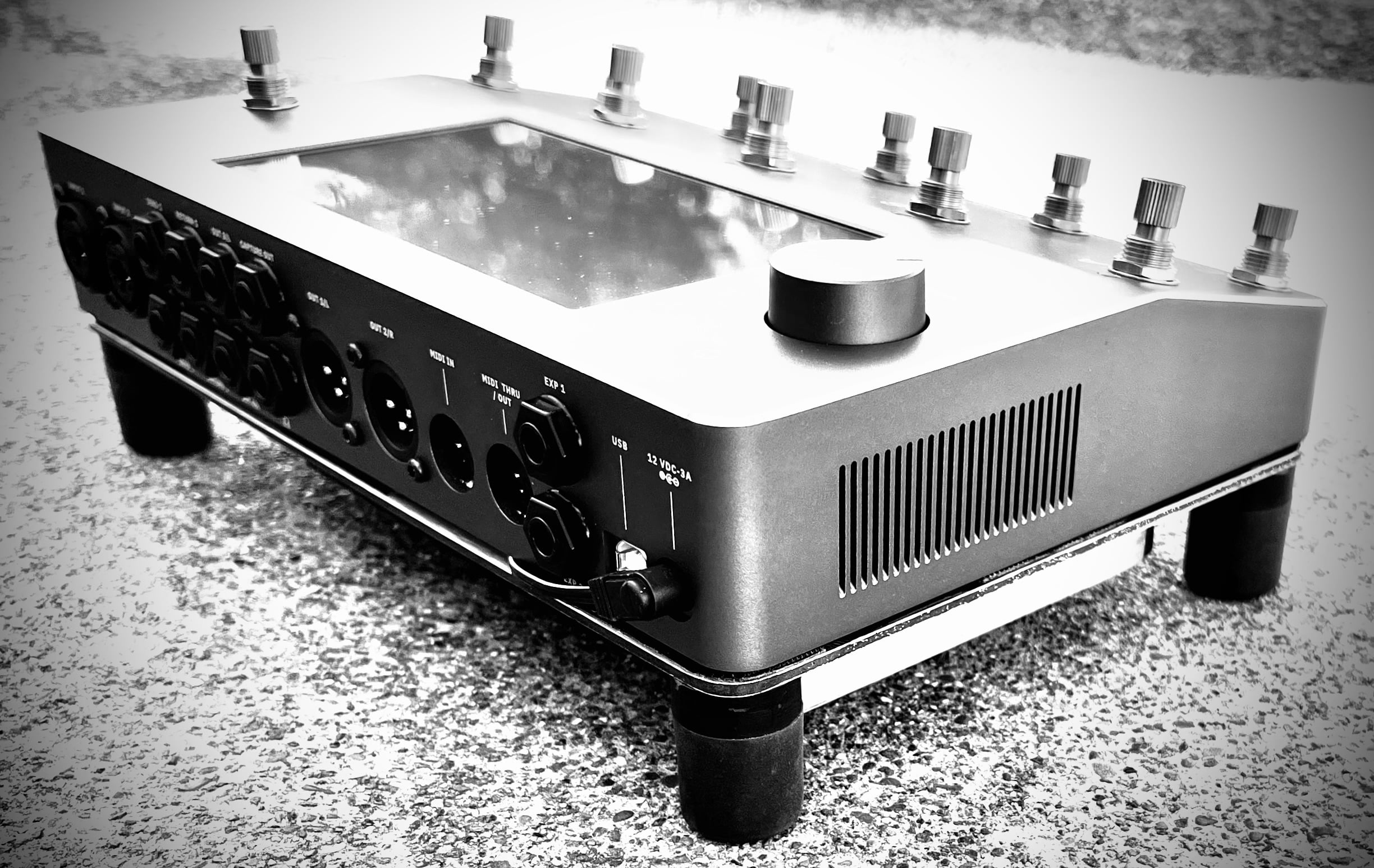

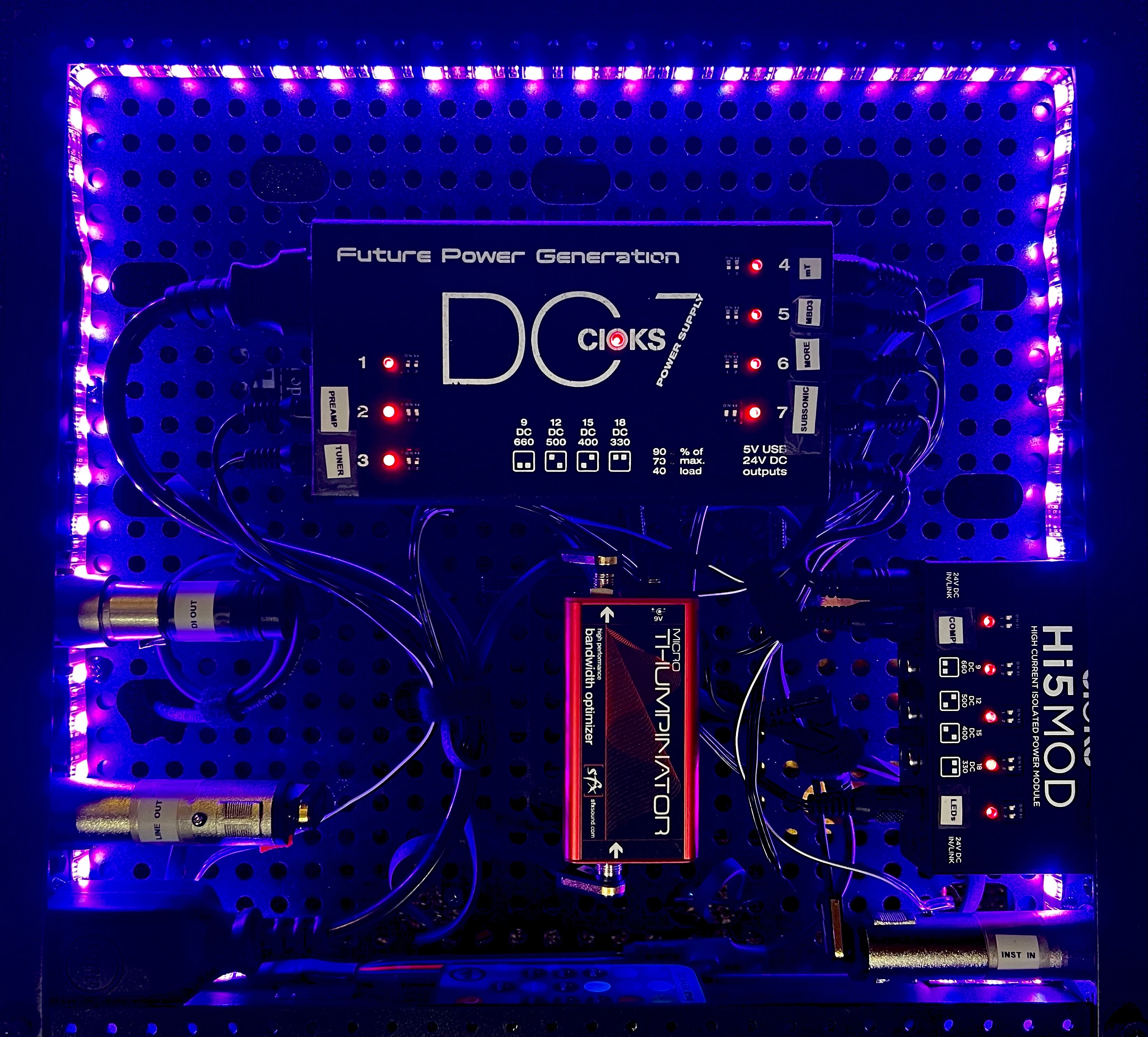

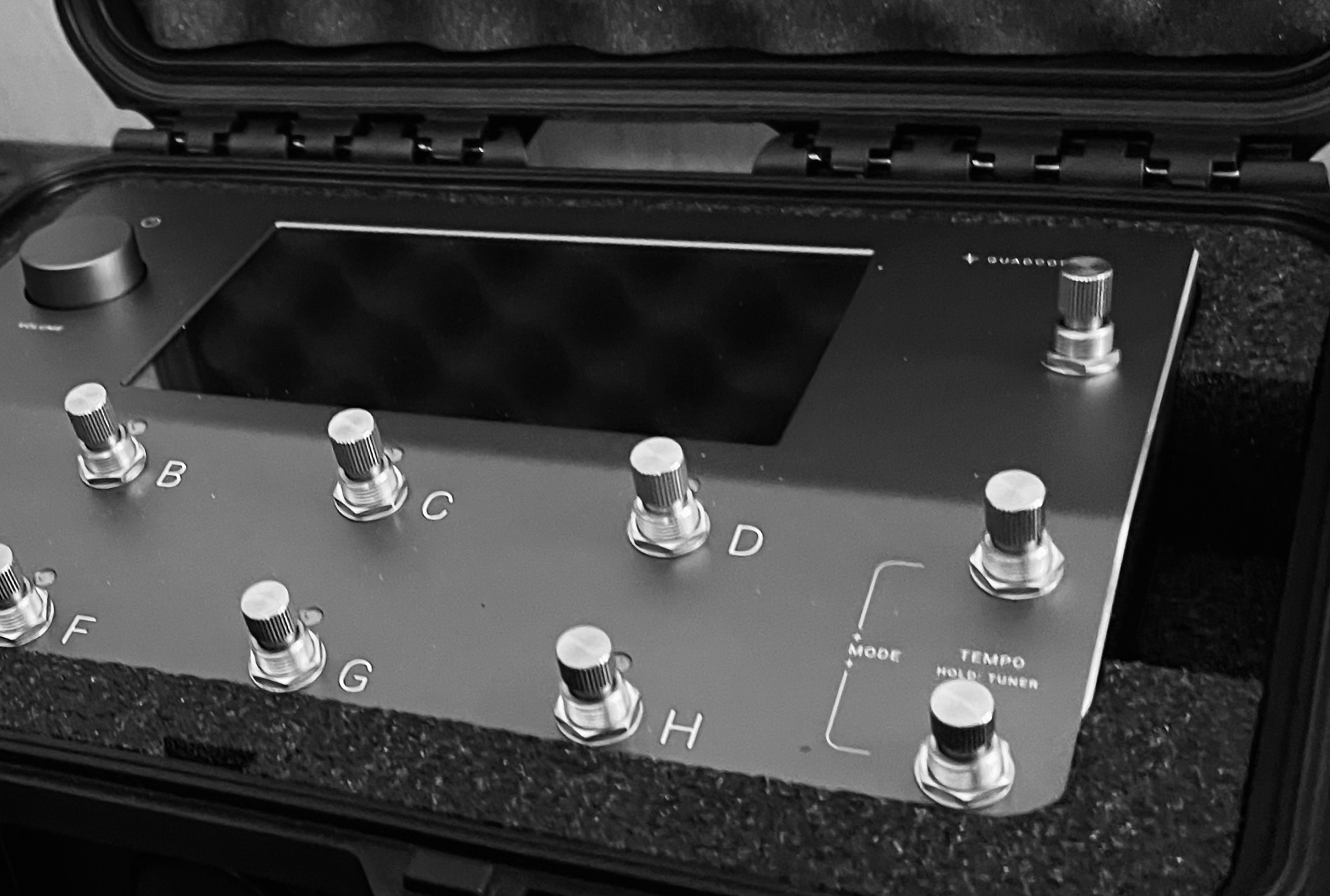

Fwiw.…I decided on the Duo13 size, figuring that I’d put my Quad Cortex on it, which fits perfect with a single row of holes open on each side for LED lighting. Ultimately decided to build a custom standalone pb for the QC, but have found the Duo13 to be quite optimum for ^^^ use. (Pb design-work is one interest that keeps my “retired” brain challenged …)



[ExaltBass]

I actually chopped down my Duo24…I like/still use my Duo17, but the Duo24 was just too large for my taste/need.

Fwiw.…I decided on the Duo13 size, figuring that I’d put my Quad Cortex on it, which fits perfect with a single row of holes open on each side for LED lighting. Ultimately decided to build a custom standalone pb for the QC, but have found the Duo13 to be quite optimum for ^^^ use. (Pb design-work is one interest that keeps my “retired” brain challenged …)View attachment 5273095 View attachment 5273094

Well done my friend!



[Adamixoye]

I actually chopped down my Duo24…I like/still use my Duo17, but the Duo24 was just too large for my taste/need.

Fwiw.…I decided on the Duo13 size, figuring that I’d put my Quad Cortex on it, which fits perfect with a single row of holes open on each side for LED lighting. Ultimately decided to build a custom standalone pb for the QC, but have found the Duo13 to be quite optimum for ^^^ use. (Pb design-work is one interest that keeps my “retired” brain challenged …)View attachment 5273095 View attachment 5273094

Are you actually using the Cioks if you just have the Quad Cortex?



[kevk]

Are you actually using the Cioks if you just have the Quad Cortex?

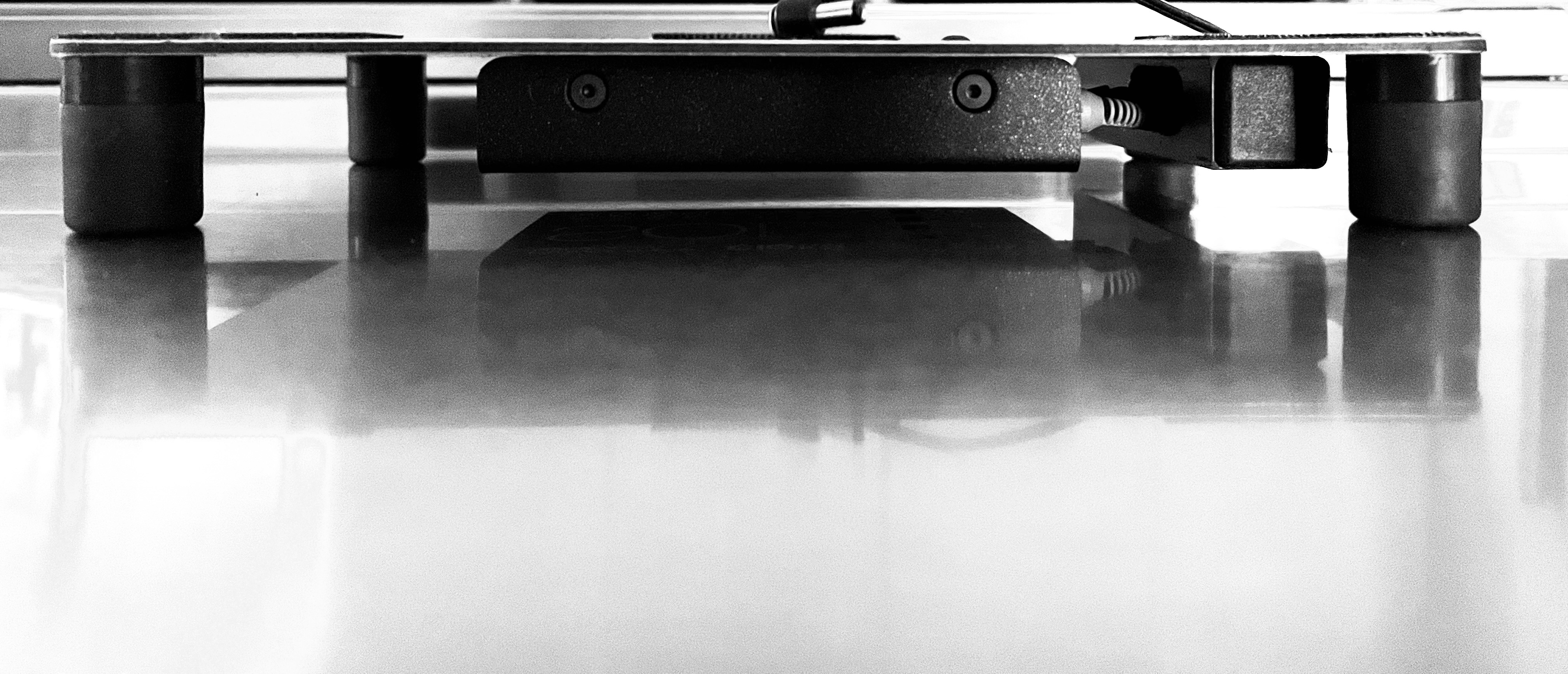

Good question, yes—I’d rather just take it out of a modded SKB case and plug in a typical IEC power cable. My QC is only 1/8” higher from the floor, vs sitting on a PT Metro board. (There’s room for a 10’ IEC cable at the bottom of the SKB case…)



[Zanshin_]

Dang, that's a sexy set up.



[MascisMan]

I actually chopped down my Duo24…I like/still use my Duo17, but the Duo24 was just too large for my taste/need.

Fwiw.…I decided on the Duo13 size, figuring that I’d put my Quad Cortex on it, which fits perfect with a single row of holes open on each side for LED lighting. Ultimately decided to build a custom standalone pb for the QC, but have found the Duo13 to be quite optimum for ^^^ use. (Pb design-work is one interest that keeps my “retired” brain challenged …)View attachment 5273095 View attachment 5273094

What did you use to chop it down? Band saw?



[kevk]

What did you use to chop it down? Band saw?

Table saw with 10” metal cutting blade…had to take several passes to clean up the cut side, as the blade always wanted to force the board slightly off line. (Needed to take all the saw safety features off, for the board to pass thru…) It’s the only tool I had available.

If I were to do another one, I’d go find a local metal shop and have them laser cut it quickly and cleanly.

Edit/add: I spent quite a bit of time figuring out precisely where to cut so that the end cap and handle screws (when reinstalled) fit properly and looked OEM/same distance to the first set of LED holes as the other side.



[wolffire99]

Updated TA Duo13 pb—Broughton Messenger Jr and Shure GLXD+ added…View attachment 5272829View attachment 5272830
GLXD+>Smoothie>MORE>Subsonic>MBD3>mThumpinator>Messenger Jr

This board so tastefully put together.



[WG Plum]

Here's a little board I put together today.



[EricG]

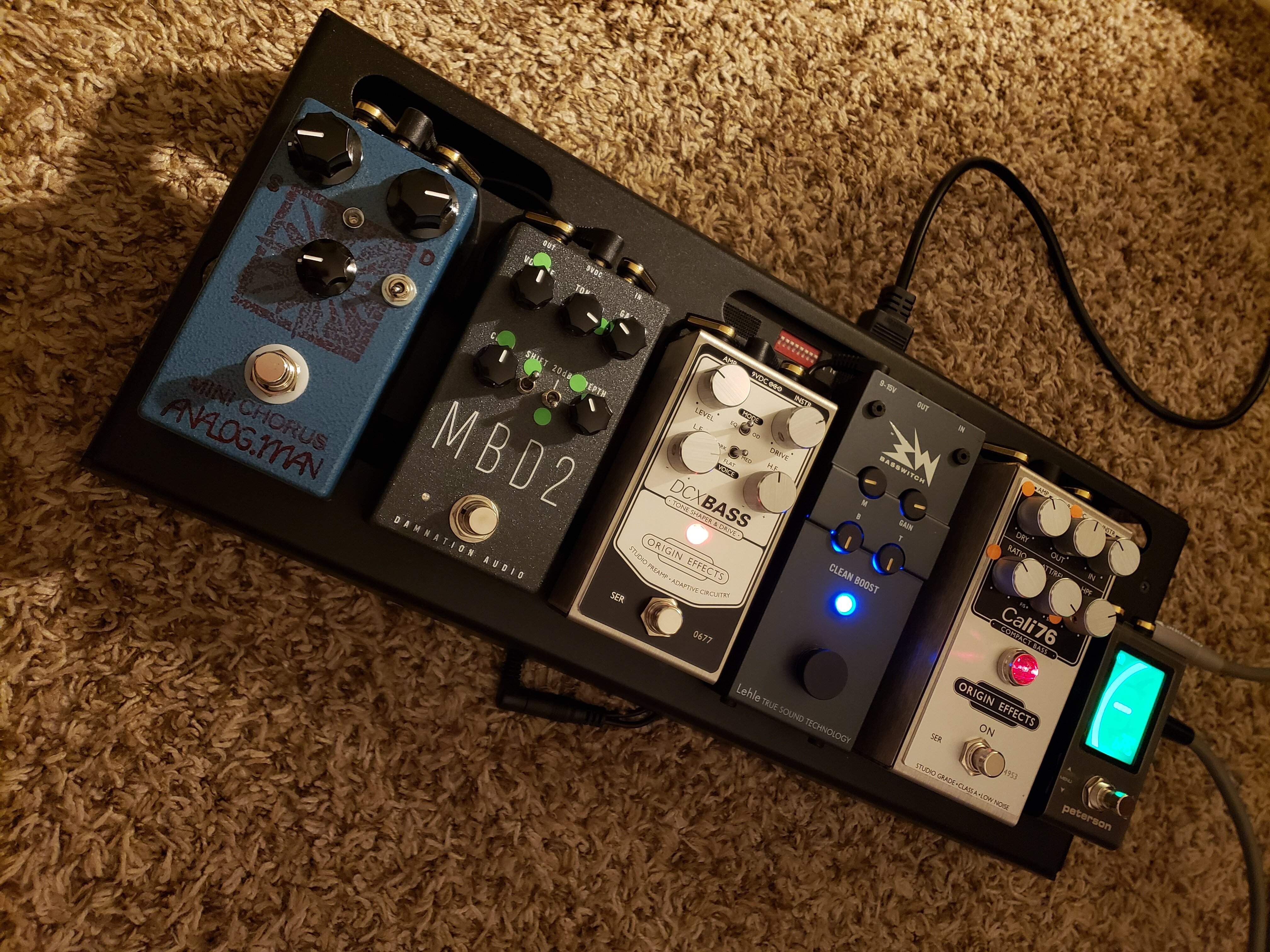

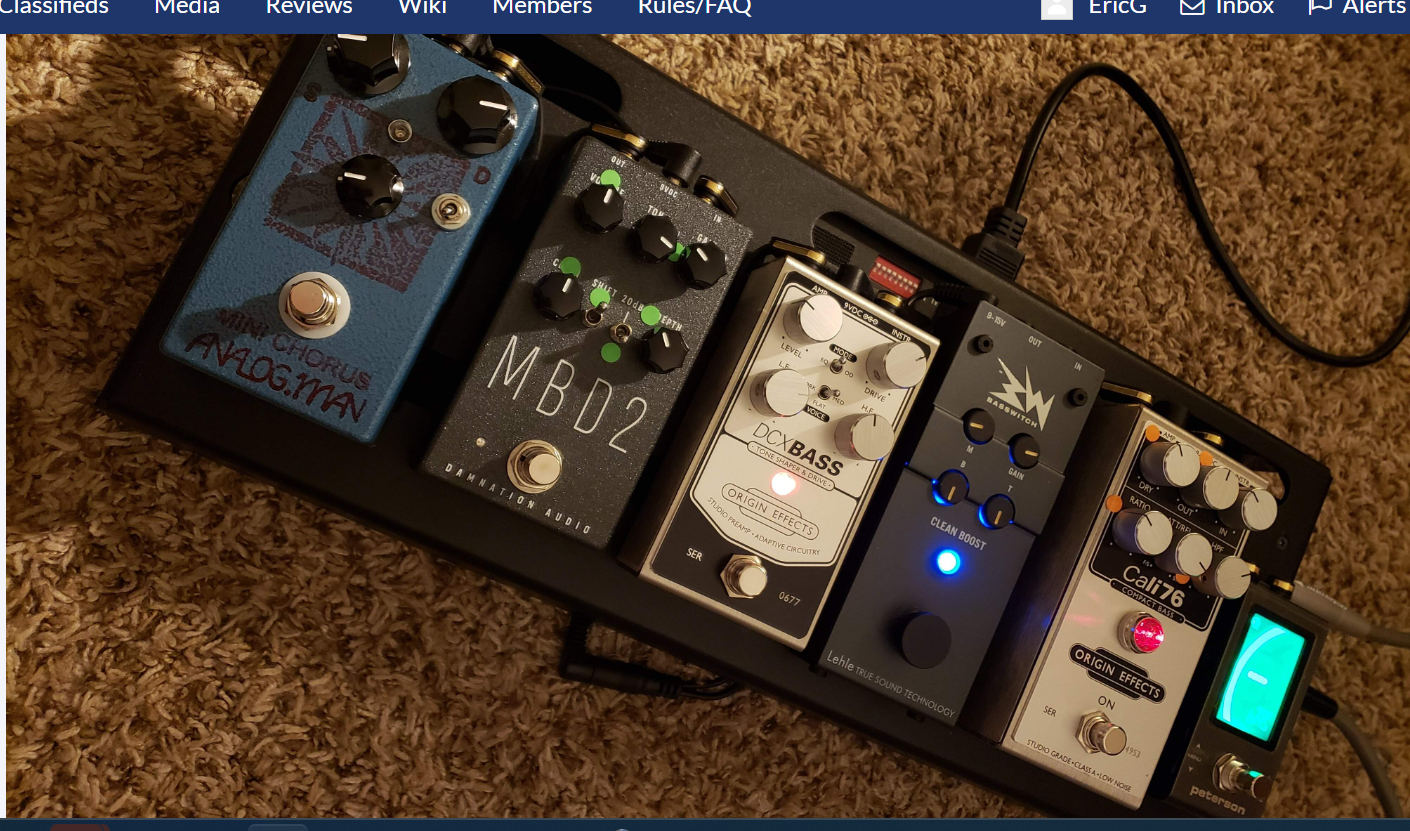

I'm liking these EBS patch cords... The DCX is pretty cool too. Still dialing that in.
View attachment 5117364

@HeavyJazz ...
That pedal board is the neatest setup ever. What's the pedal board brand?



[prndltech]

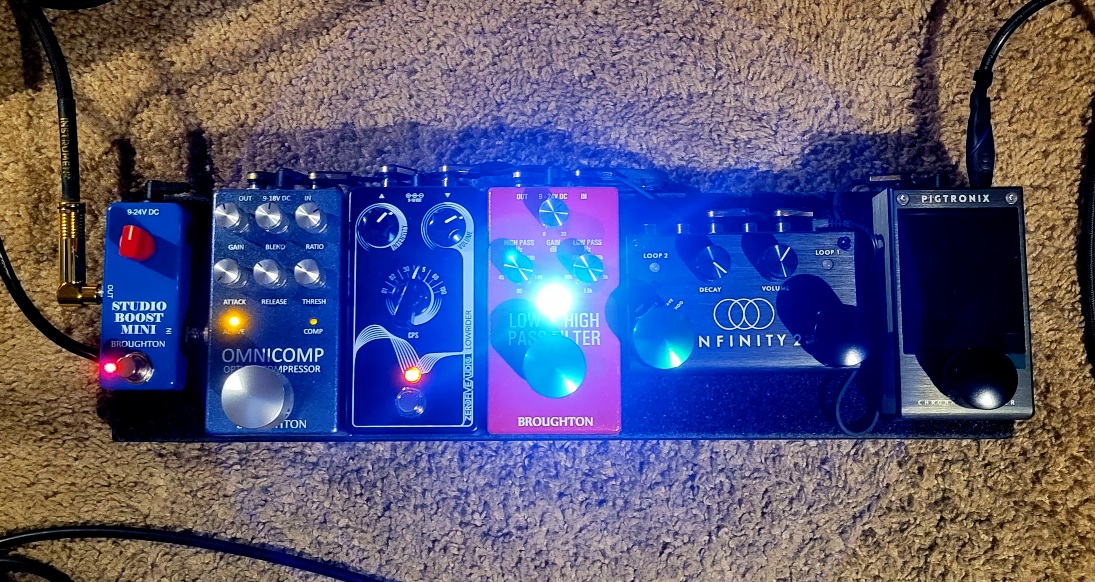

i might be in the wrong thread but i consider this as a compact board because i tried to fit as much as i can on a PT classic jr. and also that broughton studio boost mini makes such a big difference…View attachment 5275137

that’s very cool… and clean! But one thing it is not, is compact



[darkhalf]

that’s very cool… and clean! But one thing it is not, is compact

thank you lol. deleted it so i wont derail this thread



[prndltech]

thank you lol. deleted it so i wont derail this thread

Like you said, it was compact to you…

I would consider compact:
The top row
The middle row
Or the bottom row

mounted on a smaller board. That’s just me though



[wolffire99]

thank you lol. deleted it so i wont derail this thread

i wanted to find out why you like the Broughton mini boost so much.



[sloppy_phil]

Here's a little board I put together today.

View attachment 5274751

This is... like... um, where's all the shadooby?



[HeavyJazz]

View attachment 5274836
@HeavyJazz ...
That pedal board is the neatest setup ever. What's the pedal board brand?

Just a Voodoo Lab Dingbat.



[GMC]

I actually chopped down my Duo24…I like/still use my Duo17, but the Duo24 was just too large for my taste/need.

Fwiw.…I decided on the Duo13 size, figuring that I’d put my Quad Cortex on it, which fits perfect with a single row of holes open on each side for LED lighting. Ultimately decided to build a custom standalone pb for the QC, but have found the Duo13 to be quite optimum for ^^^ use. (Pb design-work is one interest that keeps my “retired” brain challenged …)View attachment 5273095 View attachment 5273094

Is that a pedal on a board or a board on a pedal !?!



[GMC]

My board is about to be massively re-worked and re-engineered. I'm about to replace my pair of H9's with a H90. That's going to require some wood work! LOL!
