Show me your compact pedalboard setup

[splmurphy]

What don't you like about the chorus? When I had it, I loved it. Just curious

I'm not sure that I don't like it as such, it's just not sitting right.... I know that doesn't really make sense, but I know the sound I'm after and I'm not sure that's doing it.

TBH, that's a weekly thing. That board gets pulled apart regularly.



[bahiista]

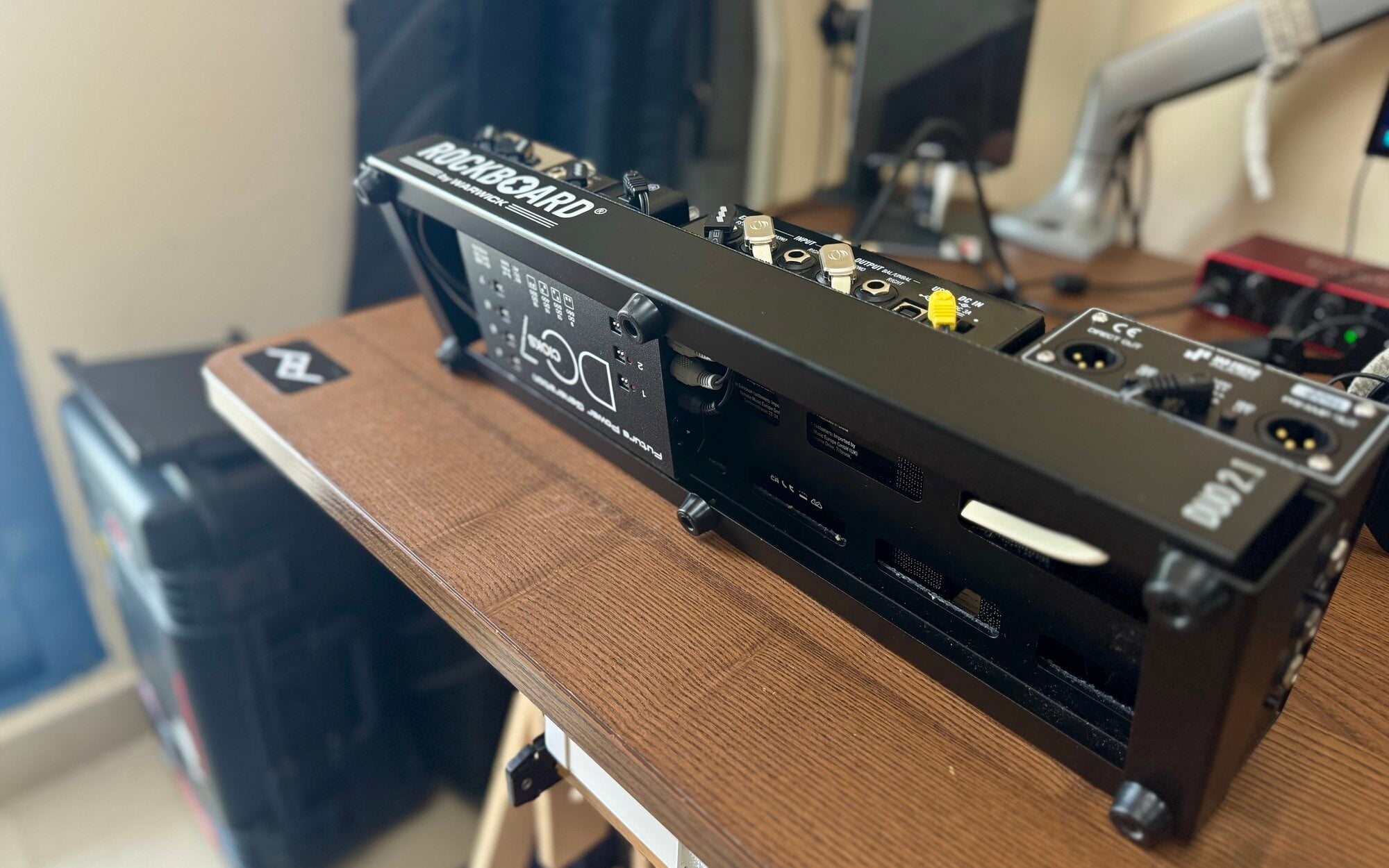

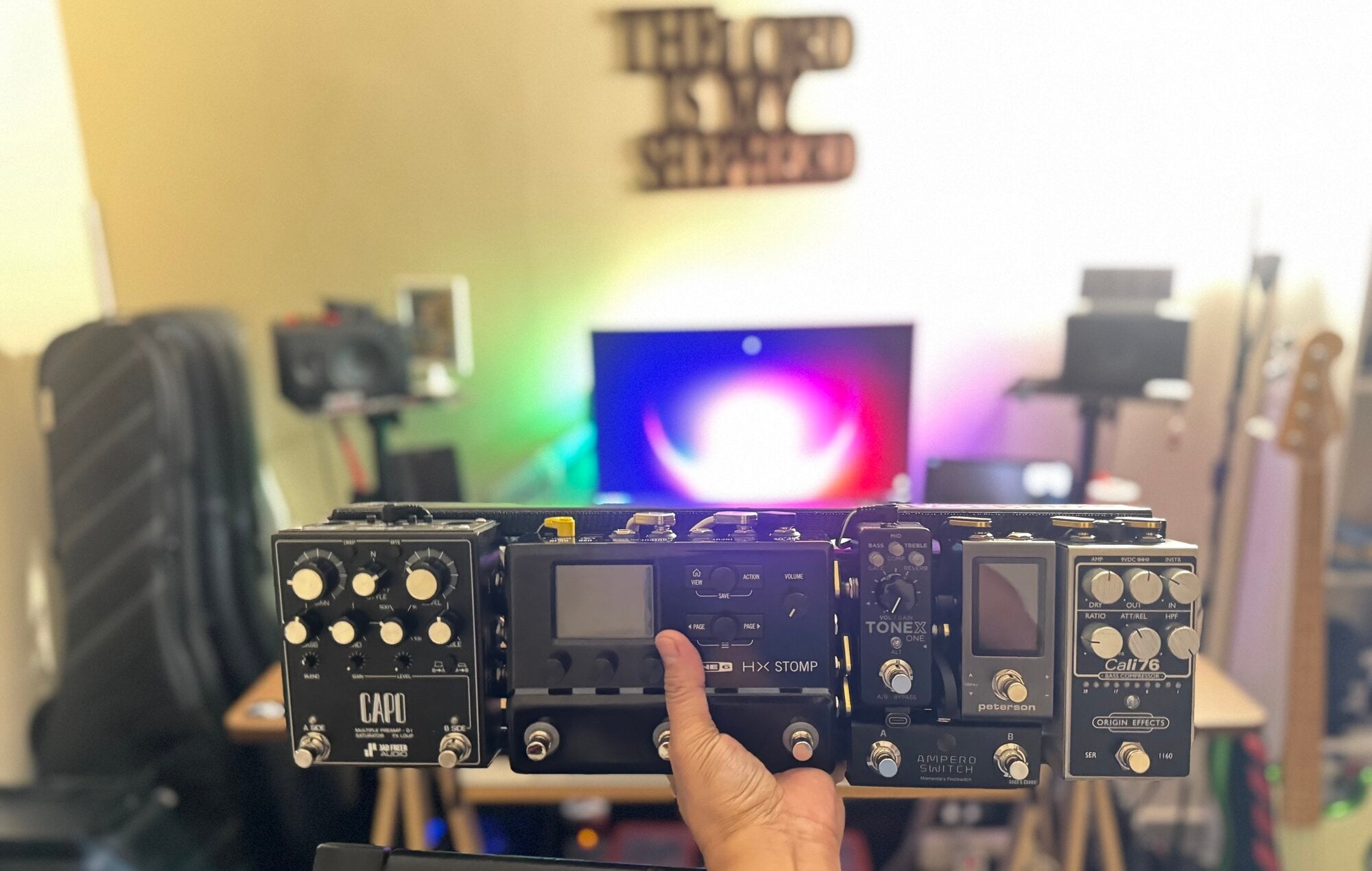

Church board
I use Tonex with 2 choices of amp sim, ampeg and fender, no cab. Another option is having a 100% signal from the bass guitar in case im using an amp in the venue. HX is for effects only. I can as well bypass both HX and Tonex using Cali + Capo only

Signal chain: Tuner > Cali > Capo (pre loop > HX (fx loop > Tonex ))

So far i like the options



[StrivingOn]

Where are all the cables underneath? Immaculate!



[StrivingOn]

4 compact and one mid (top board)…
EDIT: Pls pardon the settings as some have been moved upon transport
View attachment 7247346

That’s some acquisitive tendencies there…



[HeavyJazz]

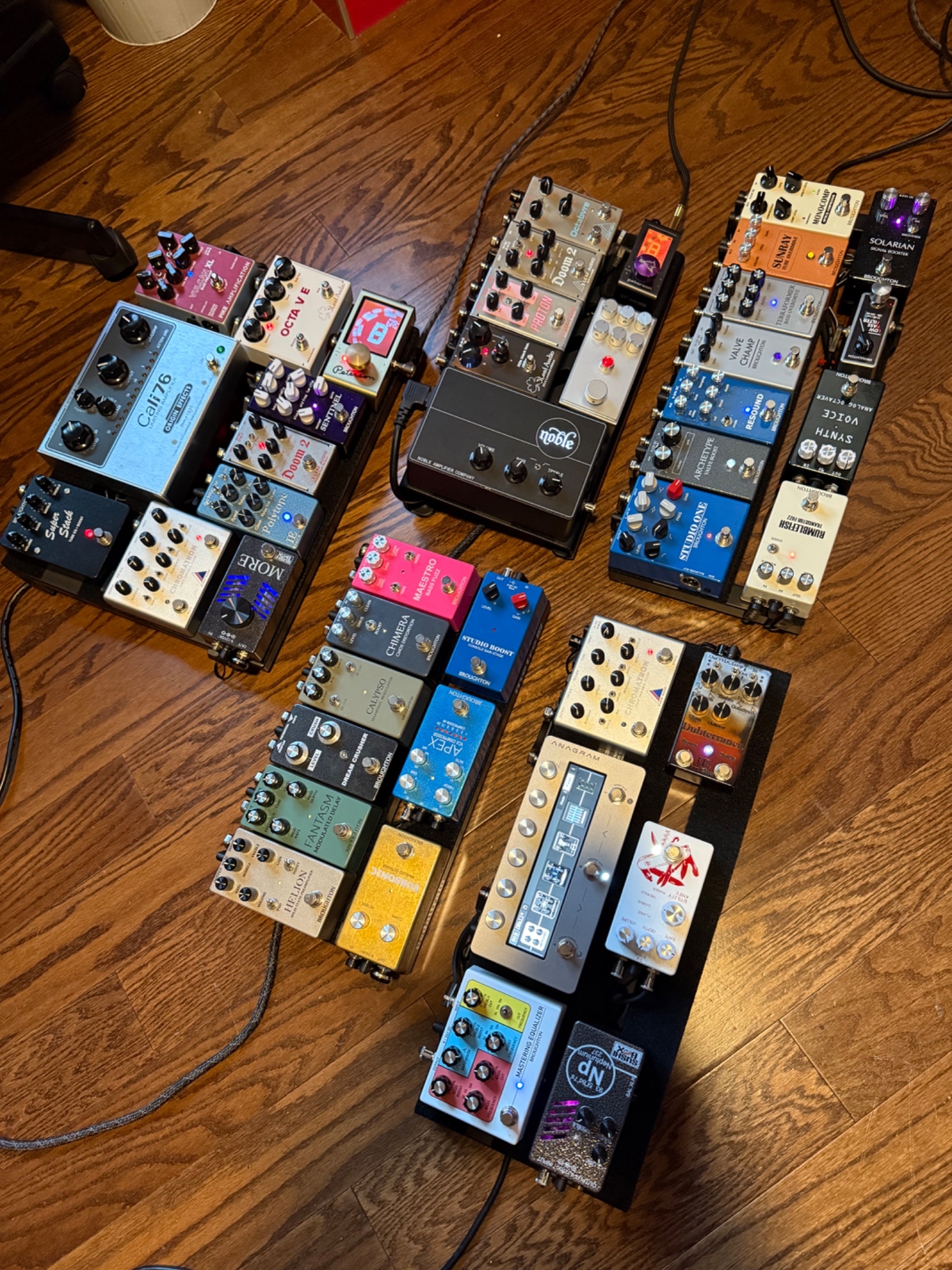

Of course the downside with a board is I start needing duplicates for different applications - for when a board isn't really appropriate.



[Basssy]

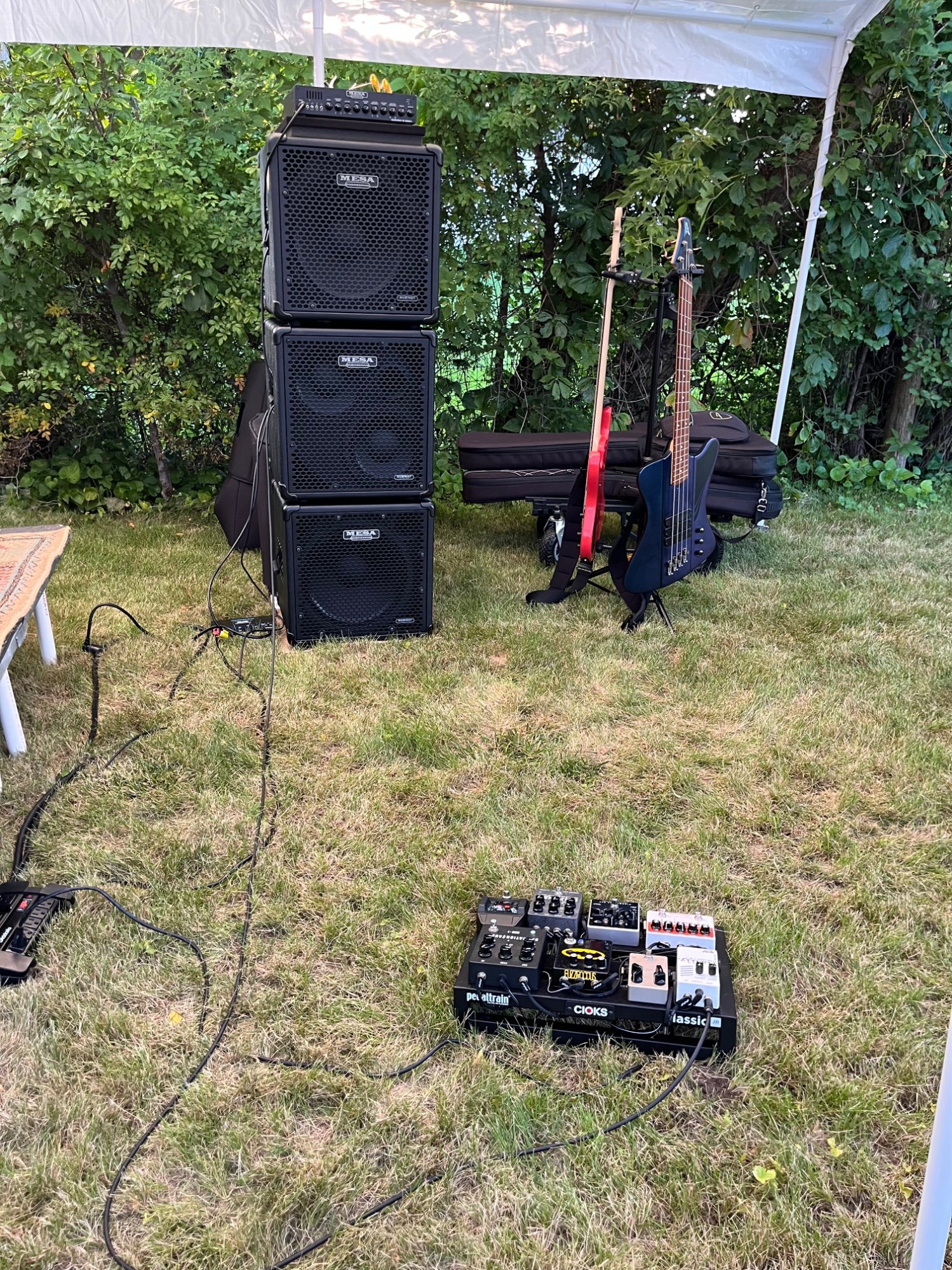

Yeah...not exactly a compact board, but this is my go-to-outdoors board at-the-moment.

So many flavors of OD / boost available for a 70's / 80's classic good-time rock "N" roll band!

View attachment 7284492View attachment 7284493

Wow , amazing setup



[poochiecheeks]

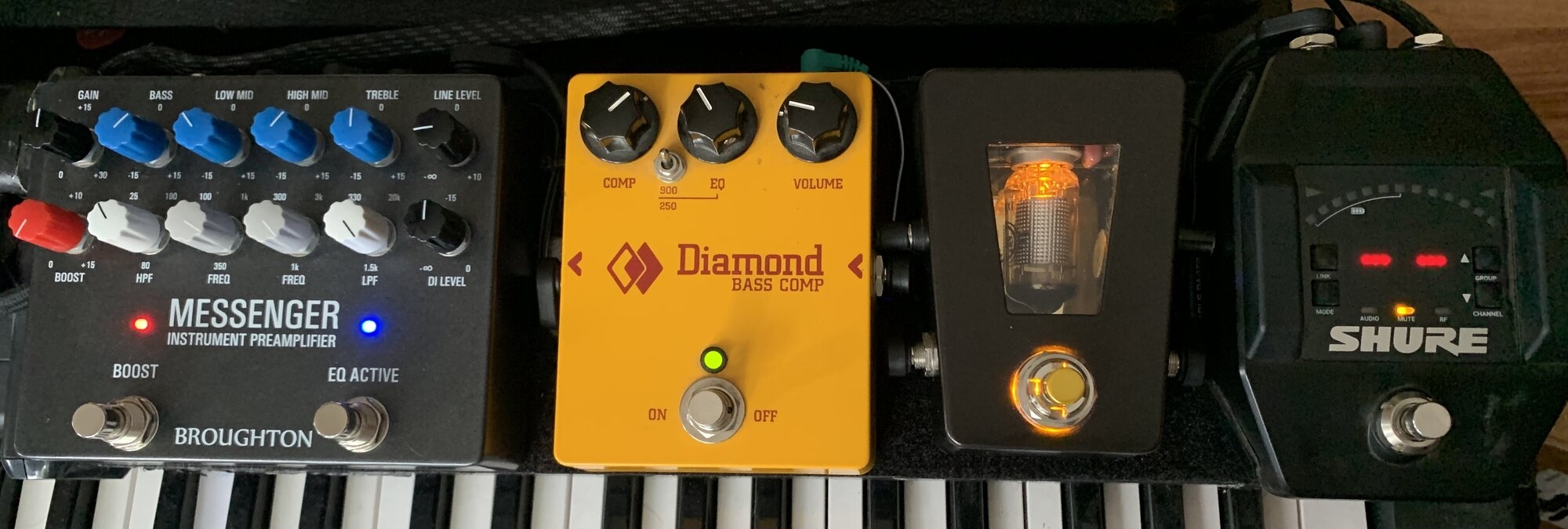

I'm not sure it can get much more compact than this

Tuner/Wireless rec. -> Edison at max boost -> Passive volume pad back to unity gain -> HPF set around 70-80Hz -> Diamond compressor -> Messenger Di.

All on a pedaltrain nano board (logos taped over)

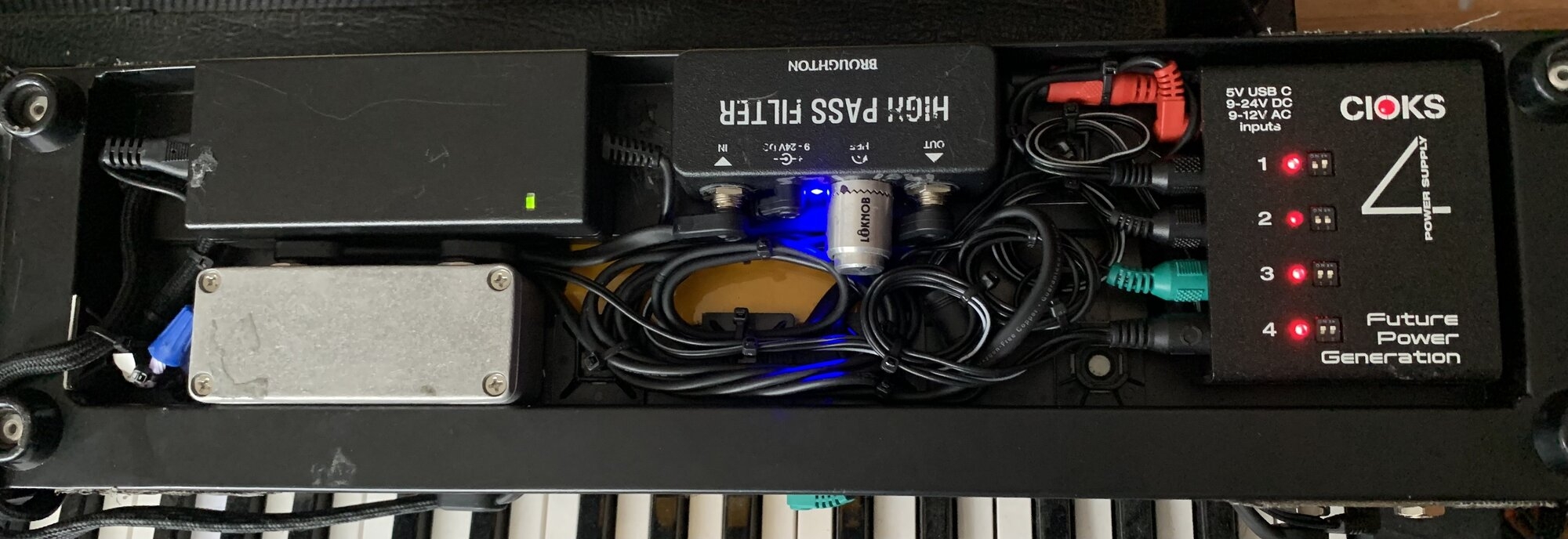

I've had the Cioks, the HPF and the Diamond forever, the other stuff is newer. Had to source a 1A 24v PSU to give the cioks its full rated current output, not like it needs it. The volume pad is literally a 100K linear pot with two jacks in a box, made for me by saturnworks. The Messenger is cool but the HPF knob doesnt work. The LPF knob is the best feature by far.

I have no idea if the Edison sounds different at full boost or unity gain, but I had the volume pad and figured might as well. I haven't considered any tubes to try in there, if anyone has I would love to know.



[midichlorine]

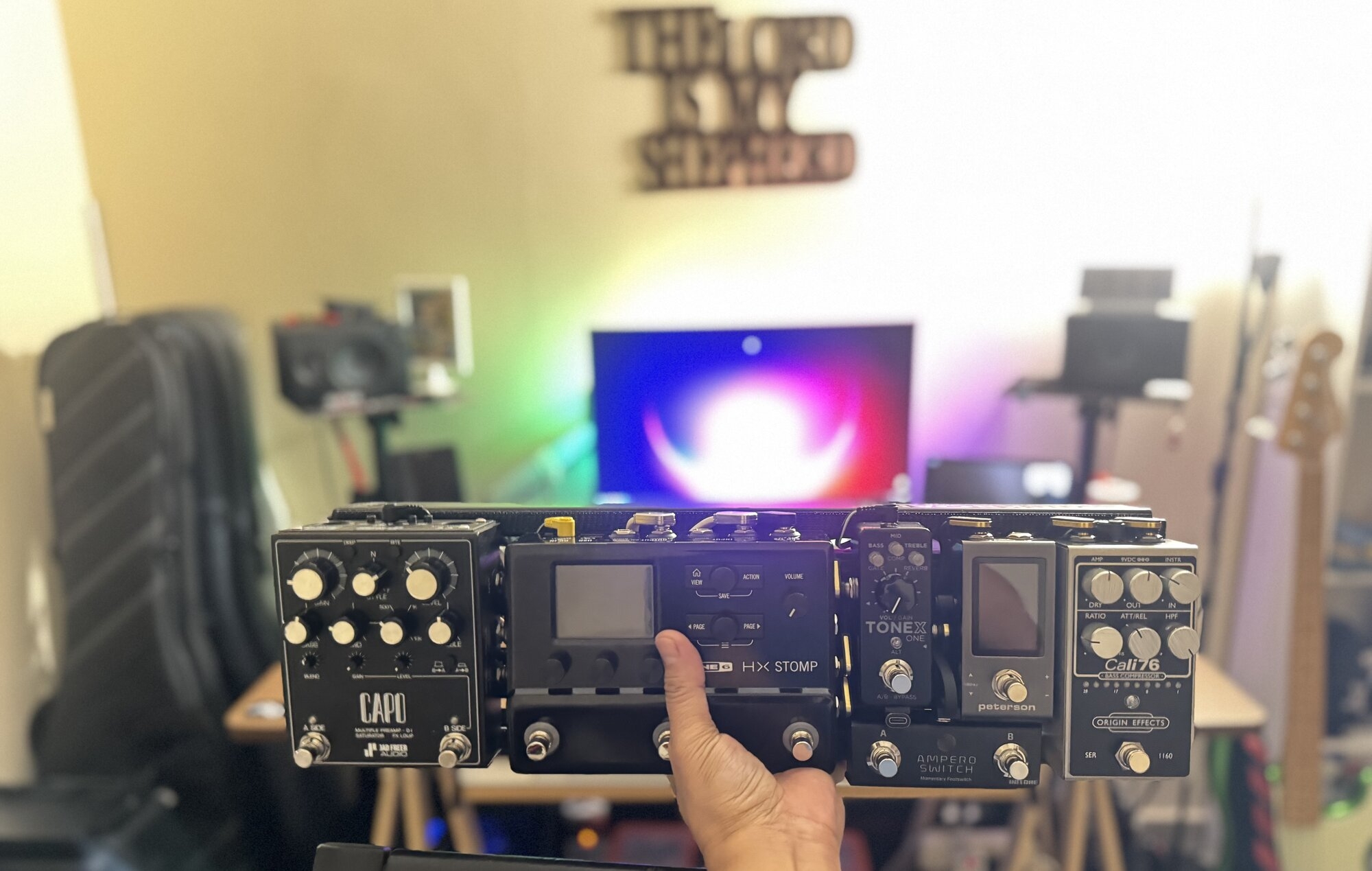

Church board
I use Tonex with 2 choices of amp sim, ampeg and fender, no cab. Another option is having a 100% signal from the bass guitar in case im using an amp in the venue. HX is for effects only. I can as well bypass both HX and Tonex using Cali + Capo only

Signal chain: Tuner > Cali > Capo (pre loop > HX (fx loop > Tonex ))

So far i like the options

View attachment 7288341
View attachment 7288340

Always on point!



[darev]

Of course the downside with a board is I start needing duplicates for different applications - for when a board isn't really appropriate.

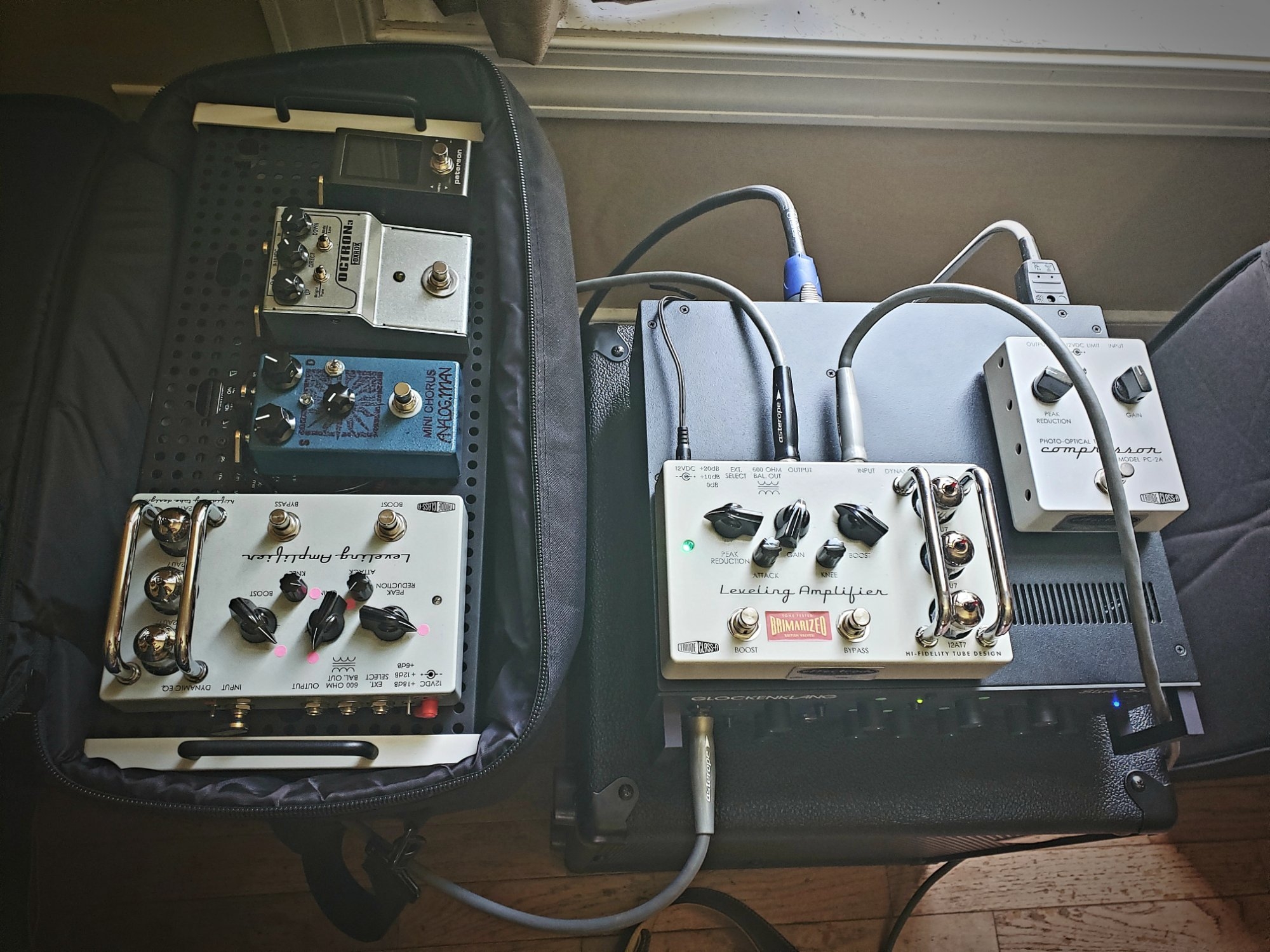

View attachment 7289850

Very nice. Whole lotta warm optical compression right there. How do you feel about or like the Brimarized tubes vs. the stock or JJ tubes?



[HeavyJazz]

Very nice. Whole lotta warm optical compression right there. How do you feel about or like the Brimarized tubes vs. the stock or JJ tubes?

There is certainly a distinct difference between the two. Both sound exceptional... The JJ-tubed version is cleaner while the Brimars are a touch thicker and add their own character, but not at the expense of clarity. The Brimars are perfect for recording when you can really shape everyone's subtleties. Both are 5-star, but I don't like reaching for the pedalboard for tracking. So, I had to choose one of them... Either would have been a good choice.



[midichlorine]

This turned out pretty cool!
Metro 16 considered compact?
Gotta say
The cali76 and the regal with a hint of kinky boost from the hx stomp then lowrider is pretty close to perfect!
Capo needs no ego boost.



[bucephylus]

Current workin’ Nano board:



[lomo]

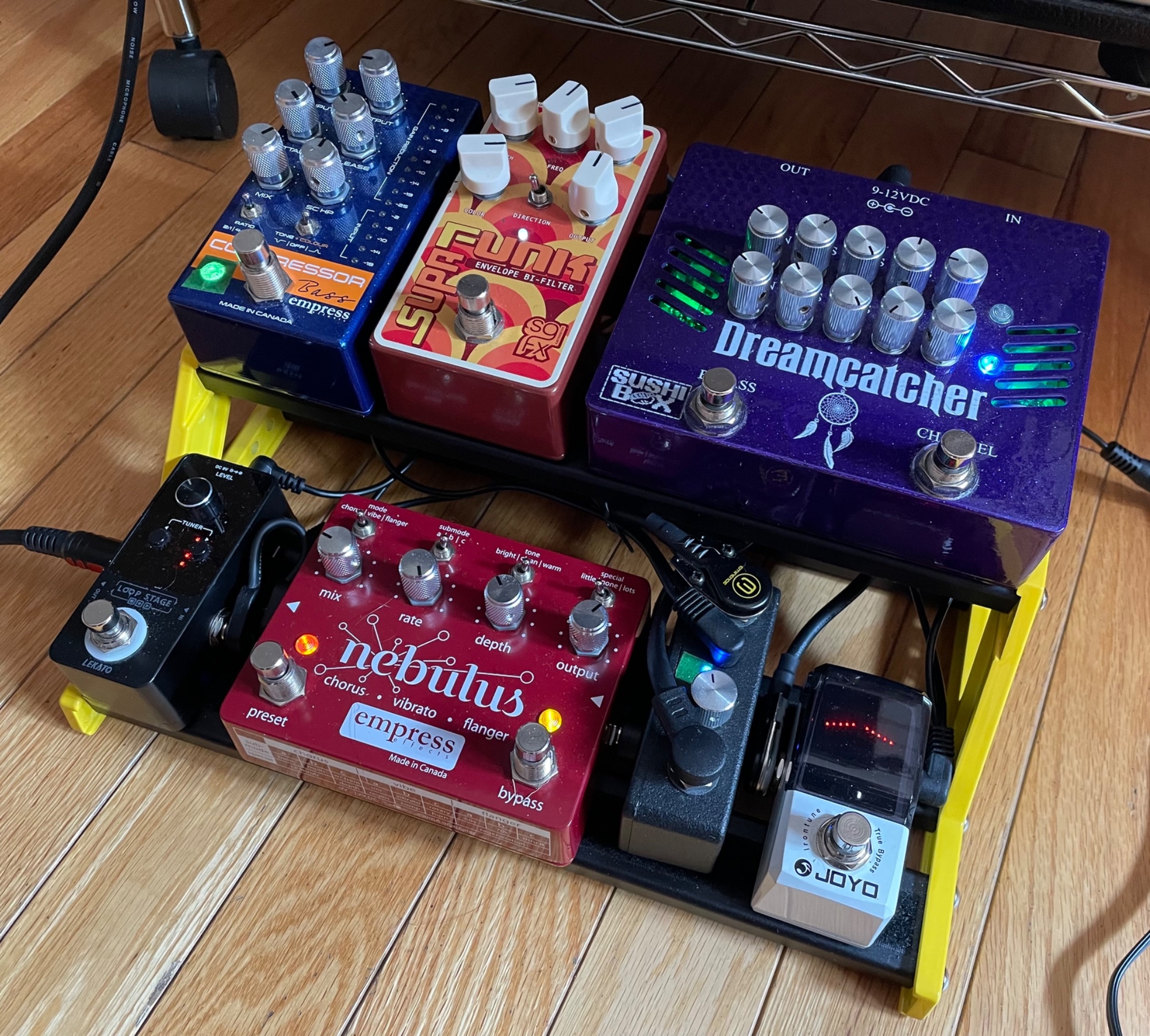

My current "complete" board (as opposed to my bare bones 5.5x13.5 incher that does not have a filter or looper and uses a single channel sushi pre). This one is still small enough to sit atop a head at 9x12". After being a long time believer in compression first in chain, I am really enjoying it after the filter and overdrive.



[FretRiff]

My current "complete" board (as opposed to my bare bones 5.5x13.5 incher

What's sitting between your tuner and your flanger?



[gonzkal]

What's sitting between your tuner and your flanger?

You didn't ask me but this looks like a Broughton always-on HPF on its side.



[lomo]

What's sitting between your tuner and your flanger?

Yes it's a Broughton "always on" variable HPF set around 55Hz. Tuner--tube pre-env filter-comp-HPF-flanger-looper.



[waveman]

The top one is powered by USB 10000mAhr battery. Also, it is dually setup for wallart / barrel type power supply, so it's a little sloppier looking. I use the preamps in the Zoom and IR in the IR BOX. really good sounding rig going ampless.

The bottom is powered by 12800mAhr battery and has been my main ampless rig for the last few months. Get nothing but complements from the tone.



[gillento]

How are you using the Tonex?



[Zbysek]

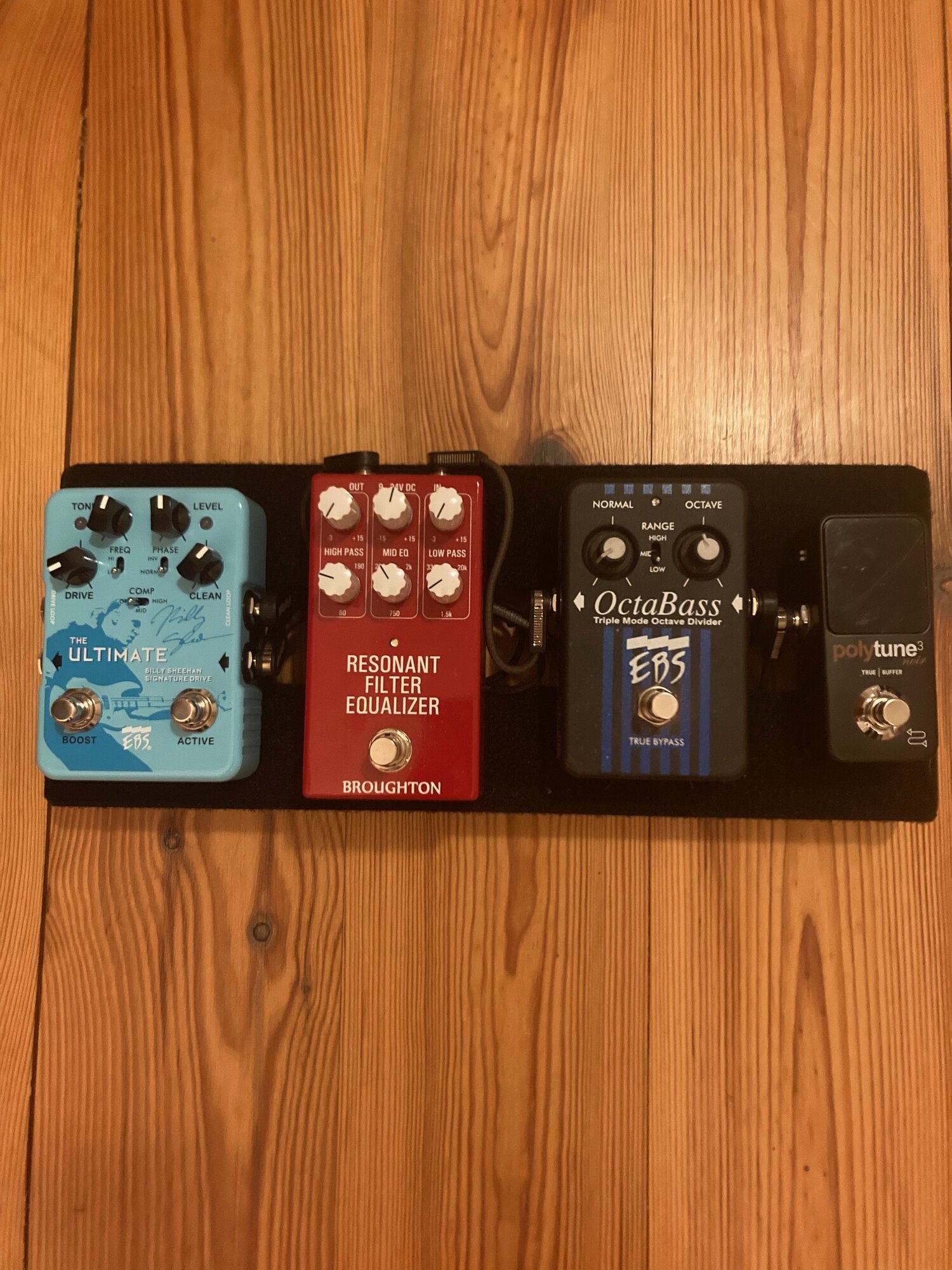

A new iteration of my small pedalboard. The octaver and RFE are inserted in the clean FX loop of the EBS pedal.....



[rstephens]

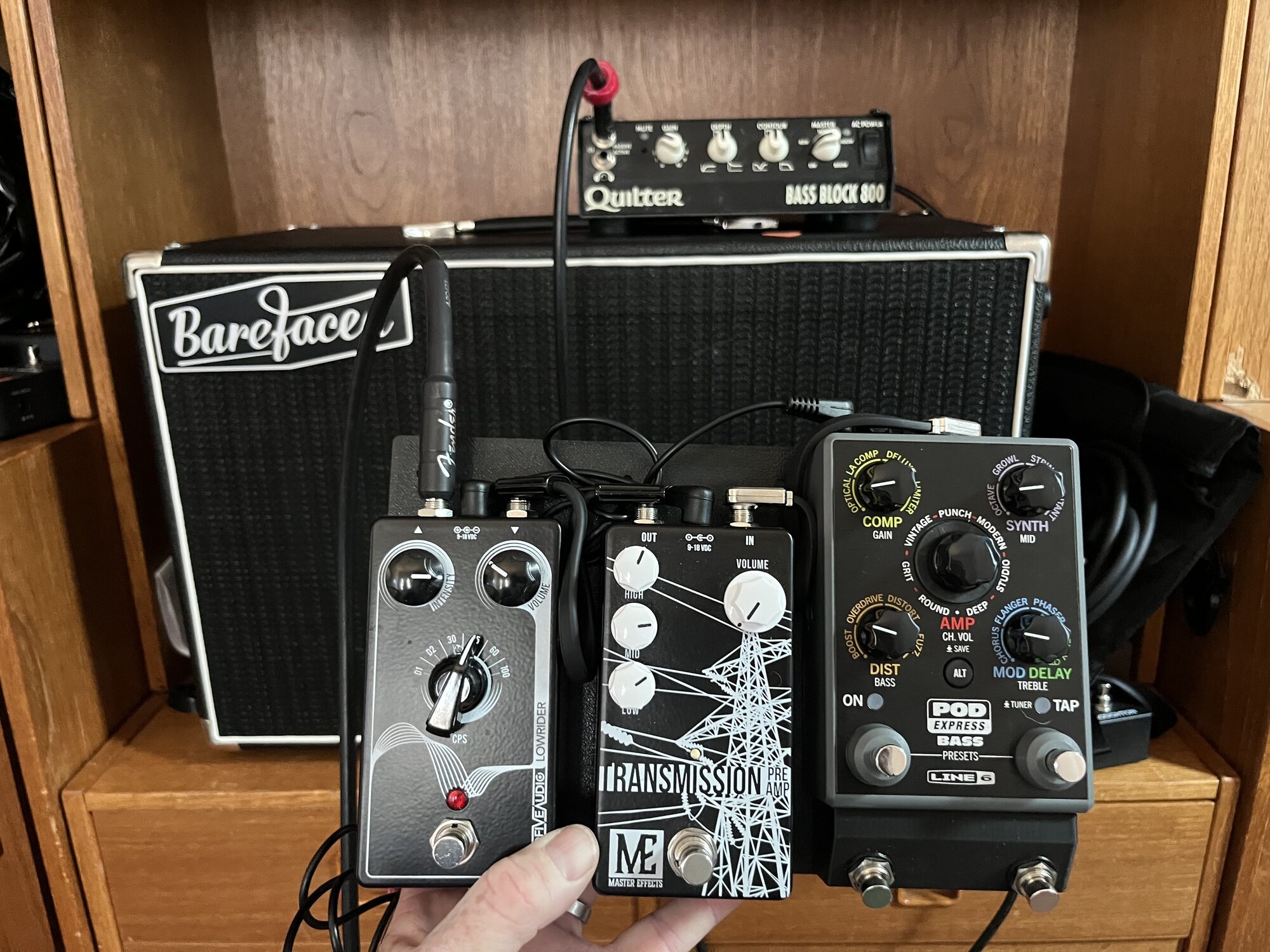

I’ve got the Darkglass Anagram on the way but I’ve actually come to like this minimal setup here. Pedalnetics sells the extra foot switch on a plate that you can mount the pod express to so it integrates perfectly and I got the one with room for two more pedals.

Sounds great - but then it’s hard to go wrong through the BB800 to Barefaced Two10.
