Show your Bill Fitzmaurice cab

[alexclaber]

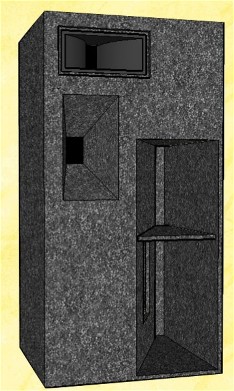

Omni 15 TallBoy now available:

http://www.billfitzmaurice.com/Omni15.html

Alex



[BassJunkie730]

Wow

that looks like the cab the old Acoustics wish they could be.



[DAcat]

Whoa now!!! Before we go Acoustic bashing,there are still a huge number of old players out there who owned or still own and play Acoustic amps who may have their own opinions on how that grey box looks compared to thier Acoustic amp-obviously you are expressing your opinion...and we can't even begin comparing the sound of the 2 cabs(are you referring to the most famous Acoustic 361 or the 371 cabs-2 differerent animals... or other Acoustic cabs) until there are more of those "Grey" cabs around so they can be AB'd side to side...many of the Acoustic amps were clearly one of the best amps made in their time -and quality and sound-wise,some feel they still are. Peace...DAcat ...



[Freddels]

That Omni 15 Tallboy looks interesting. What are the measurements? I see on the site that it's 39" high and 20" wide but what is the depth? Appox weight?

Will this have the same specs as the regular Omni 15?



[Quadzilla]

One of the two below is on her way to me!

Link Removed



[alexclaber]

That Omni 15 Tallboy looks interesting. What are the measurements? I see on the site that it's 39" high and 20" wide but what is the depth?

17" deep - same as the original Omni 15.

Appox weight?

About 70lbs in baltic birch, less in spruce/pine/poplar.

Will this have the same specs as the regular Omni 15?

Yes.

Alex



[greenboy]

Omni 15 TallBoy now available:

http://www.billfitzmaurice.com/Omni15.html

Another instance where continued nagging and idea-pitching has paid off ; }

So ... the design expertise part has been done for me - now I just need to find a builder to ease the rest of my burden ; }



[bgavin]

Bill is very responsive to good ideas. Alex broached this one on the BFM forum, and it caught fire immediately.

Personally, I like the tall boy model a whole lot better than short, squat boxes. My T30 doesn't get any use for exactly this reason. On the other hand... if you are doing multiple boxes, the standard O15 is built by Mike Childress is superior to the tall model. Mike did his in mirror fashion specifically for stacking. The height is not excessive and sonic quality is the best.



[greenboy]

Bill is very responsive to good ideas. Alex broached this one on the BFM forum, and it caught fire immediately.

And about time. I had been pitching it here for ages.



[david_l_perry]

Only just stumbled back here but thought you guys would like this shot of my two DR280's......

Close up shots:-

And now the home stereo......4DR280's and two Titan 48's

Lots of close up shots here:-
http://www.frappr.com/?a=viewphoto&id=1606913&pid=3233088&myphotos=1



[bassksun]

Wow those Drs are niice!



[bgavin]

Dave Perry's box finish is the standard everybody else is held to. Excellent quality. Check the recessed handles, and transit covers to protect the grilles. First class, all the way.



[bassksun]

Dave Perry's box finish is the standard everybody else is held to. Excellent quality. Check the recessed handles, and transit covers to protect the grilles. First class, all the way.

What finish is that?



[Petebass]

David, in the shots where the DR's are on top of each other, is that a gap I see between the two cabs? Are the DR's slightly trapezoidal are they?

And out of curiosity, what did you put between the cabs to make the front baffles sit perpendicular to the the floor?



[alexclaber]

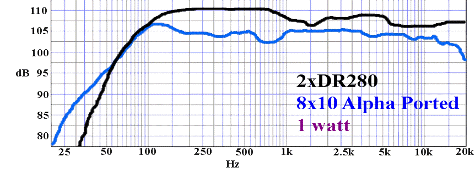

That dual DR280 stack is terrifying! Here's the response compared to a ported 8x10"

"What's that, I'm drowning out your Marshall stack?"

Alex



[david_l_perry]

Dave Perry's box finish is the standard everybody else is held to. Excellent quality. Check the recessed handles, and transit covers to protect the grilles. First class, all the way.

awe shucks....

What finish is that?

Its paint....Duratex is the name in the states but in the UK this stuff is produced by Aldcrofts. Very quick drying, applied with a textured roller.

David, in the shots where the DR's are on top of each other, is that a gap I see between the two cabs? Are the DR's slightly trapezoidal are they?

And out of curiosity, what did you put between the cabs to make the front baffles sit perpendicular to the the floor?

The DR cabs have a standard 4deg top and btm panel. This is to help smooth response and also allow the cabs to be line arrayed in curve when used as PA...(which is my main use)

I simply add feet to the bottom to allow the cab to be stacked.

Dave



[bgavin]

That dual DR280 stack is terrifying! Here's the response compared to a ported 8x10"

There is a fix coming for the dip at 2 KHz. I have to build four DR280 for my PA system, so I'm holding off until the fix is released.



[bassksun]

thank you



[DrGroovenstein]

The DR250 looks like a good fit for me, but I don't know if they are sedan friendly. If I were looking for something portable, which would you suggest. I can tote around my GS410 now, but it is a tough fit.



[billfitzmaurice]

which would you suggest.

I suggest you get a hatchback.
Barring that the Omni 10 is your best bet. Subs are out of the question, and even a DR250 won't fit through a car passenger door.
