Squier Affinity Jaguar Bass...H?!
- Thread starter Naviiin
- Start date
Bonjour dannybass, I knew I should have paid attention in 8th grade French class.Can anyone bilingual explain those tone pots?
Bonjour tout le monde,
J'ai besoin de connaissances professionnelles .

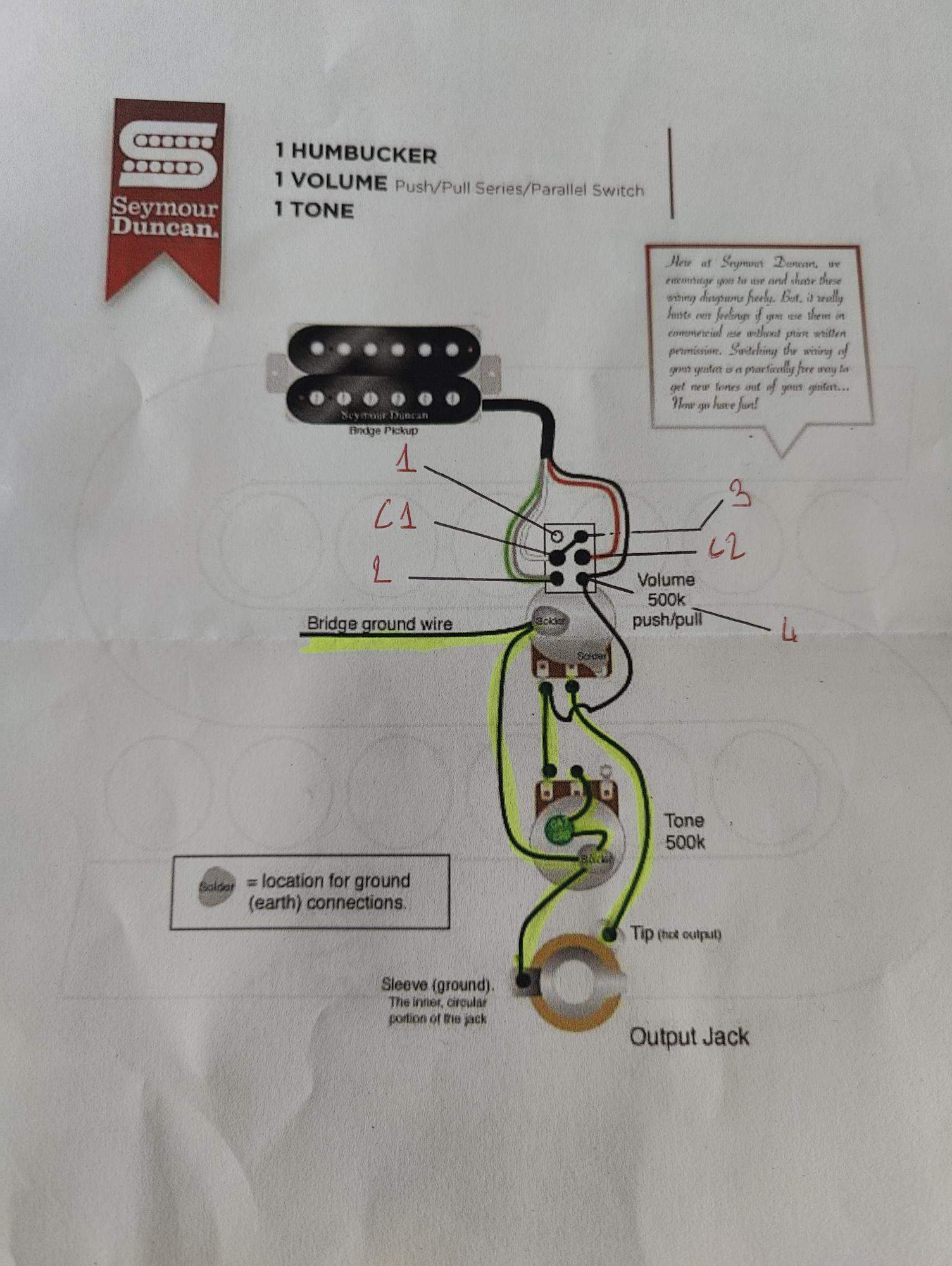

J'ai suivi un schéma de câblage suivant (voir image).

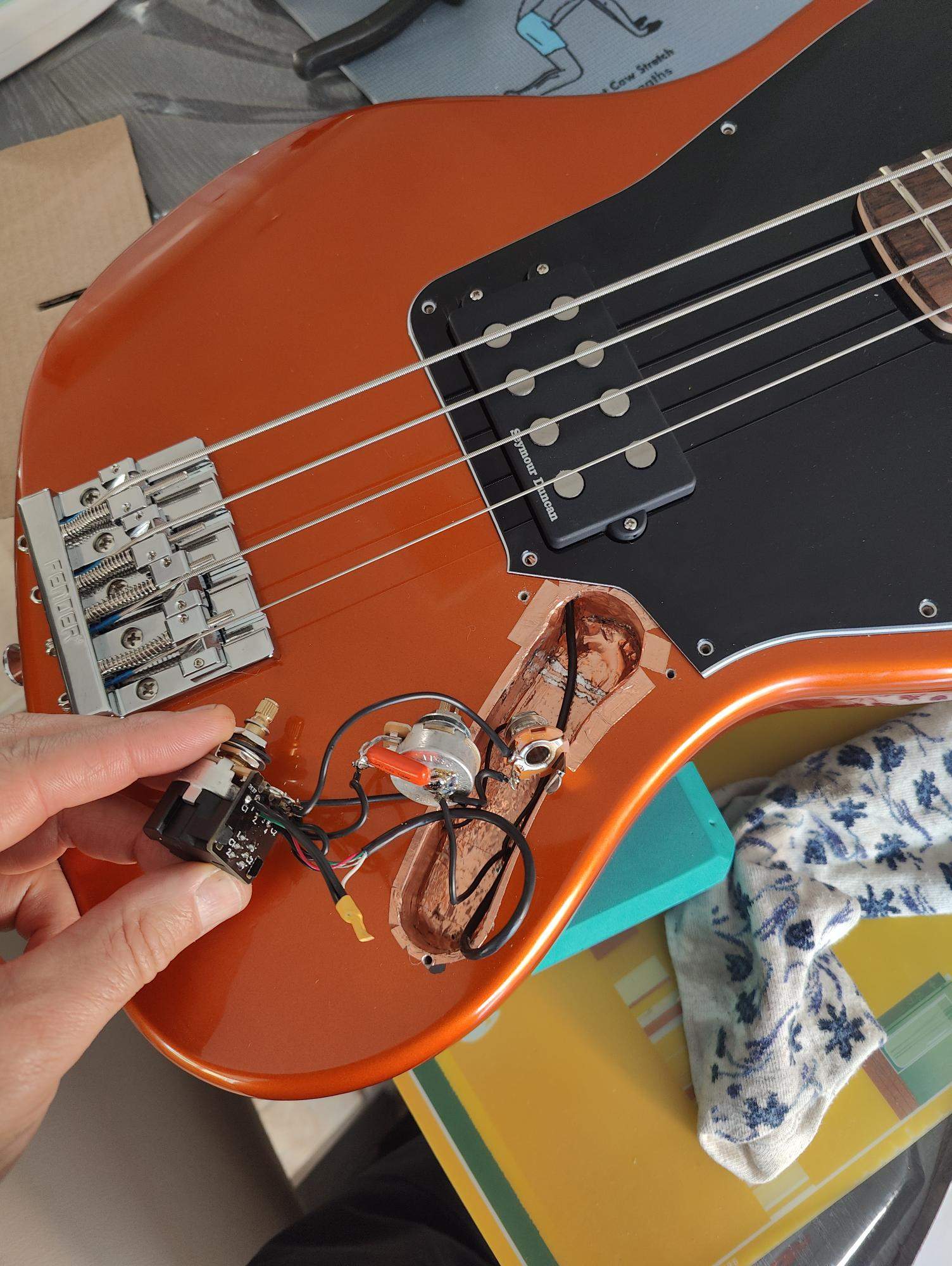

Mais au lieu d'avoir un micro guitare j'ai mis un micro basse Duncan Seymour SMB-4A pour améliorer ma basse squier jaguar.

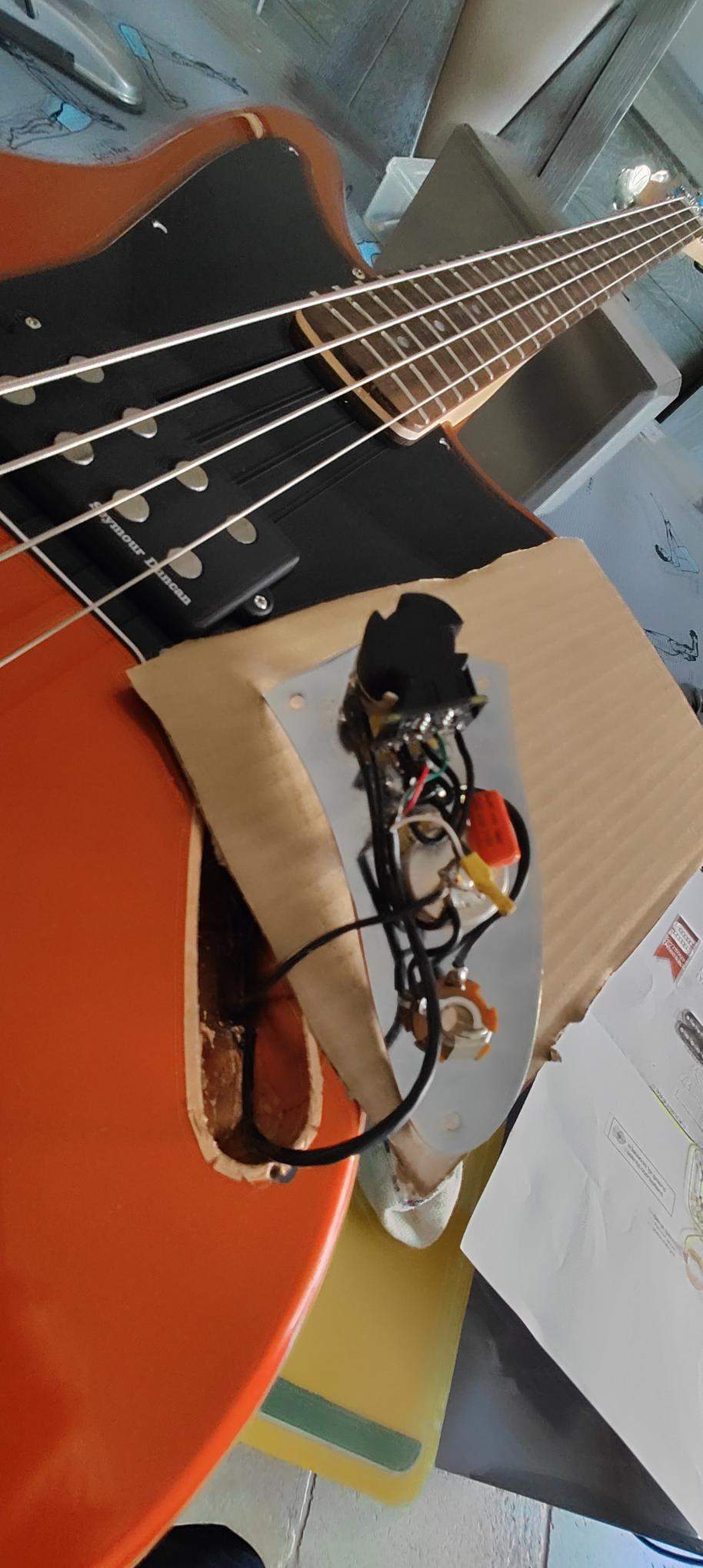

J'ai fait le montage ça mais ça ne marche pas correctement, ça gêne le volume et la tonalité ne marche pas.
Mon but est de faire un montage série et parallèle avec un potentiomètre Switch.
Pouvez-vous m'aider s'il vous plait ?
Désolé, je suis français je passe par un traducteur
Aider...
MERCI
J'ai besoin de connaissances professionnelles .
J'ai suivi un schéma de câblage suivant (voir image).
Mais au lieu d'avoir un micro guitare j'ai mis un micro basse Duncan Seymour SMB-4A pour améliorer ma basse squier jaguar.
J'ai fait le montage ça mais ça ne marche pas correctement, ça gêne le volume et la tonalité ne marche pas.
Mon but est de faire un montage série et parallèle avec un potentiomètre Switch.
Pouvez-vous m'aider s'il vous plait ?
Désolé, je suis français je passe par un traducteur
Aider...
MERCI
Attachments
Merci pour vos réponses,
Connaissez-vous la correspondance des couleurs du micro SMB-4A ?

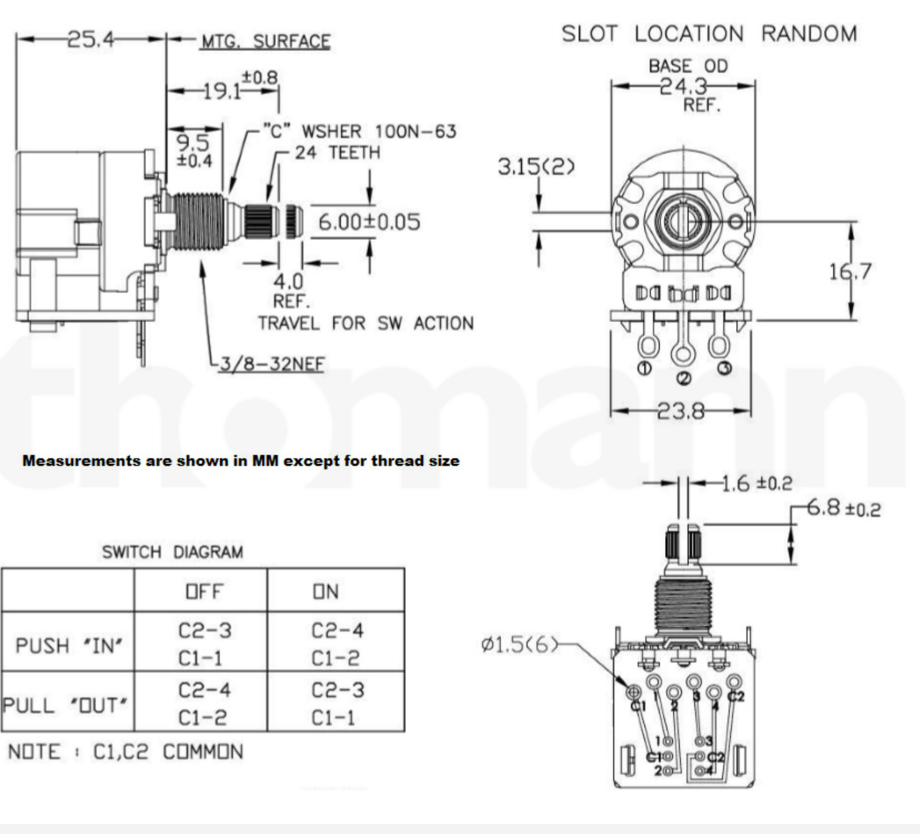

Pour les fentes comme la photo ci-dessous
Connaissez-vous la correspondance des couleurs du micro SMB-4A ?
Pour les fentes comme la photo ci-dessous
Thanks, that's nice, it's crazy that I can't find a parallel series wiring diagram for Duncan SMB-4A Thanks, that's nice

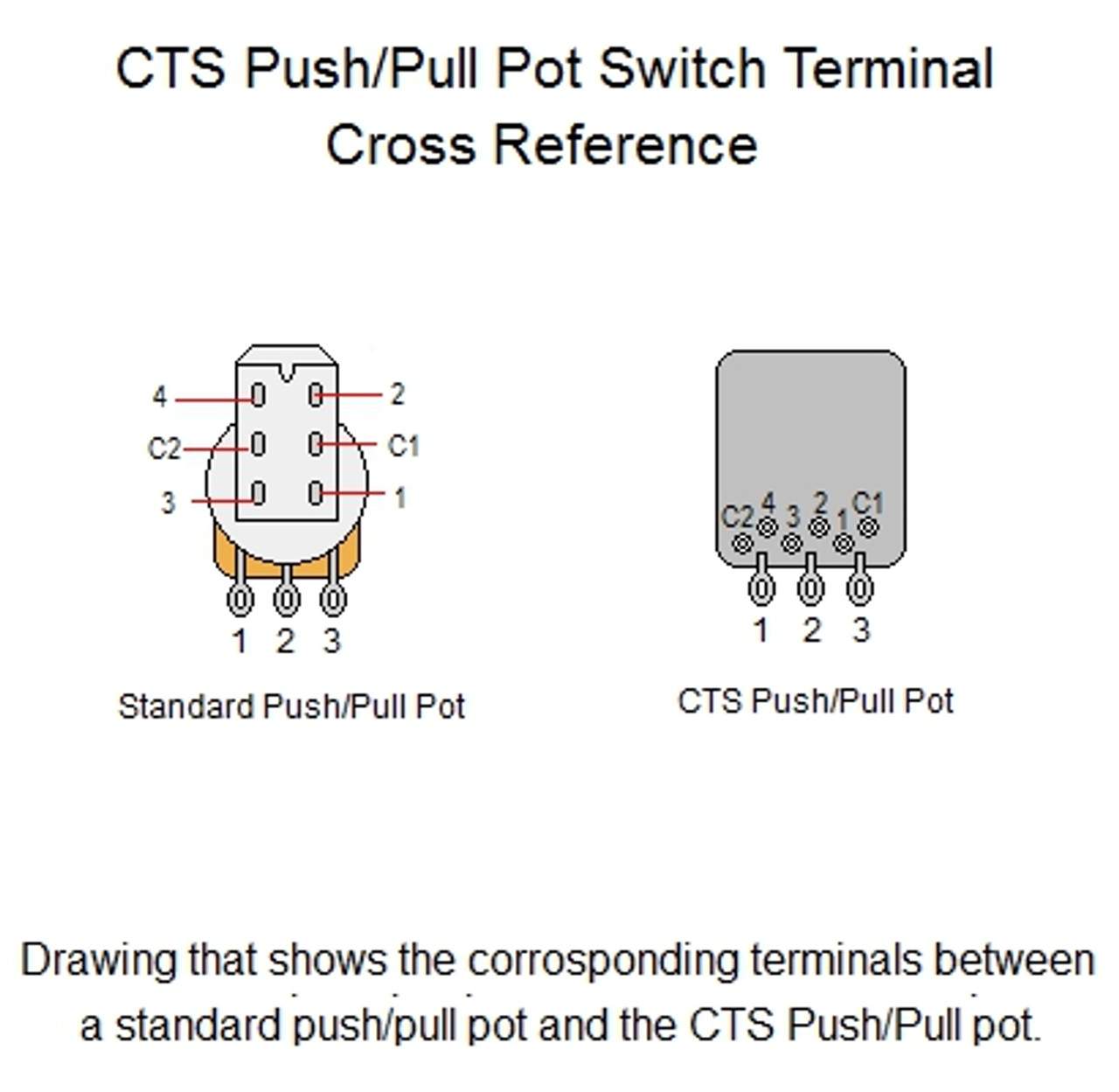

Danybass13 is having problems wiring his Duncan Smb-4a in series/parallel. It looks to me like he's numbered his push/pull pot upside down when compared to the cross reference diagram I posted above.
What do you think? Anyone?
What do you think? Anyone?
Anyone have a spare replacement pickguard for the Jaguar H? Shoot me a PM
I took my black one off, and see no reason for it to go back on (if you need one).
I only just saw these basses this afternoon, in an ad on FB - I absolutely don't need a bass or to spend money but that shell pink is calling to me. Sweetwater rep says that they probably won't have one for me until early 2024 so I guess I have to just forget about it for a few months...
That's a bummer, but maybe one will show up before then.
I was skeptical that this bass would live up to the rep on this forum. Been there, done that...nothing gained or lost really. But with a few small tweaks, this bass is as advertised. I've played way more expensive basses that aren't as good as this right out of the box.
I was skeptical that this bass would live up to the rep on this forum. Been there, done that...nothing gained or lost really. But with a few small tweaks, this bass is as advertised. I've played way more expensive basses that aren't as good as this right out of the box.
Yeah, I'm not too worried, just a little impatient. Order placed so hopefully it ships much sooner than early 2024, and hopefully Fender keeps making them in shell pink. That's really what I'm after here... need to finally own a shell pink bass after years of wanting one.
I set an alert on Reverb so if one shows up (that isn't significantly over MSRP + insane shipping fees) I could potentially snag it there.
I'm generally not someone that mods a bass but are there any must-do upgrades for this model?
