The Squier Mini Precision Bass Club

#2,621
Hi Bassmatic, Im moding my brand new Squire Mini P,But right now I can see your bridge is to far back.With a square pressed flat against the lower body edge and against the upper surface to the back of the bridge mine (stock bridge) measures exactly 15/16ths of an inch.Right from the factory thats what I have and my intonation is perfect.I think you got one with the brige holes drilled wrong.Howerver,Im changing my bridge to a heavyer high mass style in black.Just For looks.Im not a luthier but ive had real good experiences with my mods,following the internet.Good Luck I hope this helps.By the way,All Parts in Texas is a great source for parts. Rick

  • Like
Reactions: Kubicki Fan, DavesnothereCA, GrahamNN3 and 1 other person
#2,622
Bassamatic said:
Anyone's bridge seem to be in the wrong spot?
Click to expand...


  • Like
Reactions: RodRy and Volker Kirstein
#2,624
Bassamatic said:

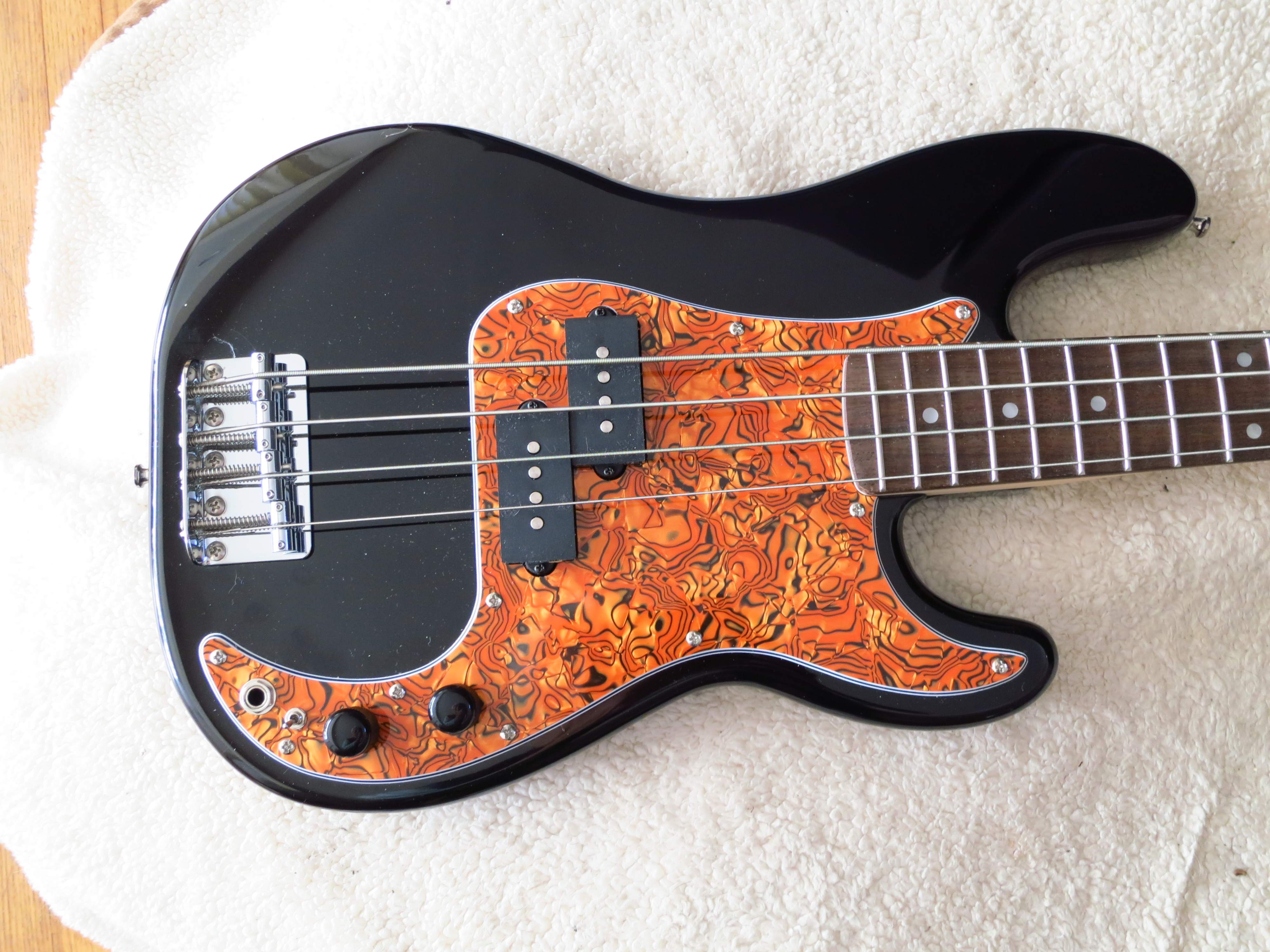

Anyone's bridge seem to be in the wrong spot? My saddles are all the way to the front of the bridge - I can't advance a couple any more to get proper intonation. I measure the 28.5" to the topmost position of the saddles. All my other basses measure to the center of the saddle adjustment. It seems that the bridge might want to move about 1/2" towards the neck. I will try some different strings first, and then I think I will move it if it is not better. View attachment 4329398
Click to expand...
~
First, before I comment upon your question, let's hear it [again ?] for that wild pickguard ! :woot: :thumbsup:

Now regarding the bridge, there are up to several possible ways to address your issue :

1) Move the bridge 1/2" to 3/4" North, and readjust the intonation South,

2) Alternate strings may help, if they are heavier than what you have now, and if what you have now are the original gauges of 40-60-75-95 or similar. - If you are using roundwounds, Volker's set comes to mind, of 45 to 105, or possibly heavier yet, provided that they do not feel too odd to your fingers when you play them,

AND, this next idea is the easiest and least demanding in effort, expertise, and money....

3) Loosen the G string, remove the intonation bolt and take it to a good old-fashioned hardware store, and have them sell you a couple more of the same thread, but a bit longer, since you have some bottom plate left on the bridge assembly, and install them for the G and the D strings.
~

Last edited:
  • Like
Reactions: RodRy
#2,626
SBassman said:
It would be interesting if we could get precise measurements - of say the top corner of bridge to nut - for this bass, and basses where intonation was not a problem.

It would be horrifying to me to hear that the bridge holes were not done with a template and/or precise measurement. I don't care how low end a bass is.
Click to expand...

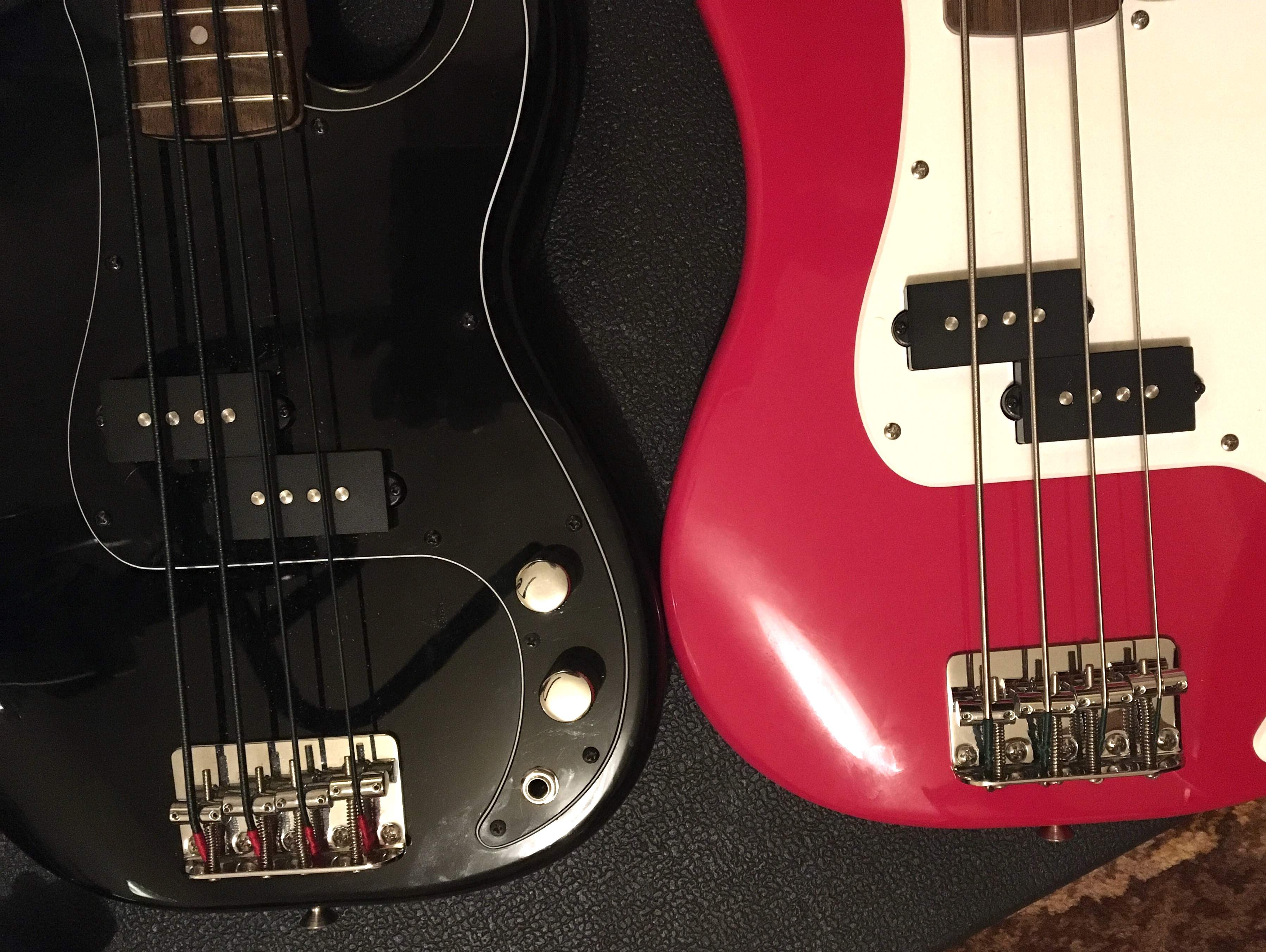

My two minis have the bridge in a slightly different place (about 2mm difference).

  • Like
Reactions: RodRy, DavesnothereCA and SBassman
#2,631
DavesnothereCA said:
~
If it was a Centimetre or more, as seems to be the case on Bassamatic's Mini, I'd be worried.

Still, with today's automated manufacturing processes, one would expect a lot closer tolerances on dimensions.
~
Click to expand...

In today's world, for something like bridge placement, I'd call a foul if it was any more than 1 mil. 1000 dollar bass or 200 hundred dollar bass.

Most things can be fixed, but fret placement and bridge placement have to be near perfect out of the factory. Regardless of price point.

Last edited:
  • Like
Reactions: andare, honeydorick and GrahamNN3
#2,634

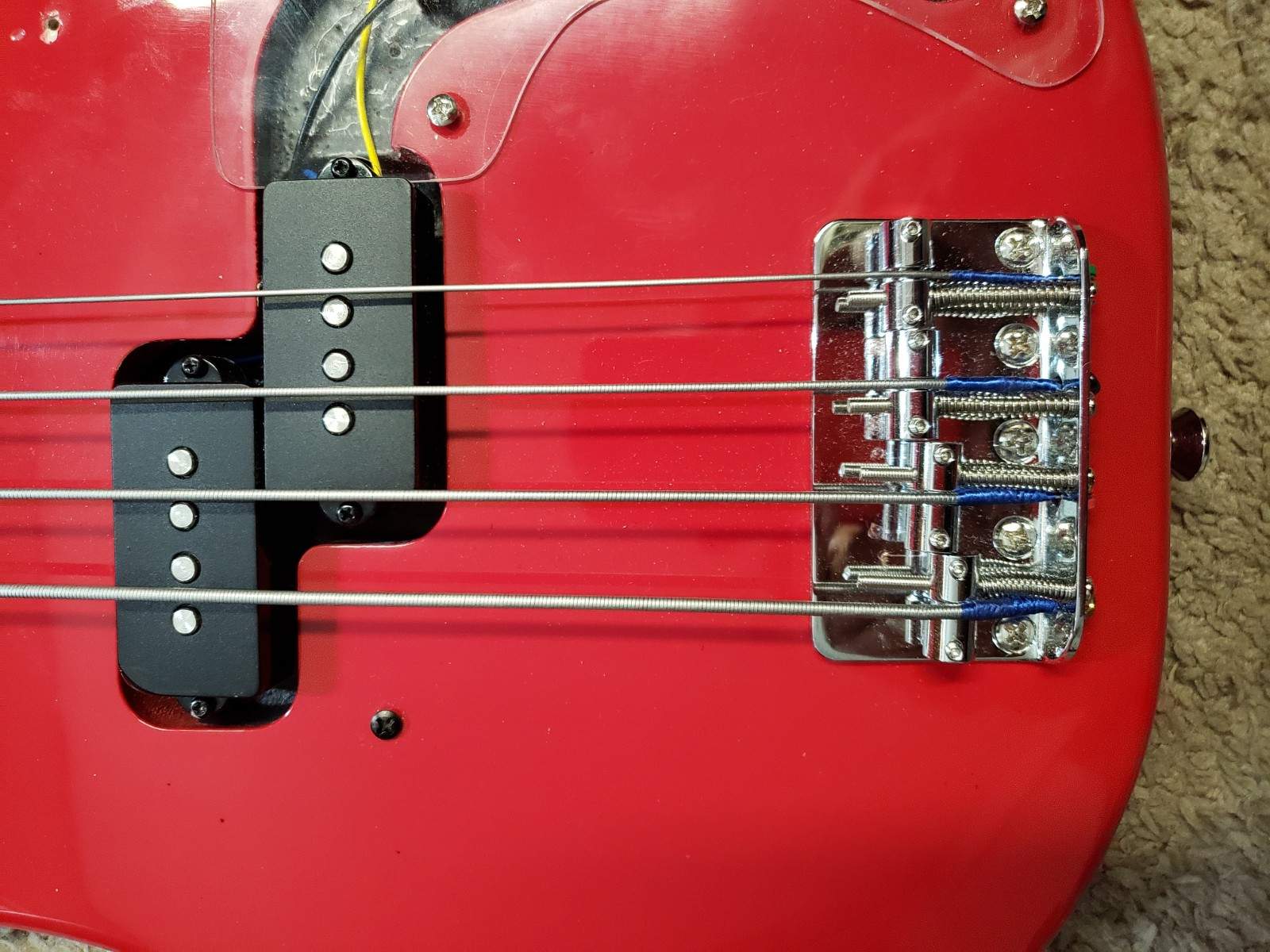

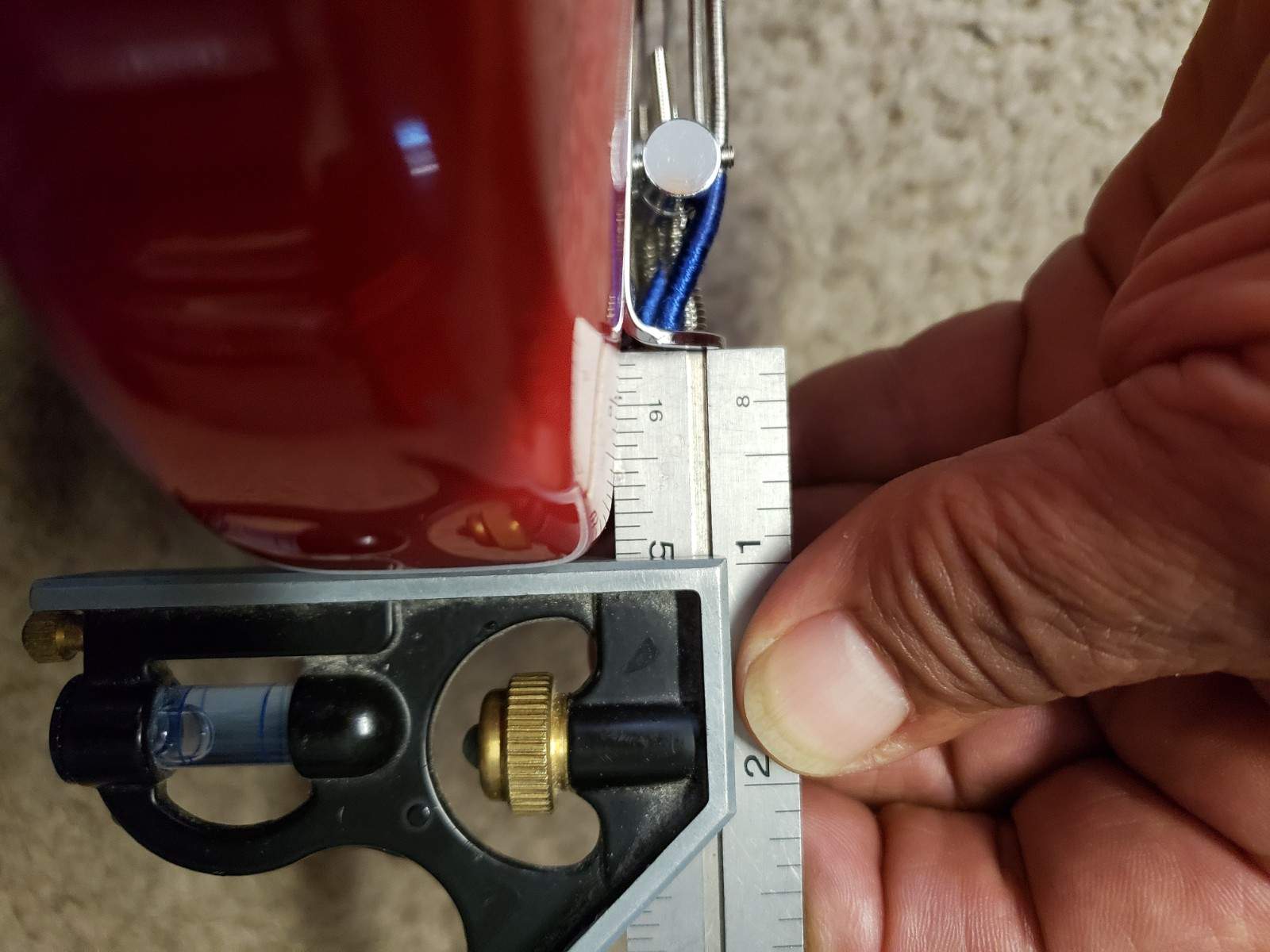

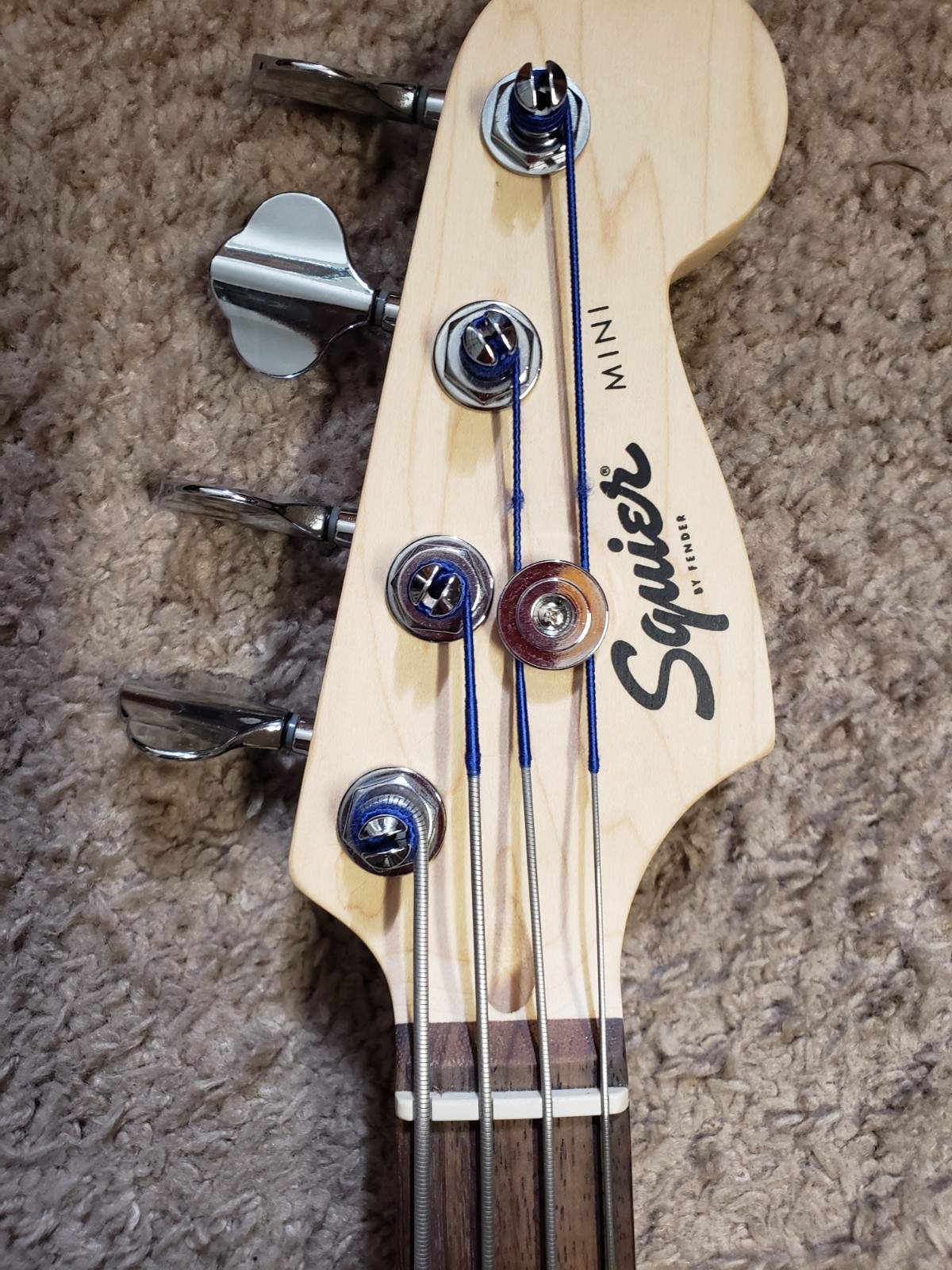

Hi guys,For Bassmatics issue,I was just providing an example measurement done with a square. 15/16s of an inch about 24MM body end to back of the bridge of my new mini right from the factory with no issues or changes by me, other than changing strings to D'Adderio ECB815S's short scale chrome flatts,100.80.65.45's.The saddle lengths and intonation are perfect.This was just a reffrence point of what it should be from the factory.Unless there is another issue.Again I'm not a luthier.My E string is slightly past the threaded portion on the post,but its ok.The original E string was the same way right from the factory.The rest of the strings are normal with the threaded area still on the posts.


Attachments

  • 20210710_093135.jpg
    249.7 KB · Views: 63
  • 20210710_093551.jpg
    116 KB · Views: 62
  • 20210710_093203.jpg
    184.5 KB · Views: 64
Last edited:
  • Like
Reactions: RodRy and DavesnothereCA
#2,635
GrahamNN3 said:
My two minis have the bridge in a slightly different place (about 2mm difference).
Click to expand...
honeydorick said:
... 15/16s of an inch body end to back of the bridge of my new mini right from the factory ...
Click to expand...
15/16 is ~24mm. Mine shows ~20mm. Graham says 2mm difference in his two.

Either we're all measuring slightly differently, or we're seeing wild variance. We've already documented 4mm of slop, and 4mm is the difference between a Jazz and a P at the nut.

  • Like
Reactions: RodRy and DavesnothereCA
#2,638
GrahamNN3 said:
My two minis have the bridge in a slightly different place (about 2mm difference).
Click to expand...

Volker Kirstein said:
Hmm. My intonation is good, but my saddles, too, [Like Bassamatic's] are almost at full extension.

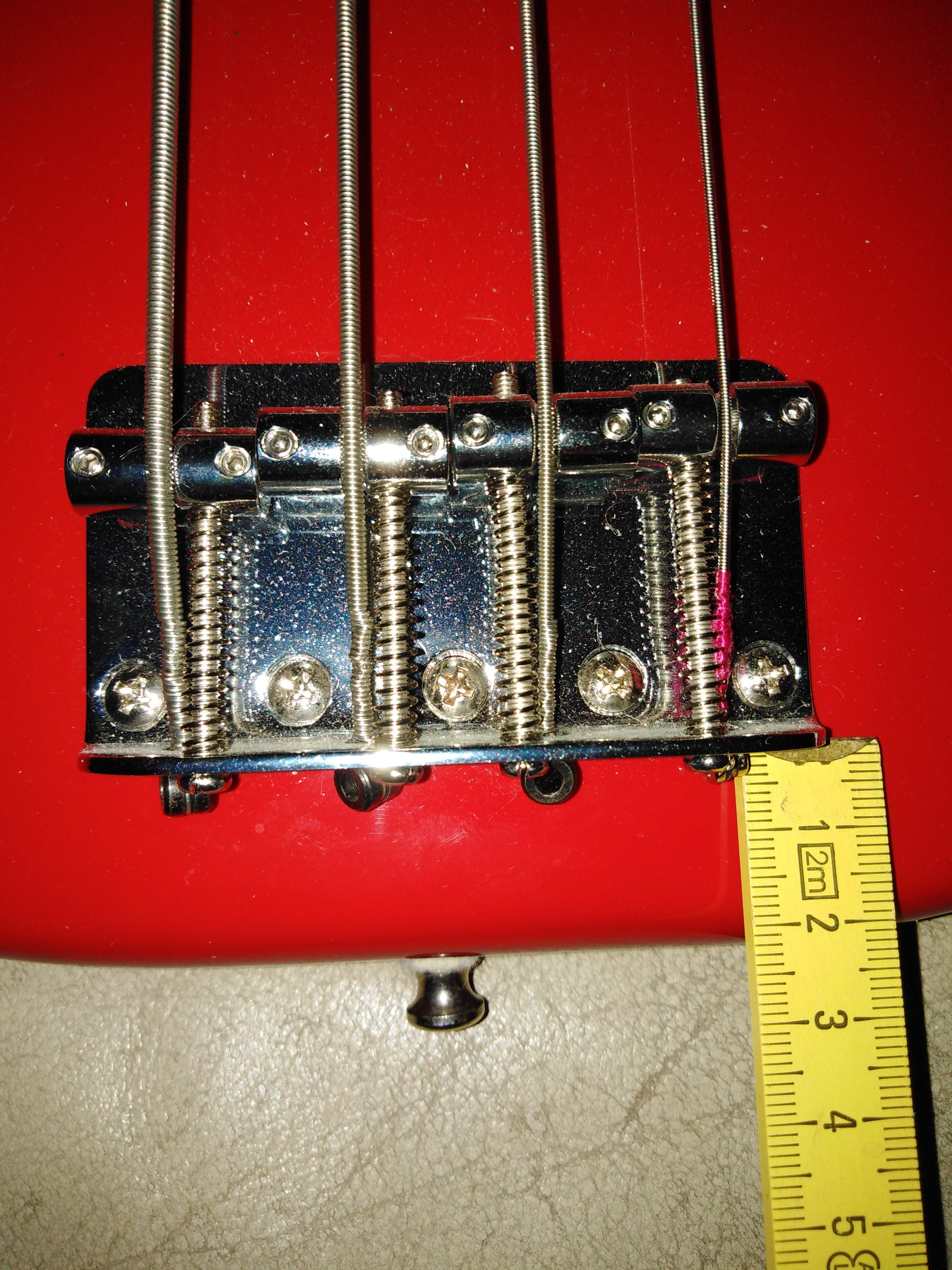

[See measurement in pic]
View attachment 4330237
Click to expand...

SBassman said:
Great pic. I will do the same with my 2 later.
Click to expand...

honeydorick said:
Hi guys, For Bassmatics issue, I was just providing an example measurement done with a square. 15/16s of an inch about 24MM body end to back of the bridge of my new mini right from the factory with no issues or changes by me, other than changing strings to D'Adderio ECB815S's short scale chrome flats, 100.80.65.45's....
Click to expand...

Volker Kirstein said:
15/16 is ~24mm. Mine shows ~20mm. Graham says 2mm difference in his two.- Either we're all measuring slightly differently, or we're seeing wild variance.

We've already documented 4mm of slop, and 4mm is the difference between a Jazz and a P at the nut.
Click to expand...
~
If they ever make a run of Mini-P's where their necks are cut 4mm too wide at the nut, someone be sure and tell me, as I'd likely buy a couple ! :D

But back to the issue at hand, this apparent variance [which has been reported among a handful of us] is worrisome.

And I say this without a horse in the race, though some of you will recall that early this year, when I was posting about the thought of transplanting another neck onto a Mini-P body, a centimetre of variance [in the frame of reference of the original bridge placement] could make or break whether doing so might be possible/practical.

We might also wish to examine whether the bridges of these Mini-P basses are accurately positioned in the OTHER plane, so as to centre the strings correctly over the fretboard.

It might be harder to measure, though easy enough to see when looking at pics the instruments.

Hmmmm....
~

Last edited:
  • Like
Reactions: RodRy
#2,639
Bassamatic said:
Thanks for all the comments.
My Measurements -
Top of bridge plate to inside of nut - 28-1/8"
Bottom of bridge plate to bottom of bass - 3/4"

The cool pickguard is from the amazing earlpilanz on eBay - he makes fantastic pickguards for the less popular basses and ships from UK.
Click to expand...
~
When you said 'Top of bridge plate', you mean the edge nearest the neck, correct ?

And 'Bottom' is the same measurement which Volker's pic shows ?

3/4" is about 19mm.

So we have reports of 19mm, 20mm, and 24mm measured there, if I've been following things properly.
~

  • Like
Reactions: RodRy
