Now I'm prompted to dig into the Electrical chapters of the IRC book... just passed my exam for Residential Building Inspector certification... I'm a little light on electrical expertise.

I was a licensed electrical administrator about 20 years ago, but I have forgotten a lot.



[TBird1958]

mixing business and pleasure tonight……Gardinos in Los Gatos is by far one of the coolest venues to play at……
View attachment 5176606

Have a great show, buddy!



[Count Bassie]

I was a licensed electrical administrator about 20 years ago, but I have forgotten a lot.

It's the most detailed, specific system and aspect of building construction. Engineering is essentially pretty simple: a few mechanical forces, which materials and how to use them.
Plumbing? Hydraulics is essentially a few mechanical relationships, and for most use doesn't get crazy.
Electricity is chemistry. And it's invisible... that's a "Yikes!" for Rog...



[Count Bassie]

Hey @Chucky Stiletti , break a leg mang!



[stlrocker]

Now I'm prompted to dig into the Electrical chapters of the IRC book... just passed my exam for Residential Building Inspector certification... I'm a little light on electrical expertise.

Yeah, grounding is the biggest chapter in the NEC code book. The details can be debated forever.

but in residential, a lot of it won't apply. it is mostly similar stuff over and over. Unless you get into some really big apartment buildings, then things can get wild.



[Count Bassie]

Yeah, grounding is the biggest chapter in the NEC code book. The details can be debated forever.

but in residential, a lot of it won't apply. it is mostly similar stuff over and over. Unless you get into some really big apartment buildings, then things can get wild.

I'm looking for a job currently, figuring this stuff will get up in my face at some point.
In New England we still see rehab gigs dealing with old knob & tube systems. Knowing and owning the basics is going to be reasonable.



[stlrocker]

Knob and tube is still everywhere in the city in St Louis. Most of it was built 1900-1930. The rubber insulation crumbles off if you bend it. It's a pain.

Some insurance companies are not insuring places with knob and tube. If thats also true in your area, I would guess that would be important for the potential buyers.



[BklynKen]

That is an archaic looking panel.

I'm just disappointed there are no googly eyes in the two big loops.



[Miles_ONeal]

And we think used Thunderbird prices are high.

Granted, this was "It" back in the day into ESS speakers. It didn't get much better than that. But what these go for today is ridiculous.

MARANTZ 2275 stereophonic receiver | eBay

Insane.



[GonePlaid]

Also within riding distance was Joan Baez's estate in Woodside CA where her entrance looked similar but had two walrus statues flanking the gates.

What? No Eggmen?



[Chucky Stiletti]

Yeah, grounding is the biggest chapter in the NEC code book. The details can be debated forever.

but in residential, a lot of it won't apply. it is mostly similar stuff over and over. Unless you get into some really big apartment buildings, then things can get wild.

yep, have seen many a PhD dissertation on grounding….



[Chucky Stiletti]

Have a great show, buddy!

@Chucky Stiletti , break a leg mang![/QUOTE]

Thx my favorite people!!!



[Chucky Stiletti]

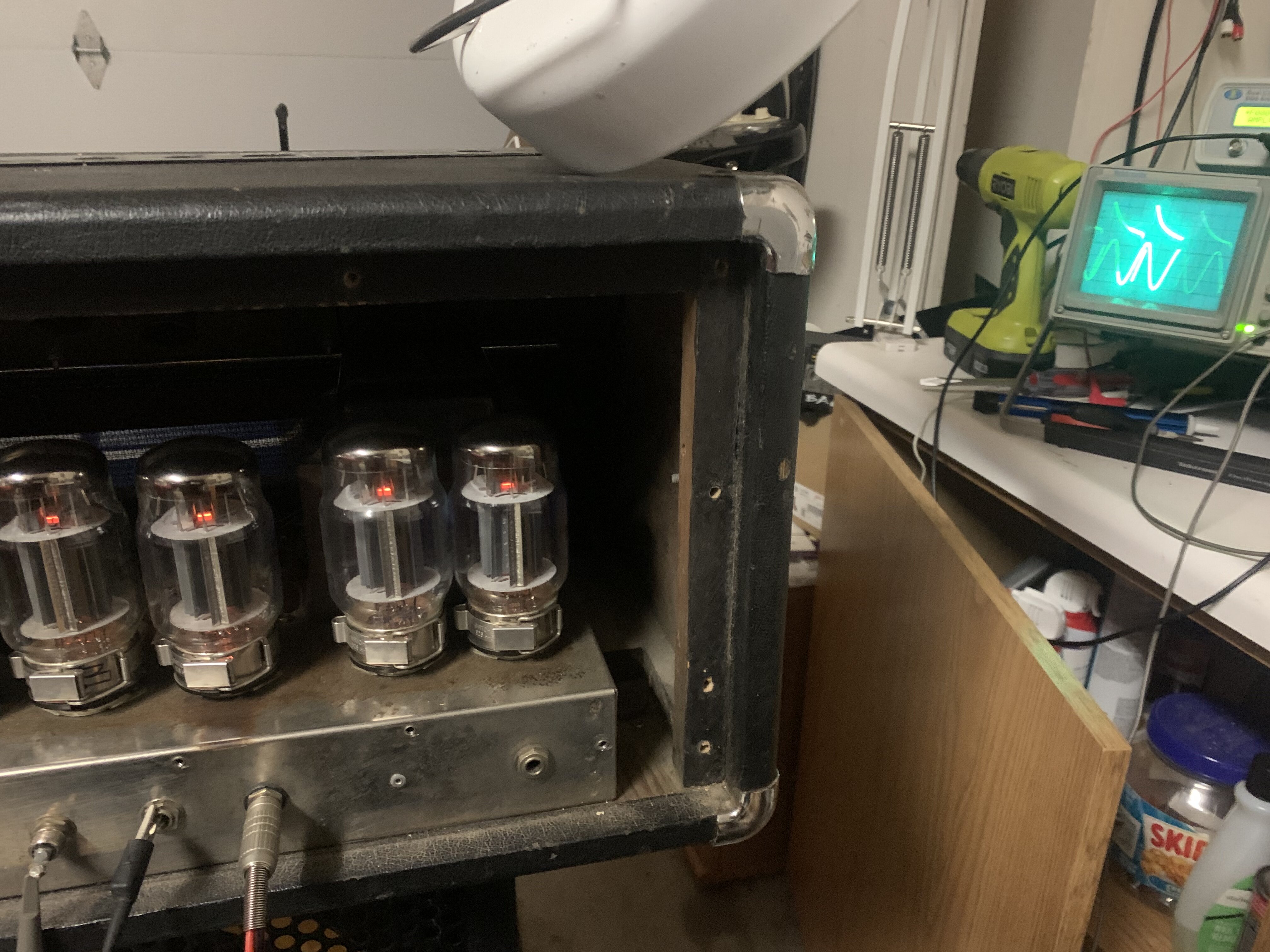

"amplifiers do oscillators don't"…….



[Roger W]

yep, have seen many a PhD dissertation on grounding….

Easy peasy: the salty, salty ocean is highly conductive. Ground everything to the steel hull of your ship.



[dagrev]

Looking closer at these pics, I would say you likely have a main disconnect somewhere before that panel. (Based on no main breaker on this panel and use of SER cable)
Disconnect will likely have a big 2 pole 100a or 125a breaker in it.
I would look in there for the grounding and bonding.
Or thats a sub panel fed from a main panel elsewhere in the house.

I'm not having the issue, but want to thank you for assisting a T'Bird brother with some solid advice. (As others do with their respective expertise. This is a special place, indeed.)



[dagrev]

It's the most detailed, specific system and aspect of building construction. Engineering is essentially pretty simple: a few mechanical forces, which materials and how to use them.
Plumbing? Hydraulics is essentially a few mechanical relationships, and for most use doesn't get crazy.
Electricity is chemistry. And it's invisible... that's a "Yikes!" for Rog...

Rule of thumb then...if you can't see it--it can still kill you! I do only minimal electric.



[Count Bassie]

Rule of thumb then...if you can't see it--it can still kill you! I do only minimal electric.

Yes. I did a short stint as a laborer for an electrical contractor when I was 20-ish. I left that and went to carpentry. If I'd stayed with electrical I'd have been dead by now. Lol, seriously...



[Ringhammer]

While I am a California C10 licensed electrical contractor, I mostly only work on low (12/24VAC or VDC) voltage stuff. I've done plenty of my own residential add ons but when it comes to any above 120, and 3phase, etc, I call in one of the many true electricians that I work with. They play with all that 277 and up stuff all day.



[GBassNorth]

mixing business and pleasure tonight……Gardinos in Los Gatos is by far one of the coolest venues to play at……
View attachment 5176606

Somebody needs to invest $50 for a new throne for the drummer!
[Invalid or Expired Link Removed]



[Engle]

I am a master electrician. Residential grounding and bonding can happen in a number of ways.

The current standard is two ground wires. One to the water pipe and one to a grounding rod.

A ground wire to a grounding rod can come from the main panel. It can also come from the meter base, or an exterior main disconnect. It will usually be #6 copper solid or stranded, usually bare but not necessarily.

A ground wire to the water pipe will usually come from the main panel will run to a clamp on a cold water pipe. Wire size depending on service size. Can be copper or aluminum, bare or coated.

Bonding between ground and neutral should occur at the first point of disconnect. This may be an outside or inside disconnect, or a main panel with a main breaker.

The bonding may be done in various ways. Could be a bonding strap, bonding screw or a wire. Either way, you should have continuity between the neutral bar and ground. Once it is bonded at the first point of disconnect, no other service equipment gets bonded downstream.

Bonding seems to confuse even some electricians, I see a lot done incorrectly.

Don't know if any of this will solve your noise issue. Just wanted to lay out how it should all look.

Thank you for the clear explanation. We were trying to find a way to determine if receptacles in Dave's house are properly bonded to ground.
