#921
wow, a lot has happened without me checking in here.
i got a new job working 60+ hours a week, got into a new house and havent gotten internet hooked up yet.

i will make this right by showing off something of mine as well as updating numbers.
youll get your credit for your hard work guys, i promise.

#927
Alright I gave my word and here it is... My new "American Vintage Modified" Jazz Bass.

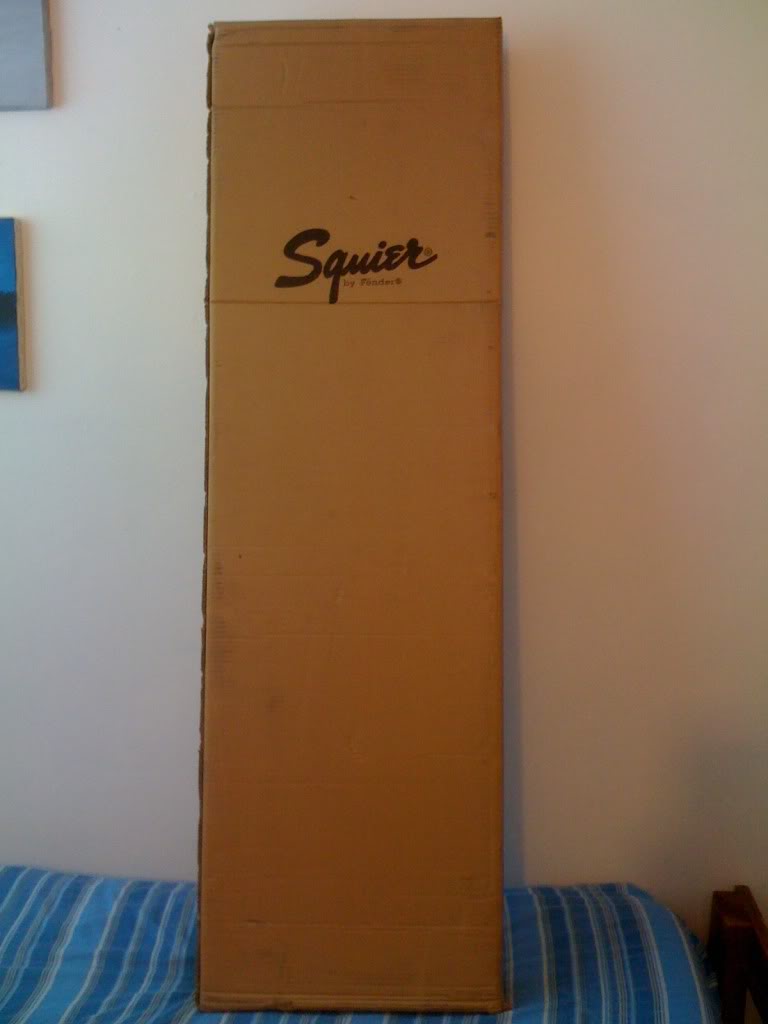

Stock. In the box.

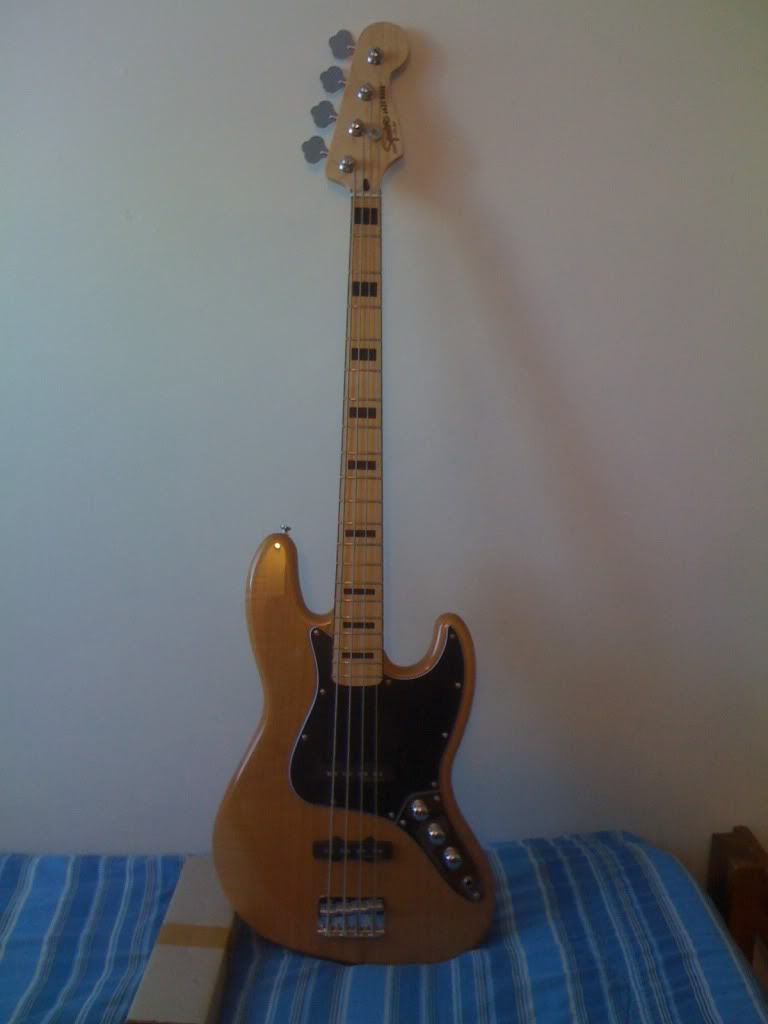

Stock. Out of the box.

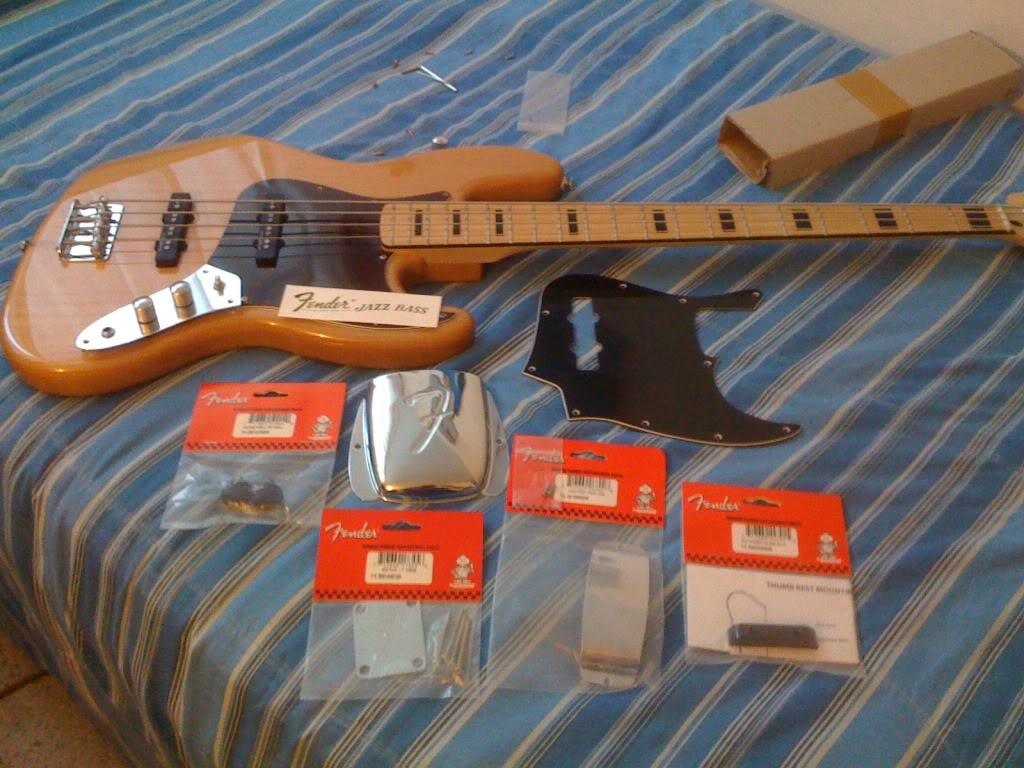

All the Fender Parts I used for this "project": Fender Jazz Bass Black Plastic Knobs, Fender 70's "F" Neck Plate, Fender Pickup and Bridge Covers, Fender Thumbrest (Tugbar in this case), and a Fender Tortoise PG (already swapped on the picture) from my Deluxe Jazz Bass.

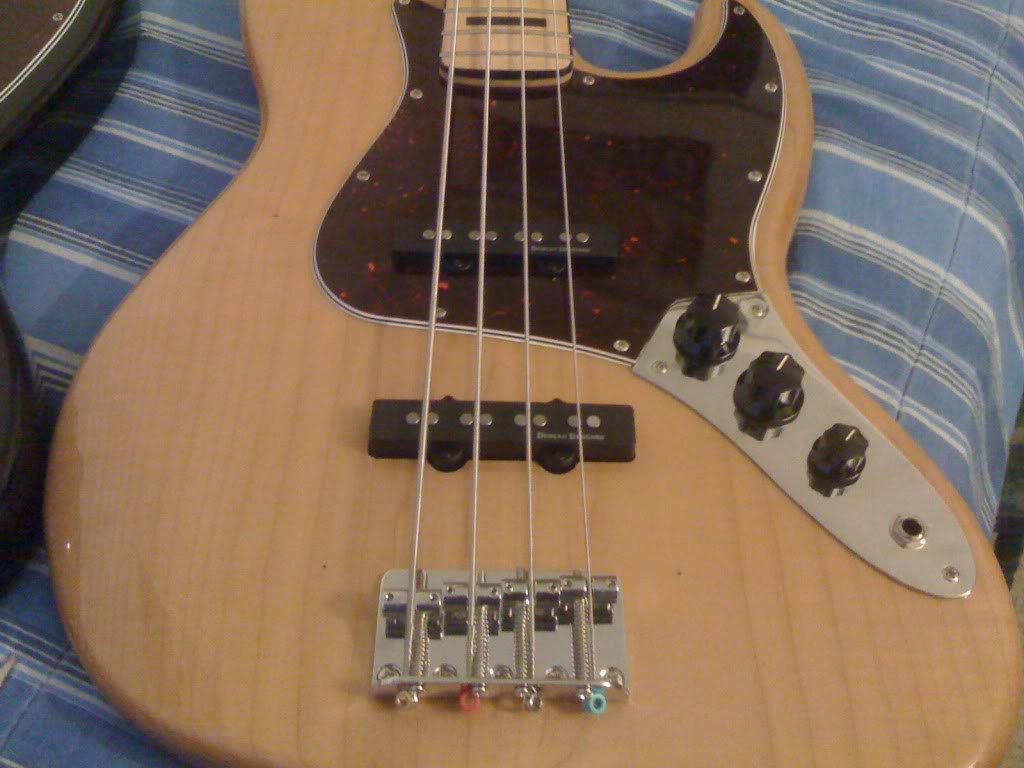

I started by putting the PG, fitted just fine. Then changed the stock chrome knobs for the black ones.

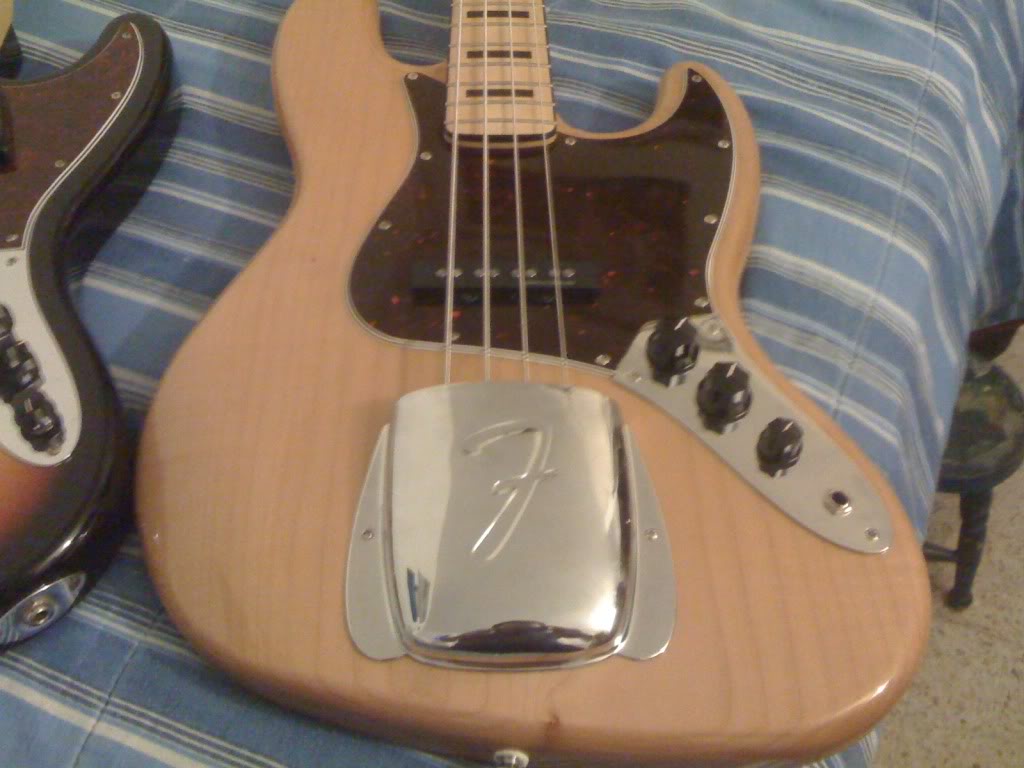

Then drilled, screwed and installed the bridge cover.By the way the layout that comes with it for the installation is rubbish... It is useless.

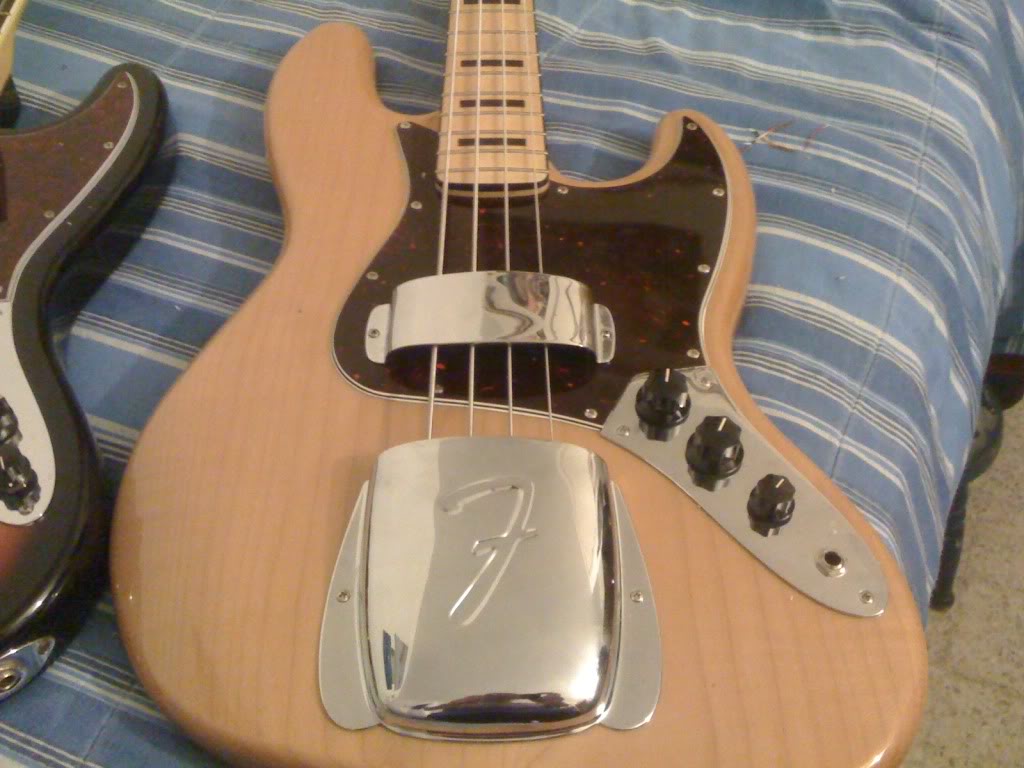

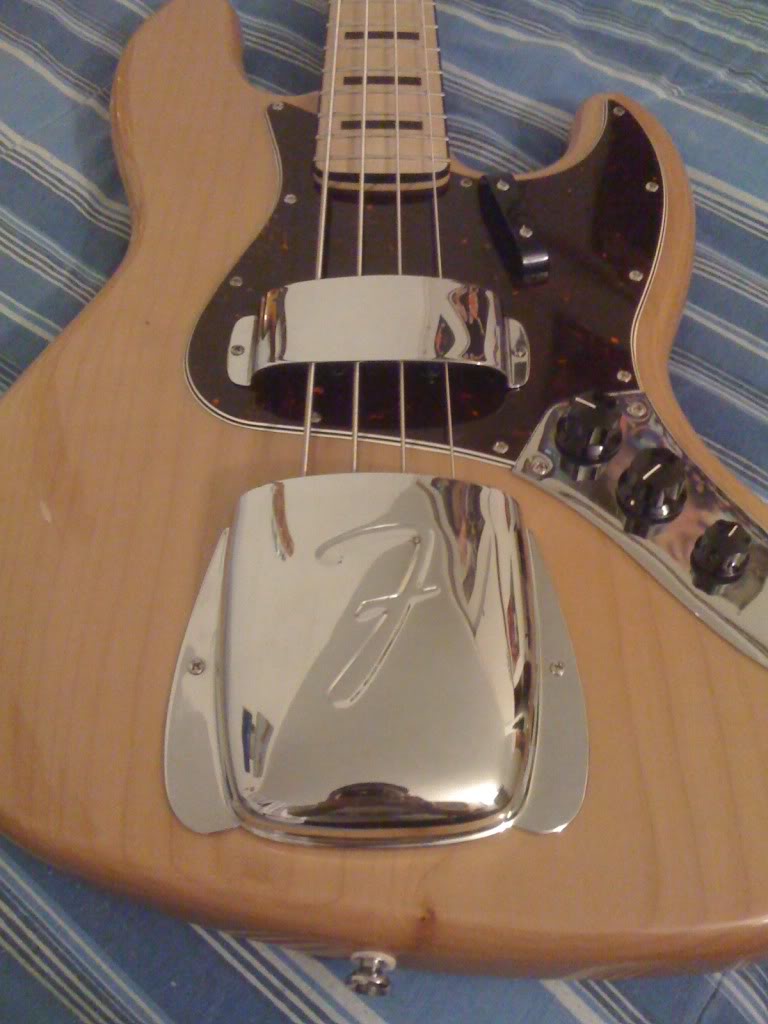

Now the pickup cover. Something funny that happened to me is that I noticed that when you start drilling the tortoise shell it smells really funny, like mint or something like that... :D


The thumbrest (tugbar)

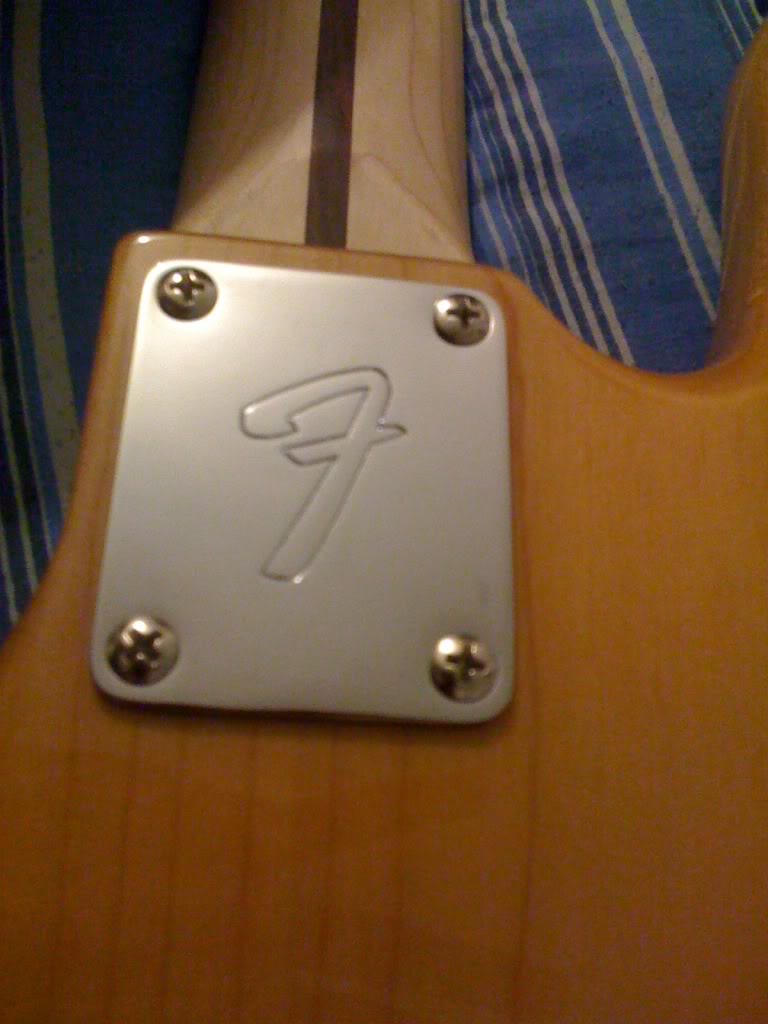

The "F" Neck plate.

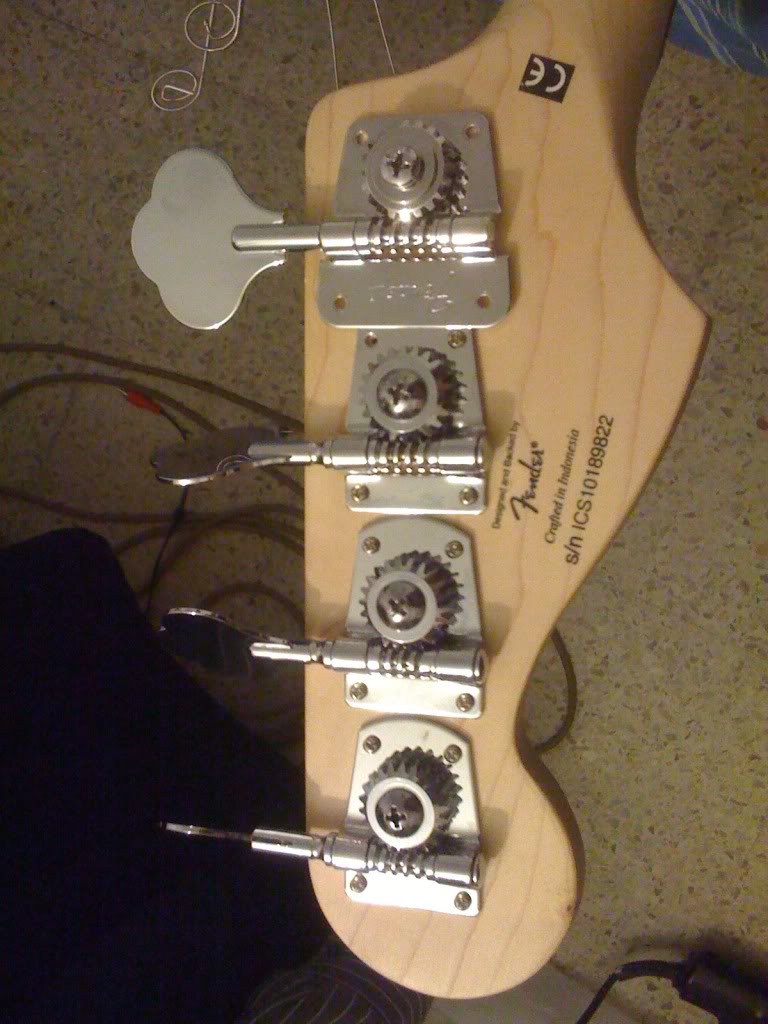

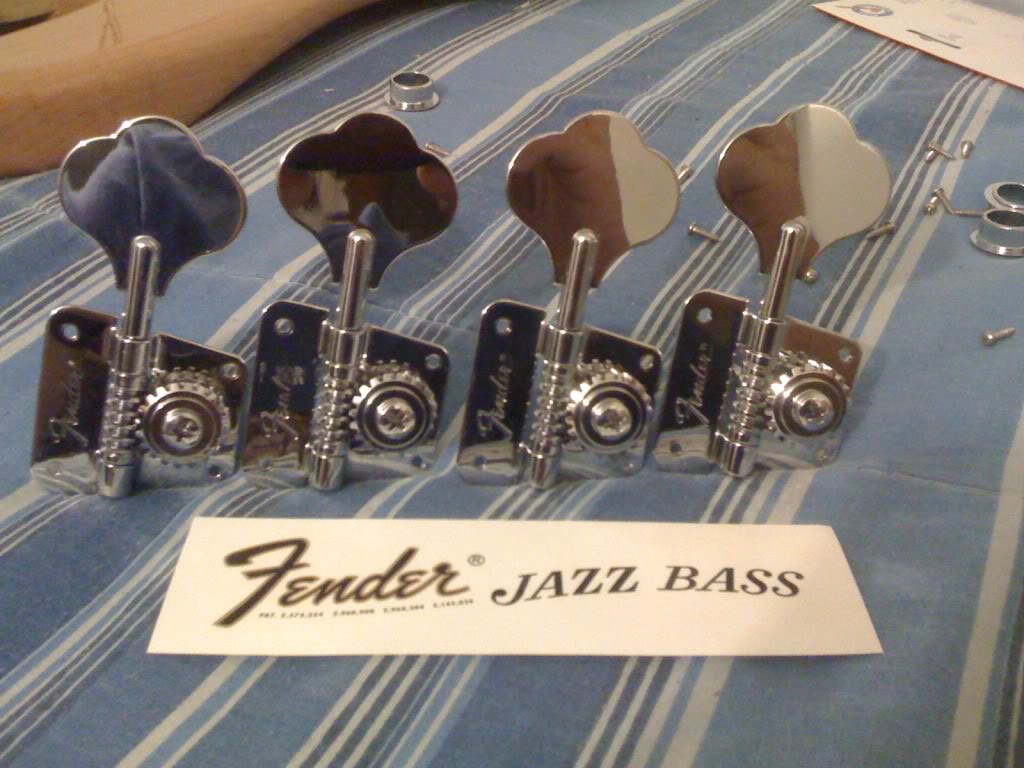

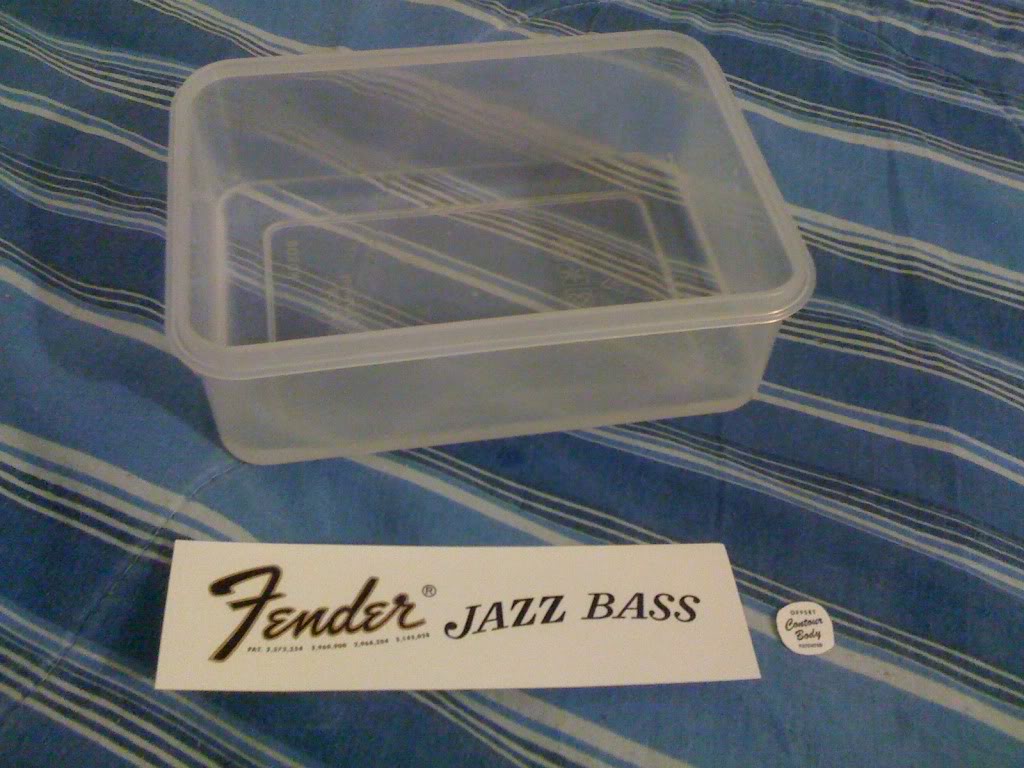

Now the Fender open frame 70's style tuners and the headstock decal.

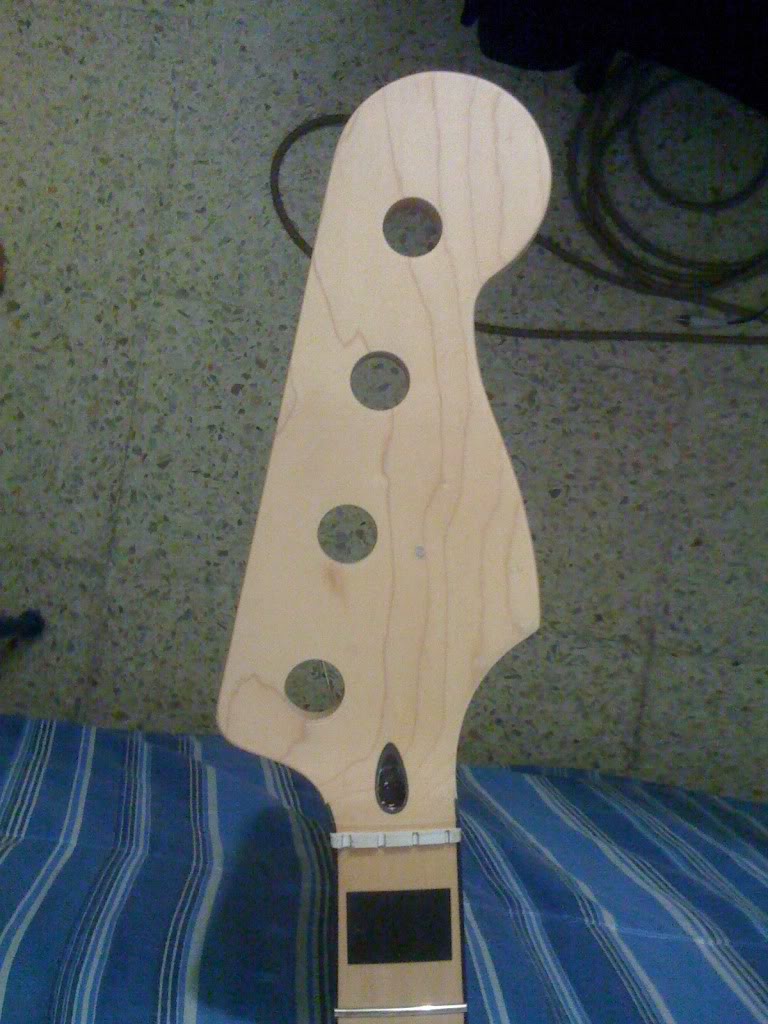

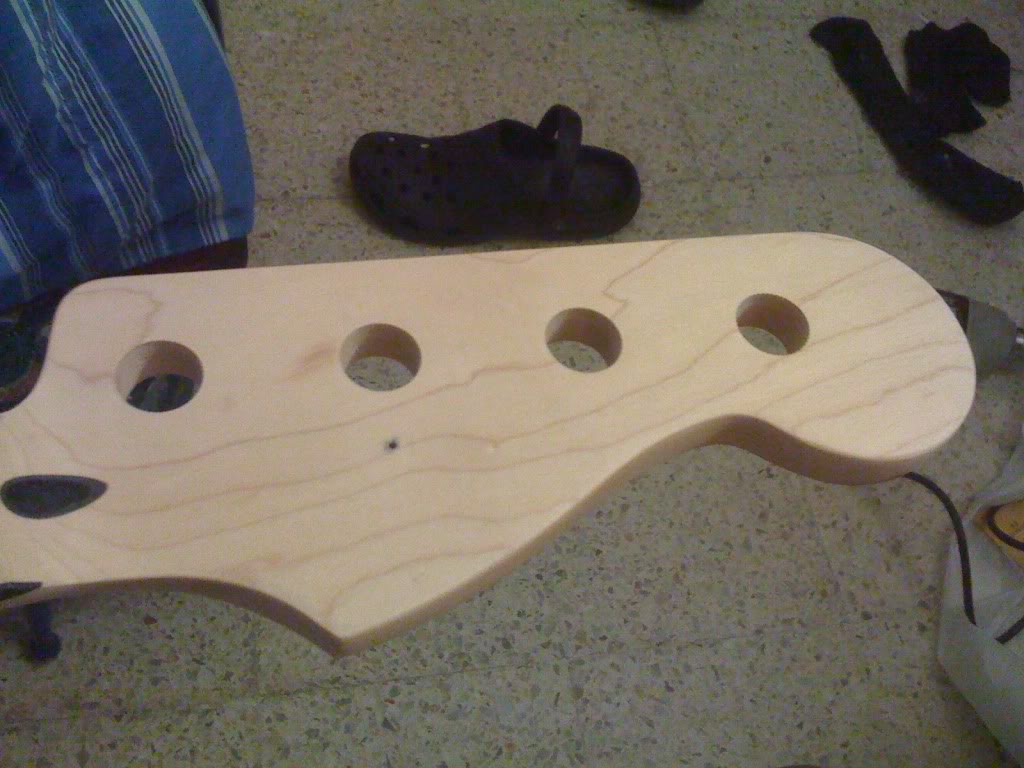

It was really easy to sand the Squier logo on the headstock, not even 3 minutes.

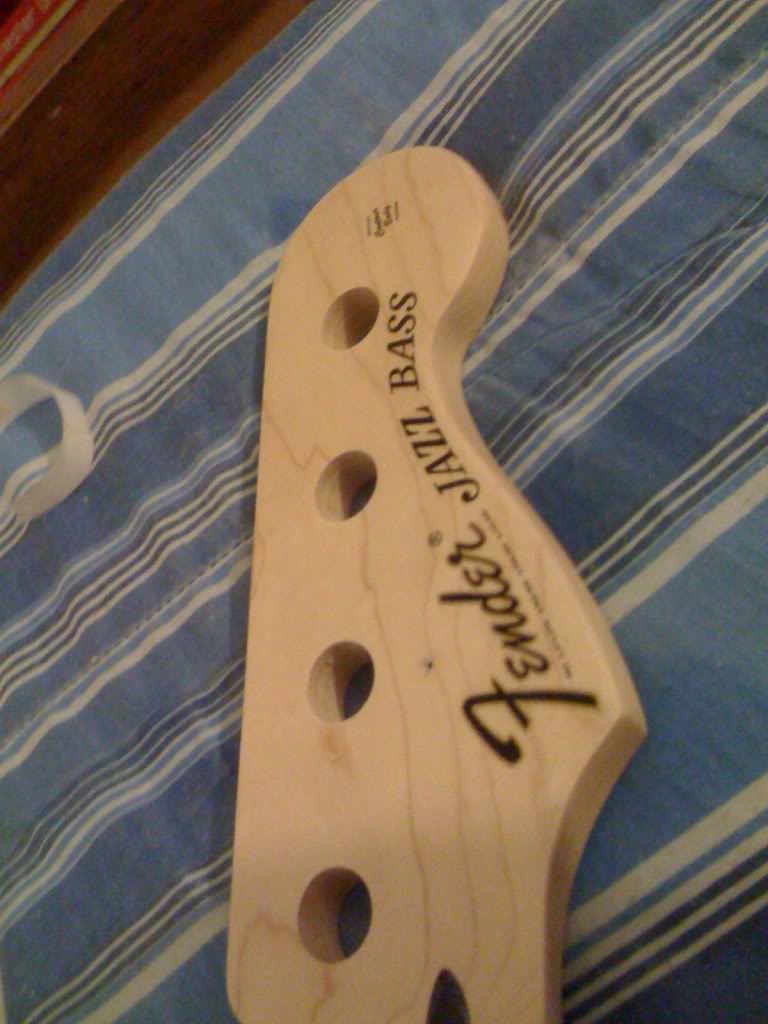

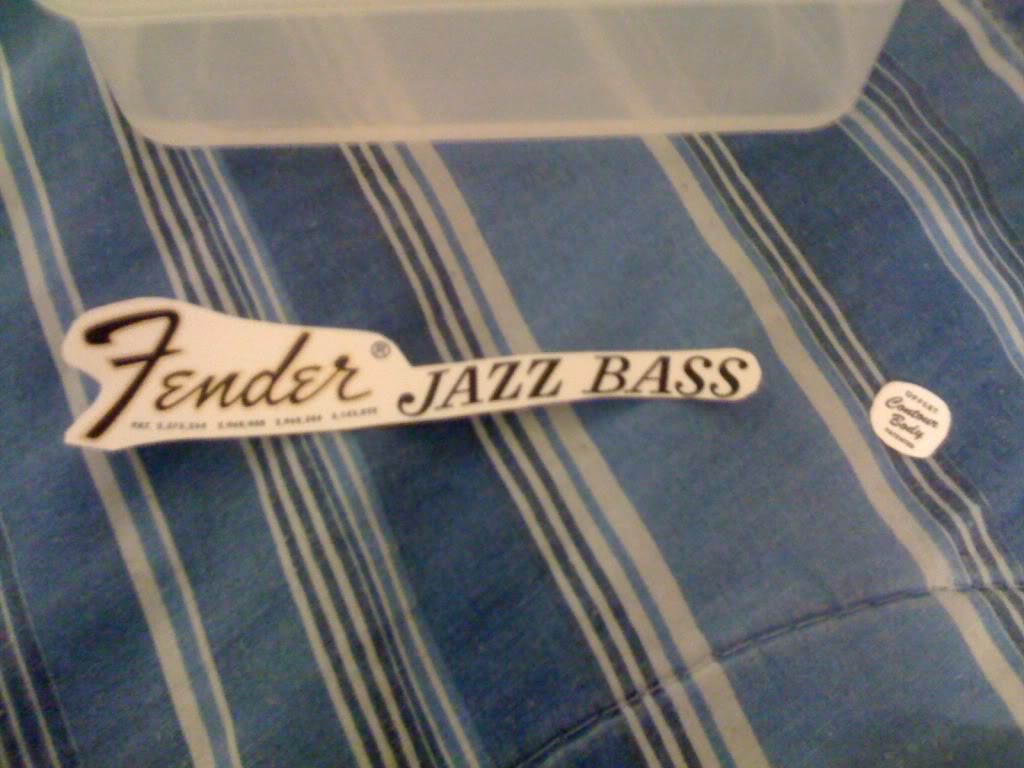

Then the decal installation... I failed on this step... broke the decal, then fixed it but I will get a new one.

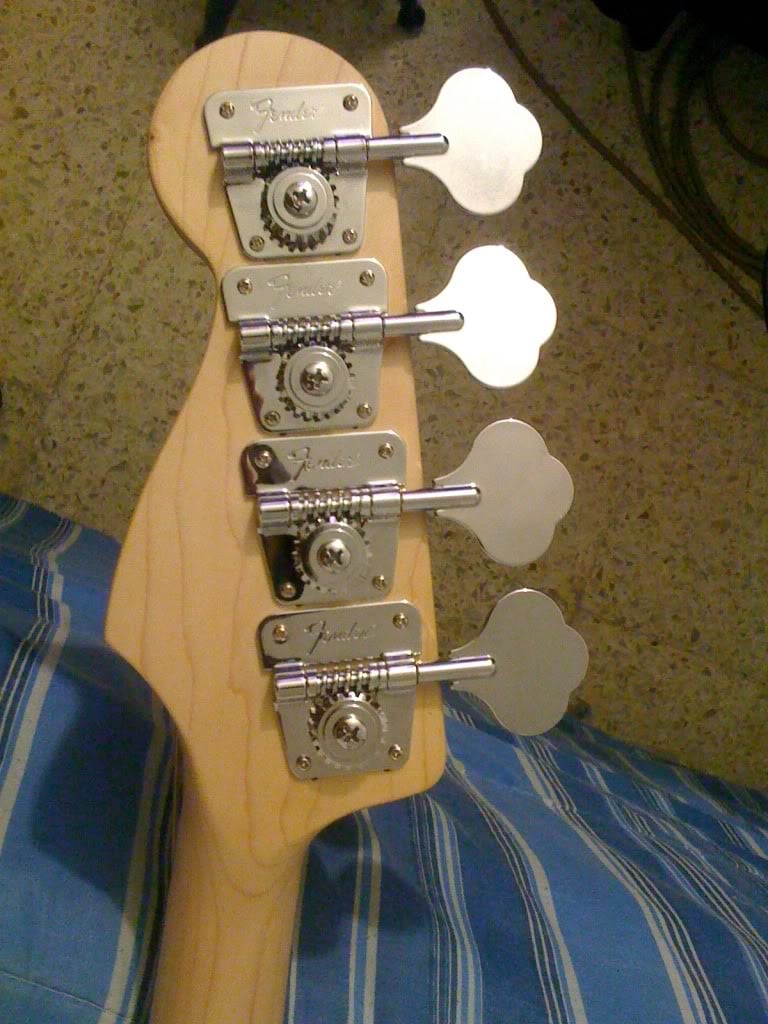

The new tuners... love them.

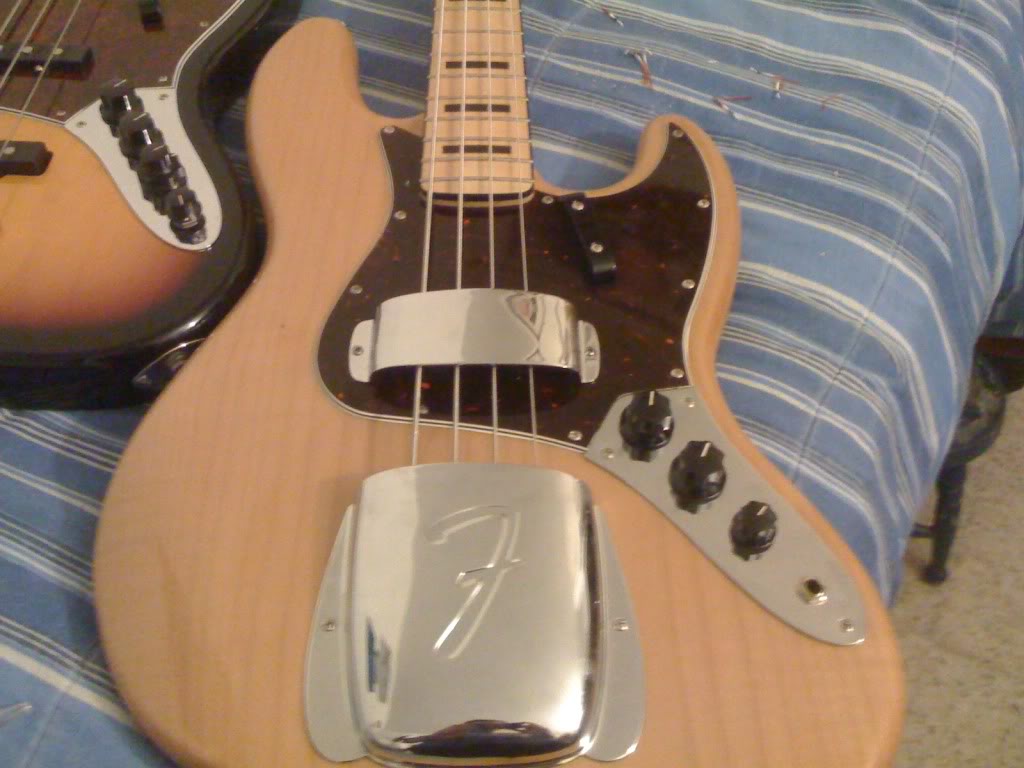

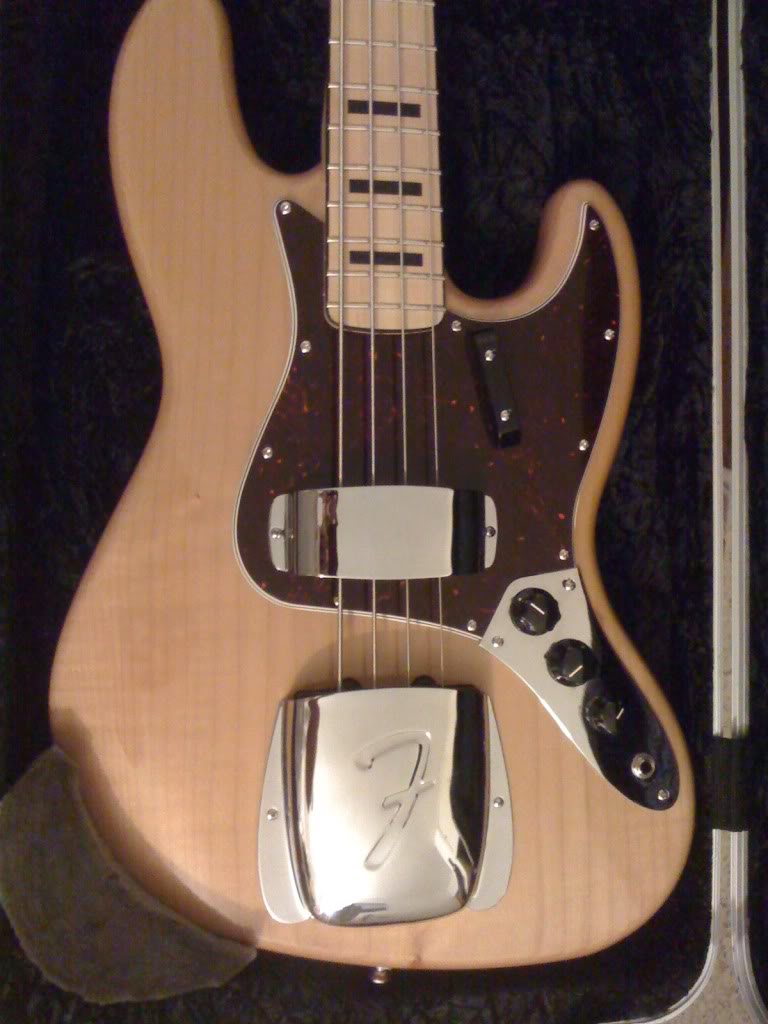

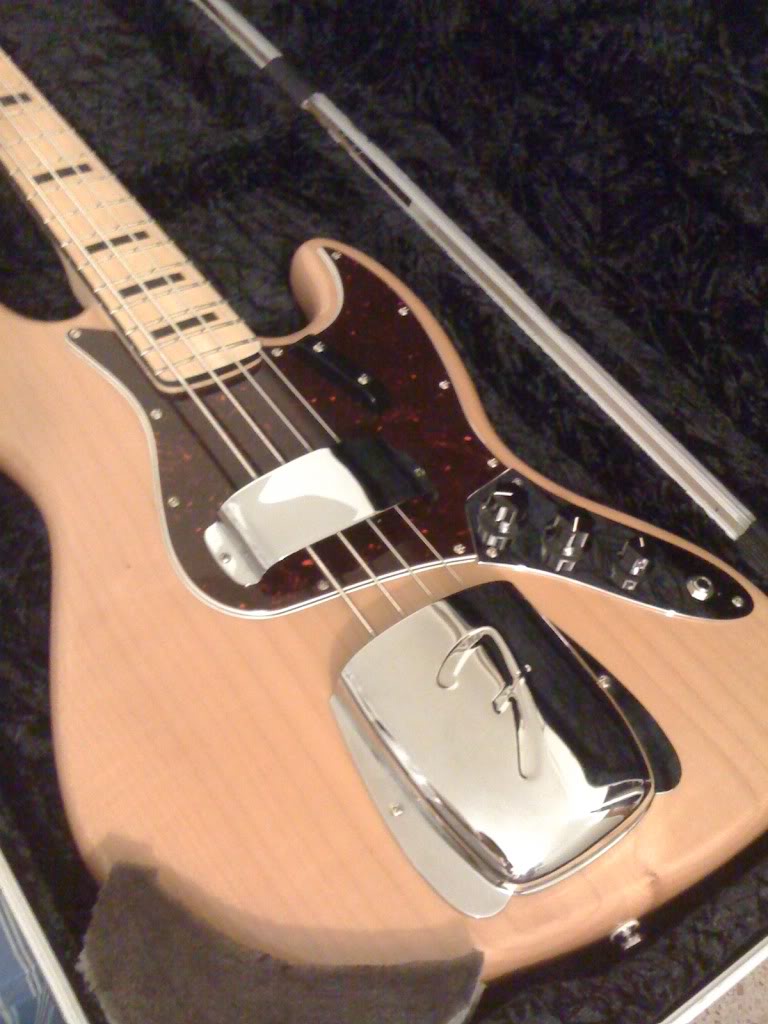

DONE.

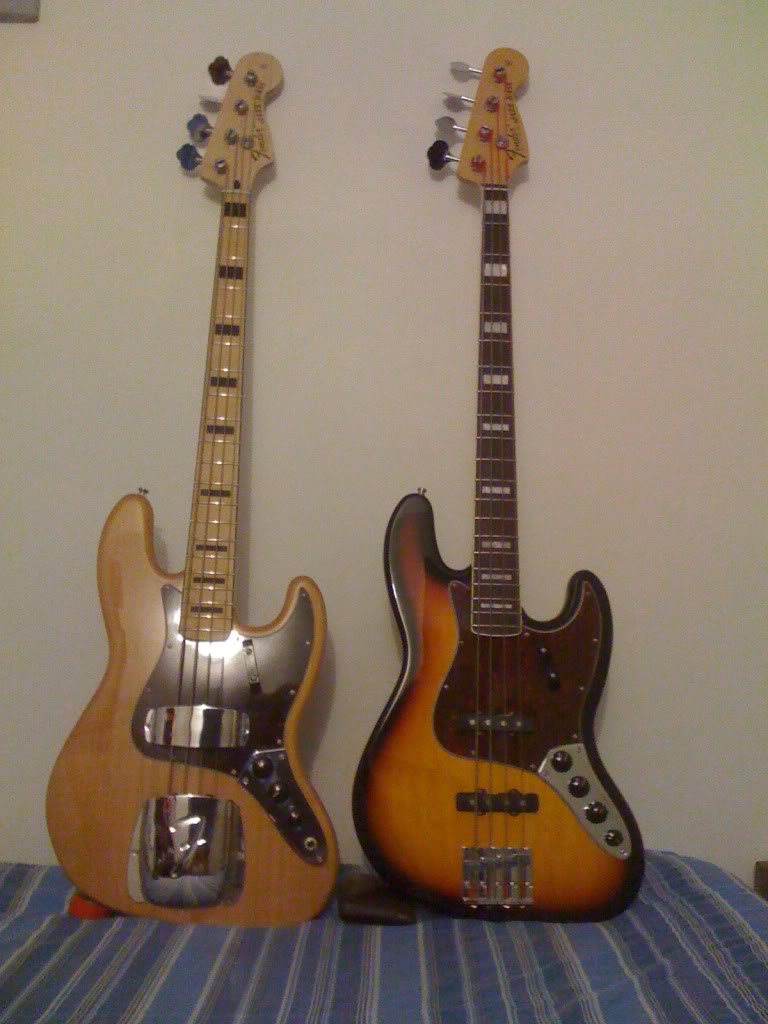

Here with my "Closet Classic Deluxe Jazz Bass" :D









Hope you like it.

#933
FWIW:::

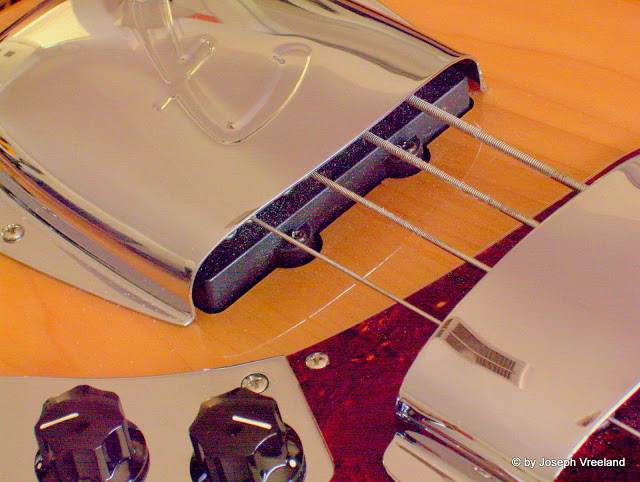

The Fender part number 099-202-2000 for a '62 Fender Jazz Bass will fit to the control panel at the 'VEE' a little wider so there's not so much difference in size where they meet.

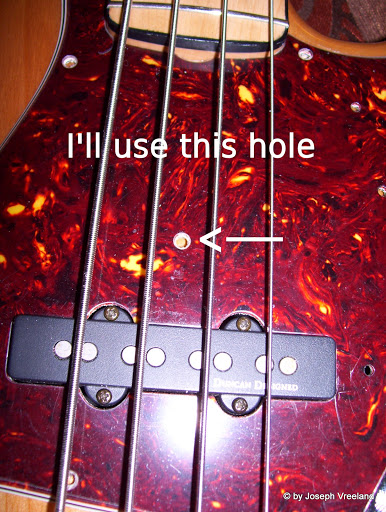

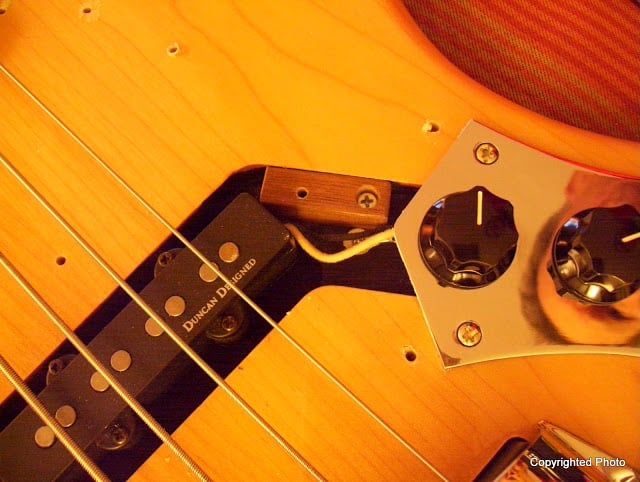

I also added a little 'Dutchman' under the PG inside the route to support the p'ups cover screw:::



You're lookin' good though.

#936
Webtroll said:
or at least have left the part on the back of the headstock. a full conversion kinda creeps me out a little, are there any ways to tell it's not real other than the lack of a SN# without pulling off the neck?
Click to expand...

1) the machine screws
2) the routing
3) the neck fingerboard finish
4) angle of the VEE at the control panel
5) shape of VEE - Fender is rounded, Squier is pointed
6) IF the bass is trying to emulate a '62, then there is the extra PG screw between the neck and the neck p'up::



FWIW: A very discriminating person can see the difference in the PG screw heads too - plus the Phillips pattern is just slightly different to the eye, and yards different to a Phillips screwdriver.

#937
Webtroll said:
or at least have left the part on the back of the headstock. a full conversion kinda creeps me out a little, are there any ways to tell it's not real other than the lack of a SN# without pulling off the neck?
Click to expand...

Yeah, I feel the same way. What happens when he sells it? You could totally rip someone off. Even if it's not you, someone, somewhere down the road is getting had.

#938
chump stain said:
Yeah, I feel the same way. What happens when he sells it? You could totally rip someone off. Even if it's not you, someone, somewhere down the road is getting had.
Click to expand...

Aw c'mon --- even a full-licensed idiot would know: 'no serial number - no sale'.

I 'converted' a Squier guitar for a friend, and I insisted that the serial numbers be removed or I would do it. He agreed and that, besides the factors I mentioned above in my last post would raise a serious red flag to almost anyone wanting to buy it later.

But hey - who'd sell their basses? I don't - won't and shan't. Not everyone is nefarious and a crook.

Besides, a REAL crook is gonna do a lot better job at a forgery and even the so-called experts get fooled sometimes.

#939
I knew the can of worms would be opened... And like SurferJoe46 says, there are a lot of ways to know it is a Squier.

The 11th screw in the middle is missing as I don't plan to drill it.
The Duncan Designed Pickups.
The routing.
The neck finish.
The trussrod access at the top of the neck and not at the heel.
The blocked & bound stuff is painted not incrusted.
And the list goes on...

Alright, let's point something out. I'm not trying to fool anyone, rip anyone off as I WILL NEVER SELL this bass. And if know a little about Fender instruments you can tell by miles it is not a "Fender", but a "tricked out" Squier VM.

Anyway as this is the endless "Fender topic" here on TalkBass I won't write more about that.

Thanks for the comments though... :D
